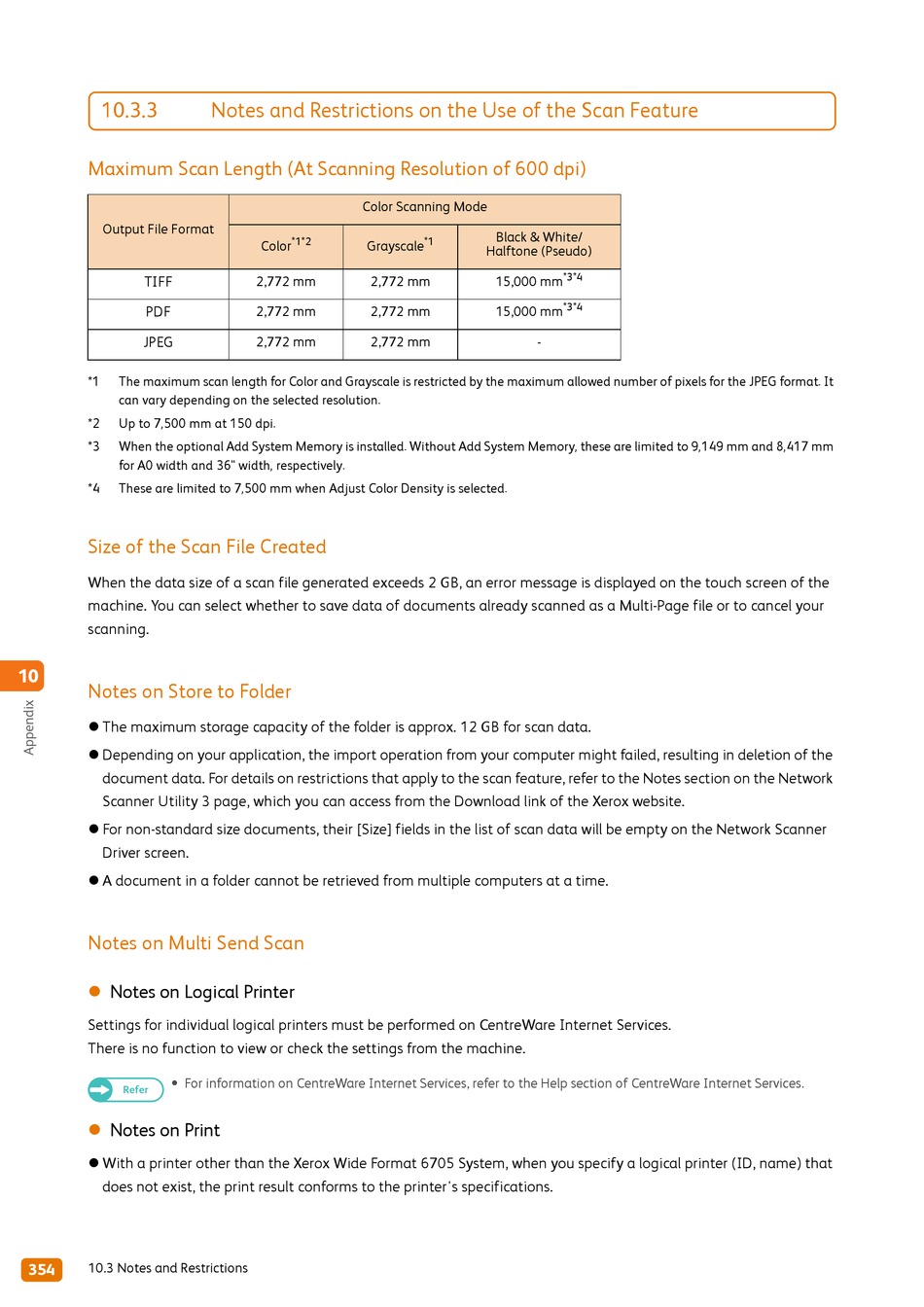

Notes And Restrictions On The Use Of The Scan Feature - Xerox Wide Format 6705 System User Manual

10.3.3
Maximum Scan Length (At Scanning Resolution of 600 dpi)
Output File Format
TIFF
PDF
JPEG
*1 The maximum scan length for Color and Grayscale is restricted by the maximum allowed number of pixels for the JPEG format. It
can vary depending on the selected resolution.
*2 Up to 7,500 mm at 150 dpi.
*3 When the optional Add System Memory is installed. Without Add System Memory, these are limited to 9,149 mm and 8,417 mm
for A0 width and 36" width, respectively.
*4 These are limited to 7,500 mm when Adjust Color Density is selected.
Size of the Scan File Created
When the data size of a scan file generated exceeds 2 GB, an error message is displayed on the touch screen of the
machine. You can select whether to save data of documents already scanned as a Multi-Page file or to cancel your
scanning.
10
Notes on Store to Folder
 The maximum storage capacity of the folder is approx. 12 GB for scan data.
 Depending on your application, the import operation from your computer might failed, resulting in deletion of the
document data. For details on restrictions that apply to the scan feature, refer to the Notes section on the Network
Scanner Utility 3 page, which you can access from the Download link of the Xerox website.
 For non-standard size documents, their [Size] fields in the list of scan data will be empty on the Network Scanner
Driver screen.
 A document in a folder cannot be retrieved from multiple computers at a time.
Notes on Multi Send Scan
Notes on Logical Printer

Settings for individual logical printers must be performed on CentreWare Internet Services.
There is no function to view or check the settings from the machine.
For information on CentreWare Internet Services, refer to the Help section of CentreWare Internet Services.

Refer
 Notes on Print
 With a printer other than the Xerox Wide Format 6705 System, when you specify a logical printer (ID, name) that
does not exist, the print result conforms to the printer's specifications.
10.3 Notes and Restrictions
354

Notes and Restrictions on the Use of the Scan Feature

Color Scanning Mode
*1*2
Color Grayscale
2,772 mm 2,772 mm
2,772 mm 2,772 mm
2,772 mm 2,772 mm
Black & White/
*1
Halftone (Pseudo)
*3*4
15,000 mm
*3*4
15,000 mm
-
