1.1

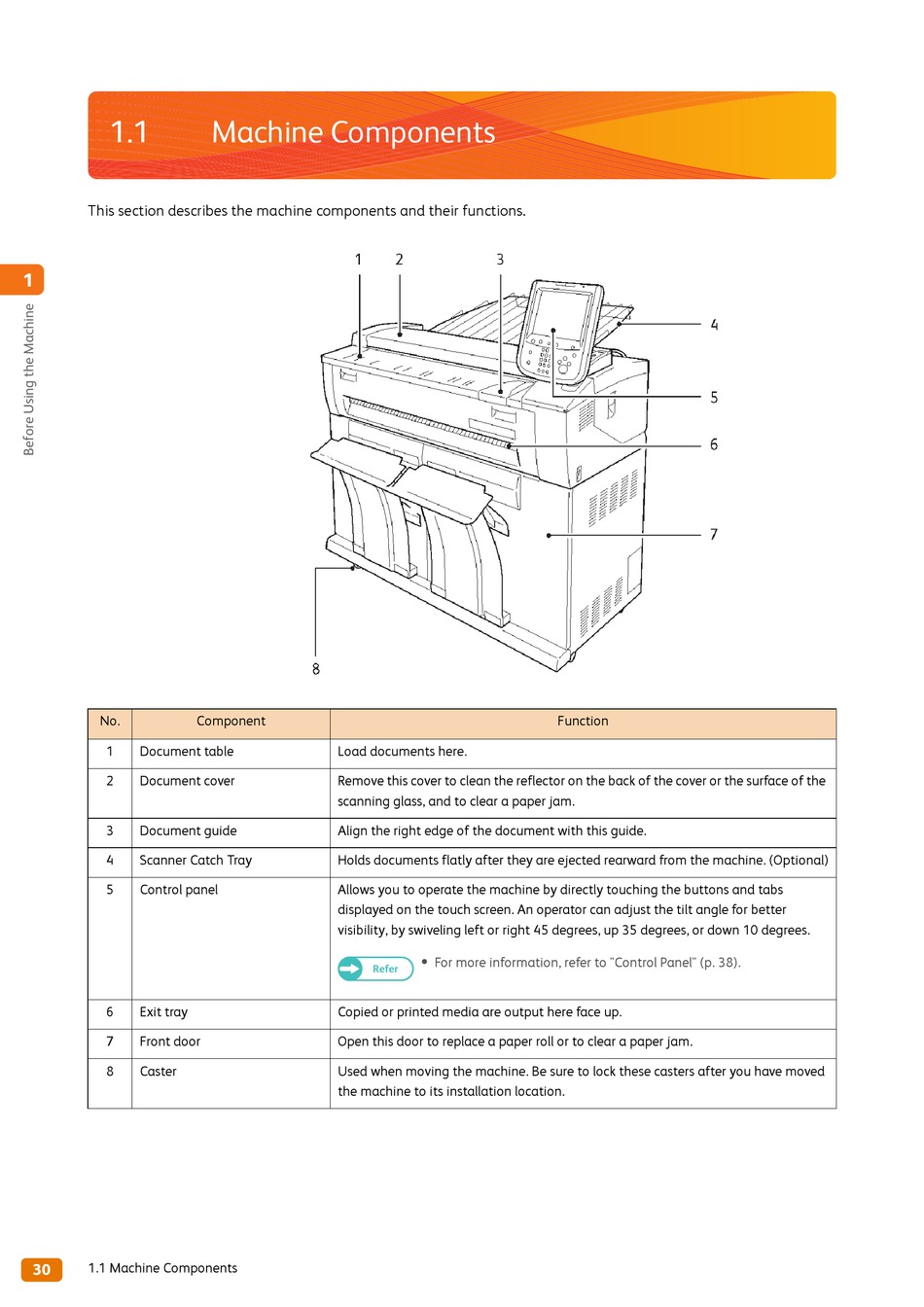

This section describes the machine components and their functions.
1
No.
Component
1
Document table
2
Document cover
3
Document guide
4
Scanner Catch Tray
5
Control panel
6
Exit tray
7
Front door
8
Caster
1.1 Machine Components
30
Machine Components
Load documents here.
Remove this cover to clean the reflector on the back of the cover or the surface of the
scanning glass, and to clear a paper jam.
Align the right edge of the document with this guide.
Holds documents flatly after they are ejected rearward from the machine. (Optional)
Allows you to operate the machine by directly touching the buttons and tabs
displayed on the touch screen. An operator can adjust the tilt angle for better
visibility, by swiveling left or right 45 degrees, up 35 degrees, or down 10 degrees.
Refer
Copied or printed media are output here face up.
Open this door to replace a paper roll or to clear a paper jam.
Used when moving the machine. Be sure to lock these casters after you have moved
the machine to its installation location.
Function
For more information, refer to "Control Panel" (p. 38).
