2.13.3

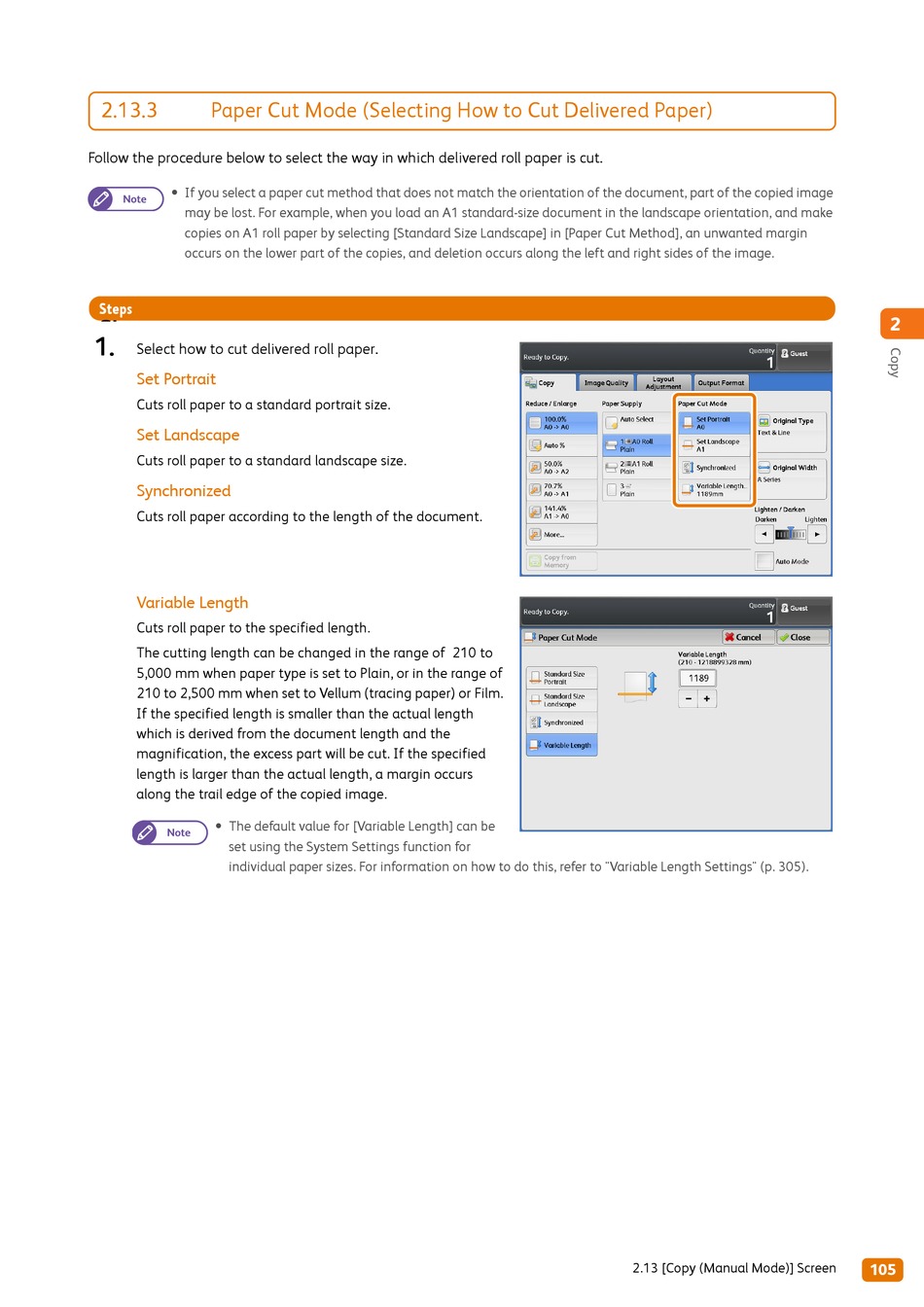

Paper Cut Mode (Selecting How to Cut Delivered Paper)

Follow the procedure below to select the way in which delivered roll paper is cut.
If you select a paper cut method that does not match the orientation of the document, part of the copied image

Note
may be lost. For example, when you load an A1 standard-size document in the landscape orientation, and make
copies on A1 roll paper by selecting [Standard Size Landscape] in [Paper Cut Method], an unwanted margin
occurs on the lower part of the copies, and deletion occurs along the left and right sides of the image.
Steps
St
1.
Select how to cut delivered roll paper.
Set Portrait
Cuts roll paper to a standard portrait size.
Set Landscape
Cuts roll paper to a standard landscape size.
Synchronized
Cuts roll paper according to the length of the document.
Variable Length
Cuts roll paper to the specified length.
The cutting length can be changed in the range of 210 to
5,000 mm when paper type is set to Plain, or in the range of
210 to 2,500 mm when set to Vellum (tracing paper) or Film.
If the specified length is smaller than the actual length
which is derived from the document length and the
magnification, the excess part will be cut. If the specified
length is larger than the actual length, a margin occurs
along the trail edge of the copied image.
The default value for [Variable Length] can be

Note
set using the System Settings function for
individual paper sizes. For information on how to do this, refer to "Variable Length Settings" (p. 305).
