Page 1: User Guide

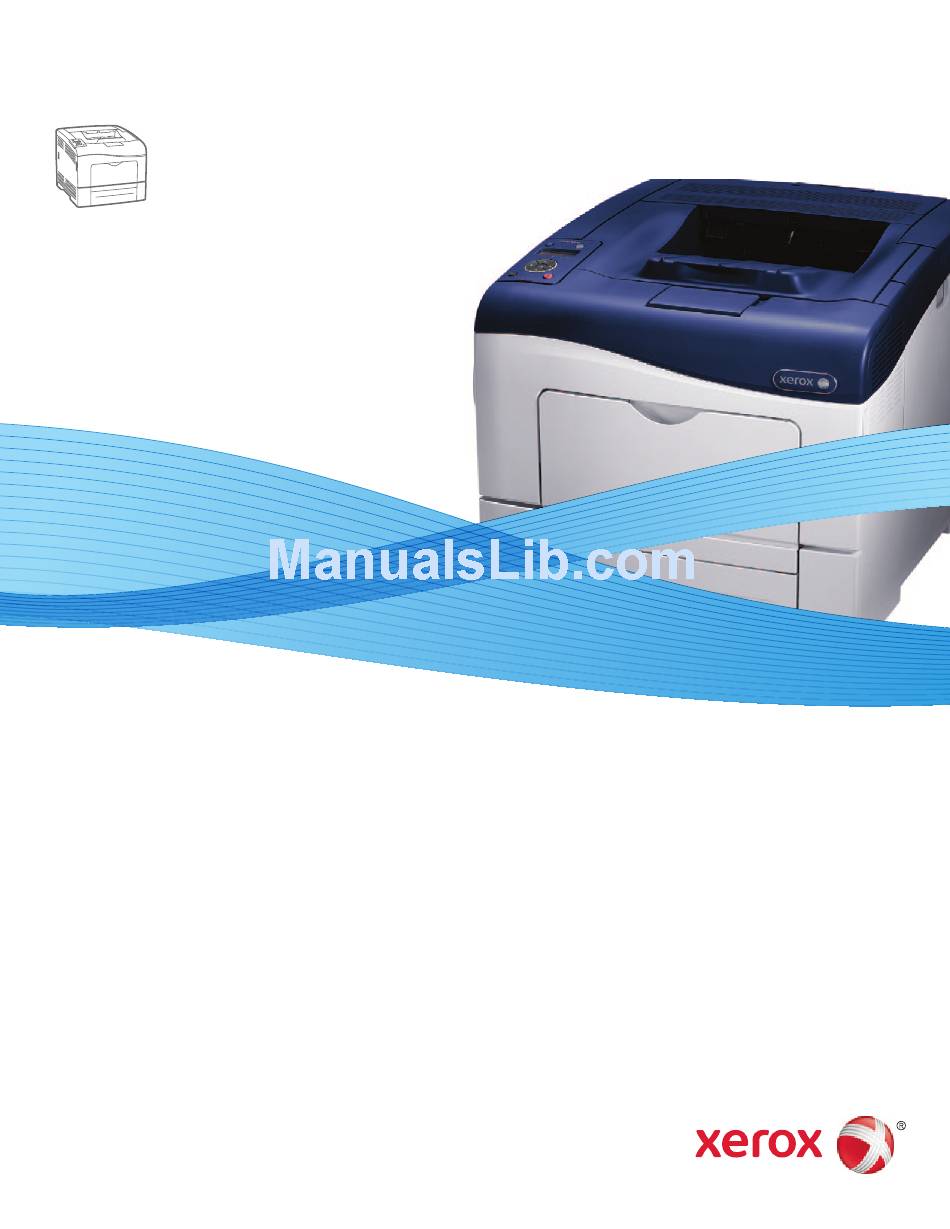

Xerox Phaser 6600 Color Printer Imprimante couleur Xerox Phaser 6600 ® ® User Guide Guide d'utilisation Italiano Svenska Användarhandbok Čeština Uživatelská příručka Guida per l’utente Deutsch Dansk Betjeningsvejledning Polski Przewodnik użytkownika Benutzerhandbuch Suomi Español Guía del usuario Käyttöopas Magyar Felhasználói útmutató...
Page 2 © 2013 Xerox Corporation. All rights reserved. Unpublished rights reserved under the copyright laws of the United States. Contents of this publication may not be reproduced in any form without permission of Xerox Corporation. Copyright protection claimed includes all forms of matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as styles, templates, icons, screen displays, looks, and so on.
Page 3: Table Of Contents
Contents Safety Electrical Safety ......................... 10 General Guidelines ...................... 10 Power Cord ........................10 Emergency Turn Off ..................... 11 Telephone Line Cord ....................11 Laser Safety ......................... 12 Operational Safety ......................13 Operational Guidelines ....................13 Ozone Release ......................13 Printer Location ......................
Page 4 Enabling the Proxy Server .................... 75 Validate DNS Settings and Enable SSL ............... 75 Registering with the Xerox Communication Server ............76 Setting Up Email Notifications for Billing Meter Read Alerts ......... 76 Setting Up Email Notifications for Supplies Data Send Alerts ........77 Installing the Software ......................
Page 5 Contents Installing the Print Drivers for a Windows USB Printer..........79 Installing Drivers and Utilities for Macintosh OS X Version 10.5 and Later ....79 Installing Drivers and Utilities for UNIX and Linux ............80 Other Drivers ........................ 81 Installing the Printer as a Web Service on Devices ............81 Paper and Media Supported Paper ........................
Page 6 Contents Defining Custom Paper Sizes ..................113 Creating and Saving Custom Paper Sizes ..............113 Printing on Custom Paper Sizes ................. 114 Maintenance Cleaning the Printer ......................116 General Precautions ....................116 Cleaning the Exterior ....................116 Cleaning the Interior ....................117 Adjustments and Maintenance Procedures ..............
Page 7 Contents Clearing Paper Jams ....................148 Troubleshooting Paper Jams ..................157 Print-Quality Problems ....................159 Getting Help ........................166 Control Panel Messages .................... 166 Using the Integrated Troubleshooting Tools ............... 167 Online Support Assistant .................... 167 Information Pages ...................... 167 More Information ......................
Page 8 Contents Material Safety Data Sheets..................... 184 Recycling and Disposal All Countries ........................186 North America ........................187 European Union ....................... 188 Domestic/Household Environment ................188 Professional/Business Environment ................188 Collection and Disposal of Equipment and Batteries ..........189 Battery Symbol Note ....................189 Battery Removal ......................
Page 9: Safety
Environmental, Health, and Safety Contact Information ............17 Your printer and the recommended supplies have been designed and tested to meet strict safety requirements. Attention to the following information ensures the continued safe operation of your ® Xerox printer. Phaser 6600 Color Printer User Guide...
Page 10: Electrical Safety
Safety Electrical Safety This section includes: • General Guidelines....................... 10 • Power Cord .......................... 10 • Emergency Turn Off ......................11 • Telephone Line Cord ......................11 • Laser Safety ......................... 12 General Guidelines WARNINGS: • Do not push objects into slots or openings on the printer. Touching a voltage point or shorting out a part could result in fire or electrical shock.
Page 11: Emergency Turn Off
Emergency Turn Off If any of the following conditions occur, turn off the printer immediately and disconnect the power cord from the electrical outlet. Contact an authorized Xerox service representative to correct the problem if: • The equipment emits unusual odors or makes unusual noises.
Page 12: Laser Safety
Safety Laser Safety This printer complies with laser product performance standards set by governmental, national, and international agencies and is certified as a Class 1 Laser Product. The printer does not emit hazardous light because the beam is totally enclosed during all modes of customer operation and maintenance.
Page 13: Operational Safety
Ozone is heavier than air and is not produced in amounts large enough to harm anyone. Install the printer in a well-ventilated room. For more information in the United States and Canada, go to www.xerox.com/environment. In other ®...
Page 14: Printer Supplies
Xerox supplies not specified for this printer. The Total Satisfaction Guarantee is available in the United States and Canada. Coverage could vary outside these areas. Please contact your Xerox representative for details. Phaser 6600 Color Printer User Guide...
Page 15: Maintenance Safety
• Do not use aerosol cleaners. Clean with a dry lint-free cloth only. • ® Do not burn any consumables or routine maintenance items. For information on Xerox supplies recycling programs, go to www.xerox.com/gwa. Phaser 6600 Color Printer User Guide...
Page 16: Printer Symbols
Safety Printer Symbols Symbol Description Warning: Indicates a hazard which, if not avoided, could result in death or serious injury. Caution: Indicates a mandatory action to take in order to avoid damage to the property. Hot surface on or in the printer. Use caution to avoid personal injury. Do not burn the item.
Page 17: Environmental, Health, And Safety Contact Information
Safety Environmental, Health, and Safety Contact Information ® For more information on Environment, Health, and Safety in relation to this Xerox product and supplies, contact the following customer help lines: United States: 1-800 828-6571 Canada: 1-800 828-6571 Europe: +44 1707 353 434 For product safety information in the United States, go to www.xerox.com/environment.
Page 19: Features
Features This chapter includes: • Parts of the Printer ....................... 20 • Energy Saver Mode ......................24 • Information Pages ........................ 25 • Administrative Features ......................26 • More Information ........................28 Phaser 6600 Color Printer User Guide...
Page 20: Parts Of The Printer
Features Parts of the Printer This section includes: • Front View ..........................20 • Rear View ..........................21 • Internal Parts ........................21 • Control Panel ........................21 Front View 1. Tray 2 (optional) 4. Control Panel 2. Tray 1 5.
Page 21: Rear View
Features Rear View 1. Duplex Unit 6. Control Board 2. Transfer Roller 7. Left Side Door 3. Fuser 8. Ethernet Connection 4. Power Connector 9. Wireless Network Adapter Port 5. Rear Cover 10. USB Port Internal Parts 1. Front Cover 4.
Page 22 Features • Displays the current operating status of the printer. • Provides access to print features. • Provides access to reference materials. • Provides access to administrative and maintenance menus. • Prompts you to load paper, replace supplies, and clear jams. •...
Page 23 Features Error Indicator • Lights red to indicate an error condition or warning that requires your attention. • Blinks red when an error occurs that requires technical support. 10. Ready indicator • Lights green when the printer is ready to receive data. •...
Page 24: Energy Saver Mode
Features Energy Saver Mode You can set the time the printer spends idle in ready mode before the printer transitions to a lower power level. Exiting Energy Saver Mode The printer automatically cancels Energy Saver mode when it receives data from a connected computer.
Page 25: Information Pages
Features Information Pages Your printer has a printable set of information pages. These include configuration and font information, demonstration pages, and more. Configuration Report The Configuration Report lists printer information such as default settings, installed options, network settings including IP address, and font settings. Use the information on this page to help you configure network settings for your printer, and to view page counts and system settings.
Page 26: Administrative Features
Features Administrative Features Finding the IP Address of the Printer You can view the IP address of your printer on the Configuration Report. IPv4 and IPv6 address information is located in the Network Setup section of the Configuration Report under IPv4 and IPv6. CentreWare Internet Services CentreWare Internet Services is the administration and configuration software installed on the embedded Web server in the printer.
Page 27: Meter Readings
Features At your computer, open a Web browser, type the IP address of the printer in the address field, then press Enter or Return. Note: If you do not know the IP address of your printer, see Finding the IP Address of Your Printer on page 26.
Page 28: More Information
You can obtain more information about your printer from these sources: Resource Location Installation Guide Packaged with the printer. Other documentation for your printer www.xerox.com/office/6600docs Recommended Media List United States: www.xerox.com/paper European Union: www.xerox.com/europaper Technical support information for your printer;...
Page 29: Installation And Setup
Configuring Secure Settings Using the Control Panel ............71 • Configuring Smart eSolutions ....................74 • Installing the Software ......................78 See also: Installation Guide packaged with your printer. Online Support Assistant at www.xerox.com/office/6600support Phaser 6600 Color Printer User Guide...
Page 30: Installation And Setup Overview
Routers, network hubs, network switches, modems, Ethernet cables, and USB cables are not included with your printer and must be purchased separately. Xerox recommends an Ethernet connection because it is typically faster than a USB connection, and it provides access to CentreWare Internet Services.
Page 31: Selecting A Location For The Printer
Installation and Setup Selecting a Location for the Printer Select a dust-free area with temperatures from 10–32°C (50–90°F), and relative humidity 15–85%. Note: Sudden temperature fluctuations can affect print quality. Rapid heating of a cold room can cause condensation inside the printer, directly interfering with image transfer. Place the printer on a level, solid, non-vibrating surface with adequate strength for the weight of the printer.
Page 32: Connecting The Printer
Installation and Setup Connecting the Printer This section includes: • Selecting a Connection Method .................... 32 • Connecting to a Computer Using USB ................. 32 • Connecting to a Wired Network .................... 33 • Connecting to a Wireless Network ..................33 Selecting a Connection Method The printer can be connected to your computer using a USB cable or an Ethernet cable.
Page 33: Connecting To A Wired Network
Installation and Setup To connect the printer to the computer using a USB cable: Ensure that the printer is turned off. Connect the B end of a standard A/B USB 2.0 cable to the USB Port on the back of the printer. Attach the power cord and then plug in the printer and turn it on.
Page 34 Installation and Setup Turn off the printer. Remove the packaging from the Wireless Network Adapter. Follow the installation sheet and install the Wireless Network Adapter on the printer. Note: When the Wireless Network Adapter is installed, remove it only as needed and after reading the instructions for removing the Wireless Network Adapter.
Page 35 Installation and Setup Removing the Wireless Network Adapter Turn off the printer. Unscrew the thumbscrew on the back of the left door, then open the left door. Locate the plastic latch release on the Wireless Network Adapter protruding through the back of the chassis.
Page 36 Installation and Setup Connecting to a Network with a Wi-Fi Protected Setup Wi-Fi Protected Setup (WPS) is a network standard for setting up a wireless network. The WPS protocols allow you with no wireless network experience to set up devices in a secure wireless network.
Page 37 Installation and Setup To connect to a WPS wireless network using the PIN method: Note: The wireless router must be connected and properly configured for the network before you install the printer. At your computer, open the router control panel, then select Add WPS Client. For details, see your router documentation.
Page 38 Installation and Setup To record the network information from the wireless router or access point: On your computer, use your Web browser to open the control panel for the wireless router. Click Wireless Settings. Record the following information. The network name and passphrase are case sensitive. Ensure that you record them exactly as they appear in the wireless router control panel.
Page 39 Installation and Setup To connect to a wireless network manually: At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons. Navigate to Admin Settings, then press OK. Navigate to Network Setup, then press OK. Navigate to Wi-Fi Setup, then press OK.
Page 40 Installation and Setup To connect to a wireless network manually using the CentreWare Internet Services: At your computer, open a Web browser, type the IP address of the printer in the address field, then press Enter or Return. Note: If you do not know the IP address of your printer, see Finding the IP Address of Your Printer on page 26.
Page 41 Installation and Setup Open the Printer Setup Utility. At the Select Configuration screen, select Wi-Fi Configuration, then click Next. At Select the current connection to printer screen, select the connection type the printer is currently using. Click Next. From the Access Point list, select the SSID for the network to which you wish to connect. If the desired network does not appear in the list, select Input the SSID directly, then enter the network name in the SSID field.
Page 42 Installation and Setup Setting Up the Printer for Wireless LAN WPA-Enterprise WPA-Enterprise Encryption is supported only when Infrastructure is selected as the Network Type in the Wi-Fi settings section. Note: To manage digital certificates, enable the HDD Data Encryption and HTTPS communication. Import the certificate to use with the wireless LAN.
Page 43: Configuring Network Settings
Installation and Setup Configuring Network Settings This section includes: • About TCP/IP and IP Addresses ..................43 • Assigning the Printer IP Address ..................44 About TCP/IP and IP Addresses Computers and printers primarily use TCP/IP protocols to communicate over an Ethernet network. Generally, Macintosh computers use either TCP/IP or the Bonjour protocol to communicate with a network printer.
Page 44: Assigning The Printer Ip Address
Installation and Setup Assigning the Printer IP Address This section includes: • Assigning the IP Address Automatically ................44 • Assigning the IP Address Manually ..................44 • Finding the IP Address of the Printer Using the Control Panel ..........46 •...
Page 45 11. Navigate to Gateway Address, then set the address. When finished, press OK. 12. Turn off the printer, then turn it on again. 13. To verify the new settings, print the Configuration Page. See also: Online Support Assistant at: www.xerox.com/office/6600support Phaser 6600 Color Printer User Guide...
Page 46 Installation and Setup Finding the IP Address of the Printer Using the Control Panel To install the print drivers for a network-connected printer, you need the IP address of your printer. You also need the IP address to access the settings of your printer through CentreWare Internet Services.
Page 47 Installation and Setup Click TCP/IP. In the IPv4 section of the page, make the desired changes. For example, to change the way the printer acquires the IP address, in the Get IP Address field, select a method from the drop-down list.
Page 48: Configuring General Setup Using Centreware Internet Services
Installation and Setup Configuring General Setup Using CentreWare Internet Services This section includes: • Viewing Printer Information ....................48 • Cloning the Printer Settings ....................48 • Configuring Email Alerts ....................... 49 • Configuring System Settings ....................50 • Configuring Clock Settings ....................50 •...
Page 49: Configuring Email Alerts
Installation and Setup At your computer, open a Web browser, type the IP address of the printer in the address field, then press Enter or Return. In CentreWare Internet Services, click Properties. To expand the menu, in the Properties pane, next to the General Setup folder, click the plus symbol (+).
Page 50: Configuring System Settings
Installation and Setup Configuring System Settings Use this menu to configure general settings of the printer. For example, time to Energy Saver mode, alarm settings, and so on. To configure the system settings: From the General Setup menu, click System Settings. Under General, enter values for the Energy Saver modes, then select values for the other selections from each of their lists.
Page 51: Setting Up A Proxy Server
Installation and Setup Setting Up a Proxy Server This feature allows you to set up and enable proxy services on the printer. You can enter your authentication login at the printer control panel, and access a set of features and options designed specifically for your business needs.
Page 52: Configuring Airprint
Installation and Setup Configuring AirPrint Use AirPrint to print directly from a wired or wireless device without using a print driver. AirPrint is a software feature that allows for driverless printing from Apple iOS-based mobile devices and Mac OS-based devices. AirPrint-enabled printers let you print directly from a Mac or from an iPhone, iPad, or iPod touch.
Page 53: Configuring General Setup Using The Control Panel
Installation and Setup Configuring General Setup Using the Control Panel This section includes: • Getting Information About the Printer ................... 53 • Using the Power On Wizard ....................53 • Configuring System Settings ....................54 • Configuring the Output Settings.................... 58 •...
Page 54: Configuring System Settings
Installation and Setup At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons. Navigate to Admin Settings, then press OK. Navigate to System Settings, then press OK. Navigate to Power On Wizard, then press OK. Navigate to Yes, then press OK.
Page 55 Installation and Setup Energy Saver Mode You can set the time the printer spends idle in ready mode before it automatically transitions to a lower power level. You can also turn off the automatic transition. Configuring the Energy Saver Settings At the printer control panel, press the Menu button.
Page 56 Installation and Setup Setting the Measurement Units At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons. Navigate to Admin Settings, then press OK. Navigate to System Settings, then press OK. Navigate to mm/inch, then press OK.
Page 57 Installation and Setup Setting the Auto Log Print At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons. Navigate to Admin Settings, then press OK. Navigate to System Settings, then press OK. Navigate to Auto Log Print, then press OK.
Page 58: Configuring The Output Settings
Installation and Setup Configuring the Output Settings Use this menu to configure settings concerning the output of the printer. To configure settings for the printer output: At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons. Navigate to Admin Settings, then press OK.
Page 59: Configuring Tray Settings
Turn off the printer, then turn it on again. ® Note: Not all Xerox printers support every option. Only available options appear on your printer. Configuring Tray Settings Use this menu to configure the paper trays for the paper size and type, set custom sizes, and turn the display prompts on and off.
Page 60 Installation and Setup At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons. Navigate to Tray Settings, then press OK. To configure the Bypass Tray settings, navigate to Bypass Tray, then press OK. To select a paper or envelope size for this tray, navigate to Paper Size.
Page 61: Configuring Security Settings Using Centreware Internet Services
Installation and Setup Configuring Security Settings Using CentreWare Internet Services This section includes: • Opening the Security Menu ....................61 • Configuring Administrative Security Settings ................ 61 • Configuring Secure Settings ....................62 • Configuring the Host Access List ..................62 •...
Page 62: Configuring Secure Settings
Installation and Setup Configuring Secure Settings From the Security menu, click Secure Settings. To limit access to the control panel menus: Next to Panel Lock Set, select Enable. Enter a four-digit passcode, then re-enter the passcode. To allow download of firmware updates, next to Software Downloads, select Enable. To encrypt the data on the hard drive: Click the HDD Data Encryption link.
Page 63: Configuring Ipsec Settings
Installation and Setup For example, you can set up the host access list to do the following: • Accept printing from a specific network. • Reject printing from a particular network mask within that network. • Accept printing from one particular IP address within that network mask. In this example, the access list would look like the following table: Access List IP Address...
Page 64: Configuring 802.1X Settings
Installation and Setup At your computer, open a Web browser, type the IP address of the printer in the address field, then press Enter or Return. In CentreWare Internet Services, click Properties. In the Properties pane, to expand the menu, click the plus (+) symbol next to the Security folder. Click IPsec.
Page 65: Configuring Ssl Settings
Installation and Setup Configuring SSL Settings At your computer, open a Web browser, type the IP address of the printer in the address field, then press Enter or Return. In CentreWare Internet Services, click Properties. In the Properties pane, to expand the menu, click the plus (+) symbol next to the Security folder. Click SSL.
Page 66: Managing Certificates
Installation and Setup Managing Certificates This section includes: • About Security Certificates ....................66 • Overview of Setting Up Digital Certificates ................67 • Before You Begin ......................... 67 • Enabling HTTPS Communication ..................67 • Importing a Digital Certificate ....................68 •...
Page 67 Installation and Setup • Install a device certificate on the printer. Note: To enable HTTPS, create a self-signed Certificate from the SSL page in CentreWare Internet Services. • Install a copy of the CA certificate that was used to sign the device certificate of the printer on the other device.
Page 68 Installation and Setup 10. After the settings are changed, to restart the printer, click Restart Printer. 11. Enter the IP address of the printer in the address bar, then press the Enter key. 12. To display the SSL page, repeat steps 2, 3, and 4. 13.
Page 69 Installation and Setup Next to Certificate Purpose, select an option. Next to Certificate Order, select the order in which the certificates appear. To display the Certificate List page, click Display the List. Note: If the list includes more than 20 certificates, click Next to display the next page. Select the certificate to associate with the Certificate Purpose you selected in step 5.
Page 70 Installation and Setup Deleting a Digital Certificate At your computer, open a Web browser, type the IP address of the printer in the address field, then press Enter or Return. Click Properties. In the left navigation panel, scroll to Security, then select Certificate Management. For the certificate you want to delete, select the Category.
Page 71: Configuring Secure Settings Using The Control Panel
Installation and Setup Configuring Secure Settings Using the Control Panel This section includes: • Setting the Date and Time ....................71 • Setting the Panel Lock ......................72 • Configuring the Data Encryption Settings ................72 • Logging In at the Control Panel .................... 73 •...
Page 72: Setting The Panel Lock
Installation and Setup Setting the Panel Lock Use this setting to limit access to the Admin Menu. When enabled, access to the Admin Menu requires a password. At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons. Navigate to Admin Settings, then press OK.
Page 73: Logging In At The Control Panel
Installation and Setup Logging In at the Control Panel To enter numbers on the control panel, select an option: • To select a number, press the Up or Down arrow buttons. • To scroll quickly, hold down the Up or Down arrow buttons. •...
Page 74: Configuring Smart Esolutions
For details, see www.xerox.com/smartesolutions. MeterAssistant automatically counts all metered impressions printed on network printers, then submits them to Xerox. This process eliminates the need to collect and report meter read information manually. SuppliesAssistant monitors the remaining life of the toner or ink, and other printer consumables.
Page 75: Enabling The Proxy Server
If your network does not use a proxy server, next to Use Proxy Server, clear the Enabled box, then click Save Changes. Proceed to Register with Xerox Communication Server. If your network uses a proxy server, next to Use Proxy Server, select Enabled.
Page 76: Registering With The Xerox Communication Server
In the Registration Window, under Setup, click Register with Xerox Communication Server. In the Xerox Communication Server window, under Communication setup, next to Server Communication, select Enabled. Next to Transmission Time, enter the time for the printer to communicate with the Xerox Communication Server. Note: Enter the GMT time for the transmission time.
Page 77: Setting Up Email Notifications For Supplies Data Send Alerts
When Smart eSolutions is configured to communicate with Xerox, SuppliesAssistant also monitors the usage of consumables. The data reported to Xerox is used to replenish supplies. The printer can also send email alerts up to five email addresses for supplies administrators and key operators. Use this page to manage the email addresses and determine when the printer sends email notifications.
Page 78: Installing The Software
• UNIX and Linux: Your printer supports connection to various UNIX platforms through the network interface. For details, see www.xerox.com/office/6600drivers. Installing the Print Drivers for a Windows Network Printer Insert the Software and Documentation disc into the appropriate drive on your computer.
Page 79: Phaser 6600 Color Printer User Guide
Installing Drivers and Utilities for Macintosh OS X Version 10.5 and Later ® Install the Xerox print driver to access all features of your printer. To install the print driver software: Phaser 6600 Color Printer...
Page 80: Installing Drivers And Utilities For Unix And Linux
Services for UNIX Systems is a two part installation process. It requires the installation of a ® ® Xerox Services for UNIX Systems code package and a printer support package. The Xerox Services for UNIX Systems code package must be installed before installing the printer support package. Note: You must have root or superuser privileges to perform the UNIX print driver installation on your computer.
Page 81: Other Drivers
To begin downloading, click the Start button. ® Repeat steps a and b, then click the printer package for use with the Xerox Services for UNIX Systems package that you selected earlier. The second part of the driver package is ready for download.
Page 82 Installation and Setup At your computer, click Start, then select Devices and Printers. To launch the Add Device Wizard, click Add a Device. In the list of available devices, select the one you want to use, then click Next. Note: If the printer you want to use does not appear in the list, click the Cancel button.
Page 83: Paper And Media
Paper and Media This chapter includes: • Supported Paper ........................84 • Loading Paper ........................88 • Printing on Special Paper ..................... 94 Phaser 6600 Color Printer User Guide...
Page 84: Supported Paper
Your printer is designed to use various paper and other media types. To ensure the best print quality and to avoid jams, follow the guidelines in this section. ® For best results, use Xerox paper and media recommended for your printer. Recommended Media A list of paper and media recommended for your printer is available at: •...
Page 85: Paper That Can Damage Your Printer
Warranty, Service Agreement, or Xerox Total Satisfaction Guarantee ® does not cover damage caused by using unsupported paper or specialty media. The Xerox Total Satisfaction Guarantee is available in the United States and Canada. Coverage could vary outside these areas. Please contact your local representative for details.
Page 86: Supported Paper Types And Weights
Paper and Media Supported Paper Types and Weights Trays Paper Types Weights All Trays Hole Punched (60–90 g/m²) Colored Plain (75–105 g/m²) Letterhead Lightweight Cardstock (106–163 g/m²) Lightweight Glossy Cardstock Heavyweight Cardstock (164–216 g/m²) Heavyweight Glossy Cardstock Bypass Tray Labels Envelope Supported Standard Paper Sizes Tray...
Page 87: Supported Standard Paper Sizes For Automatic 2-Sided Printing
Paper and Media Supported Standard Paper Sizes for Automatic 2-Sided Printing European Standard Sizes North American Standard Sizes A4 (210 x 297 mm, 8.3 x 11.7 in.) Legal (216 x 356 mm, 8.5 x 14 in.) B5 (176 x 250 mm, 6.9 x 9.8 in.) Folio (216 x 330 mm, 8.5 x 13 in.) A5 (148 x 210 mm, 5.8 x 8.3 in.) Letter (216 x 279 mm, 8.5 x 11 in.)
Page 88: Loading Paper
Paper and Media Loading Paper This section includes: • Loading Paper in the Bypass Tray ..................88 • Configuring Trays 1 or 2 for the Paper Length ..............90 • Loading Paper in Trays 1 and 2.................... 91 Loading Paper in the Bypass Tray If the Bypass Tray is loaded with paper already, remove any paper that is a different size or type.
Page 89 Paper and Media Flex the sheets back and forth and fan them, then align the edges of the stack on a level surface. This procedure separates any sheets that are stuck together and reduces the possibility of jams. Note: To avoid jams and misfeeds, do not remove paper from its packaging until you are ready to use it.
Page 90: Configuring Trays 1 Or 2 For The Paper Length
Paper and Media Adjust the width guides until they touch the edges of the paper. If the control panel prompts you, verify the size and type on the screen. At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons. Navigate to Tray Settings, then press OK.
Page 91: Loading Paper In Trays 1 And 2
Paper and Media To extend the tray, hold the back of the tray with one hand. With the other hand, press the release latch at the front of the tray and pull the ends outward until they latch. To compress the tray for shorter paper, hold the back of the tray with one hand. With the other hand, press the release latch at the front of the tray, then push the ends inward until they latch.
Page 92 Paper and Media At the back of the paper tray, press the paper lift tray down until it locks. Adjust the paper length and width guides as illustrated. Flex the sheets back and forth and fan them, then align the edges of the stack on a level surface. This procedure separates any sheets that are stuck together and reduces the possibility of jams.
Page 93 Paper and Media Adjust the length and width guides to fit the paper. Slide the tray back into the printer. Push the tray in all the way. Notes: • If the tray does not go all the way in, ensure that the paper lift at the back of the tray is locked down.
Page 94: Printing On Special Paper
• Envelopes ..........................94 • Labels ..........................97 • Glossy Cardstock ......................... 98 To order paper or other media, contact your local reseller or visit www.xerox.com/office/6600supplies. See also: www.xerox.com/paper Recommended Media List (United States) www.xerox.com/europaper Recommended Media List (Europe) Envelopes You can print envelopes from the Bypass Tray only.
Page 95 Paper and Media Loading Envelopes in the Bypass Tray Open the Bypass Tray. Move the width guides to the edges of the tray. Note: If you do not load envelopes in the Bypass Tray right after they have been removed from the packaging, they can bulge.
Page 96 Paper and Media For Monarch or DL envelopes, do one of the following. If the envelopes wrinkle, try another option. • With the short edge going into the printer, flaps down, and flaps to the right. • With the print side up, flaps open and down, and the bottom of the envelope going into the printer.
Page 97: Labels
Paper and Media • With the print side up, flaps closed and down, and going into the printer. Note: When you load envelopes with the flaps open, in the print driver, select Portrait, Landscape, or Rotated Landscape, as needed, to have them print correctly. In the print driver, use Rotate Image 180 Degrees to flip the image, if needed.
Page 98: Glossy Cardstock
Paper and Media Loading Labels in the Bypass Tray Remove all paper from the tray. Load labels face up with the top of the page going into the printer. Adjust the width guides until they touch the edges of the paper. At the printer control panel, press the Menu button.
Page 99 Paper and Media Guidelines for Printing on Glossy Cardstock • Do not open sealed packages of glossy cardstock until you are ready to load them into the printer. • Leave glossy cardstock in the original wrapper, and leave the packages in the shipping carton until ready to use.
Page 101: Printing
Printing This chapter includes: • Printing Overview ....................... 102 • Selecting Printing Options ....................103 • Printing Features ........................ 106 • Using Custom Paper Sizes ....................113 Phaser 6600 Color Printer User Guide...
Page 102: Printing Overview
Select your printer from the list. ® Access the print driver settings by selecting Properties or Preferences for Windows, or Xerox Features for Macintosh. The title of the button can vary depending on your application. Modify the print driver settings as necessary, then click OK.
Page 103: Selecting Printing Options
Printing options, also called print driver software options, are specified as Printing Preferences in ® Windows, and Xerox Features in Macintosh. Printing options include settings for 2-sided printing, page layout, and print quality. Printing options that are set from Printing Preferences become the default setting.
Page 104 Printing For example, if you want to print on both sides of the paper for most jobs, specify 2-sided printing in Printing Preferences. To select default printing options: Navigate to the list of printers on your computer: • For Windows XP SP1 and later, click Start > Settings > Printers and Faxes. •...
Page 105: Macintosh Printing Options
With the document open in your application, click File > Print. Select your printer from the list. ® Select Xerox Features from the Copies & Pages menu. Select the desired printing options from the drop-down lists. Click Print to send the job to the printer.
Page 106: Printing Features
Printing Printing Features This section includes: • Printing on Both Sides of the Paper ..................106 • Orientation ......................... 107 • Selecting Paper Options for Printing ................... 108 • Printing Multiple Pages to a Single Sheet ................108 • Printing Booklets ........................ 109 •...
Page 107: Orientation
Printing 2-Sided Page Layout Options You can specify the page layout for 2-sided printing, which determines how the printed pages turn. These settings override the application page orientation settings. To make a 2-sided printing selection, on the Page Layout tab, use the arrow button in the bottom left corner of the preview pane.
Page 108: Selecting Paper Options For Printing
Printing On the Advanced tab, click Advanced Settings. Click Orientation. Select an option: • Portrait orients the paper so that the text and images print across the short dimension of the paper. • Landscape orients the paper so that the text and images print across the long dimension of the paper.
Page 109: Printing Booklets
Printing Printing Booklets With 2-sided printing, you can print a document in the form of a small booklet. Create booklets from any paper size that is supported for 2-sided printing. The driver automatically reduces each page image and prints four page images per sheet of paper, two page images on each side. The pages are printed in the correct order so that you can fold and staple the pages to create the booklet.
Page 110: Printing Watermarks
Printing To convert all color in the document to black and white or shades of gray, select Xerox Black and White Conversion. The printer provides the following color correction options: • Automatic Color applies the best color correction to text, graphics, and images. Xerox recommends this setting.
Page 111: Printing Mirror Images
Printing is cropped. If the original size is smaller than the output size, extra space appears around the page image. • Automatically Scale scales the document to fit the selected Output Paper Size. The scaling amount appears in the percentage box below the sample image. •...
Page 112 Printing To access the Walk-Up Features menu, click the Left arrow button. Navigate to Secure Print, then press OK. Navigate to your username, then press OK. To enter your passcode, use the arrow buttons, then press OK. Navigate to the desired job, then press OK. Select an option.
Page 113: Using Custom Paper Sizes
Printing Using Custom Paper Sizes This section includes: • Defining Custom Paper Sizes ..................... 113 • Creating and Saving Custom Paper Sizes ................113 • Printing on Custom Paper Sizes ..................114 The Phaser 6600 Color Printer prints on custom paper sizes that are within the minimum and maximum size range supported by the printer.
Page 114: Printing On Custom Paper Sizes
Printing In the application, click File > Page Setup. Click Paper Sizes, then select Manage Paper Sizes. To add a new size, in the Manage Paper Sizes window, click the plus sign (+). Double-click Untitled at the top of the window and type a name for the new custom size. Enter the height and width of the new custom size.
Page 115: Maintenance
Maintenance This chapter includes: • Cleaning the Printer ......................116 • Adjustments and Maintenance Procedures ................ 126 • Ordering Supplies ......................133 • Managing the Printer ......................136 • Moving the Printer ......................138 Phaser 6600 Color Printer User Guide...
Page 116: Cleaning The Printer
Maintenance Cleaning the Printer This section includes: • General Precautions ......................116 • Cleaning the Exterior ......................116 • Cleaning the Interior ......................117 General Precautions CAUTION: When cleaning your printer do not use organic or strong chemical solvents or aerosol cleaners.
Page 117: Cleaning The Interior
Maintenance • For stubborn stains, apply a small amount of mild detergent to the cloth and gently wipe the stain off. CAUTION: Do not spray detergent directly on the printer. Liquid detergent could enter the printer through a gap and cause problems. Never use cleaning agents other than water or mild detergent.
Page 118 Maintenance To unlock the waste cartridge, turn the waste cartridge lever 90-degrees counterclockwise. Grasp the handle of the waste cartridge, then pull it out. To prevent toner spills, keep the openings facing up. Notes: • Be careful not to spill toner when handling the waste cartridge. •...
Page 119 Maintenance Place the removed waste cartridge on a level surface. CAUTION: To avoid toner spills or malfunction, do not lay the waste cartridge on its side. Remove the cleaning rod from inside the printer. Insert the cleaning rod into one of the four cleaning holes until it clicks, then pull it out. Repeat this two more times.
Page 120 Maintenance Repeat the procedure for the holes in the other three slots. Return the cleaning rod to its original location. 10. Reinsert the waste cartridge. Note: If the waste cartridge does not fit into place properly, ensure that the belt is inserted fully. 11.
Page 121 Maintenance Cleaning the Color Toner Density Sensors Turn off the printer. CAUTION: If the optional Productivity Kit (HD) is not installed, ensure that the Ready LED is off before you turn off the printer. The data in the memory is cleared when the printer is turned off. Push down on the rear door release and pull open the door.
Page 122 Maintenance Grasp the handle of the waste cartridge, then pull it out. To prevent toner spills, keep the openings facing up. Notes: • Be careful not to spill toner when handling the waste cartridge. • After removing the waste cartridge, do not touch the area shown in the illustration. Place the removed waste cartridge on a level surface.
Page 123 Maintenance Open the top cover. Put your fingers through the loops on both sides of the transfer belt unit, then pull it out. Use a dry cotton swab to clean the color toner density sensors. 10. Reinsert the belt unit into the printer. Phaser 6600 Color Printer User Guide...
Page 124 Maintenance 11. Close the top cover. 12. Reinsert the waste cartridge. Note: If the waste cartridge does not fit into place properly, ensure that the belt is inserted fully. 13. To lock the waste cartridge, turn the waste cartridge lock lever 90-degrees clockwise. 14.
Page 125 Maintenance 15. Close the rear door. Phaser 6600 Color Printer User Guide...
Page 126: Adjustments And Maintenance Procedures
Maintenance Adjustments and Maintenance Procedures This section includes: • Color Registration ......................126 • Checking the Firmware Version..................128 • Adjusting Paper Type ......................128 • Adjusting the Transfer Belt Unit ..................129 • Adjusting the Transfer Roller ....................129 •...
Page 127 Maintenance At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons. Navigate to Admin Settings, then press OK. Navigate to Service Tools, then press OK. Navigate to Color Reg Adjust, then press OK. To have the printer perform an automatic color registration, navigate to Auto Correct, then press OK.
Page 128: Checking The Firmware Version
Maintenance Repeat the process for the right side calibration lines, RY, RM, and RC. Align a straight edge through the middle of the white zone in each of the PY, PM, and PC charts. Circle the number at the end of each chart that represents the middle of the white zone. Navigate to Enter Number.
Page 129: Adjusting The Transfer Belt Unit
Maintenance At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons. Navigate to Admin Settings, then press OK. Navigate to Service Tools, then press OK. Select Adjust Paper Type, then press OK. Select Plain or Label, then press OK.
Page 130: Adjusting The Fuser
Maintenance At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons. Navigate to Admin Settings, then press OK. Navigate to Service Tools, then press OK. Select Adjust TransRoll, then press OK. To select the paper type for the adjustment, press the arrow buttons, then press OK.
Page 131: Initializing The Print Meter
Maintenance At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons. Navigate to Admin Settings, then press OK. Navigate to Service Tools, then press OK. Navigate to Reset Defaults, then press OK. At the Are you sure? prompt, press the Up or Down arrows to select Yes, then press OK.
Page 132: Clearing Job History
Maintenance Clearing Job History The printer retains information on previous printing jobs, including the date, time, job type, document name, output color, paper size, number of pages, and results. The status of a maximum of 20 jobs prints on the Job History Report. Use Clear Job History to clear all jobs from the list. To clear job history: At the printer control panel, press the Menu button.
Page 133: Ordering Supplies
• Toner Cartridges ........................ 135 Consumables Consumables are printer supplies that get depleted during the operation of the printer. Consumable ® supplies for this printer are the Genuine Xerox Toner Cartridges in Cyan, Magenta, Yellow, and Black. Notes: • Each consumable includes installation instructions.
Page 134: When To Order Supplies
The Total Satisfaction Guarantee is available in the United States and Canada. Coverage could vary outside these areas. Please contact your Xerox representative for details. Viewing Printer Supply Status You can check the status and percentage of life remaining for your printer supplies at any time using CentreWare Internet Services.
Page 135: Toner Cartridges
Use a damp cloth to wipe off spilled toner. Never use a vacuum cleaner to remove spills. Electric sparks inside the vacuum cleaner can cause a fire or explosion. If you spill a large volume of toner, contact your local Xerox representative. WARNING: Never throw a toner cartridge into an open flame.
Page 136: Managing The Printer
Maintenance Managing the Printer This section includes: • Checking Page Counts ....................... 136 • Changing the Passcode Using the Control Panel ............... 137 Checking Page Counts Use Billing Meters to view impression count details for the printer. The current counts for color, black and white, and combined total impressions appear on the Billing Meters screen.
Page 137: Changing The Passcode Using The Control Panel
Maintenance Changing the Passcode Using the Control Panel At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons. Navigate to Admin Settings, then press OK. Navigate to Secure Settings, then press OK. Navigate to Panel Lock, then press OK.
Page 138: Moving The Printer
Maintenance Moving the Printer WARNINGS: • Always use at least two people to lift the printer. • To prevent you from dropping the printer or injury, lift the printer firmly by gripping the recessed areas on both sides of the printer. Never lift the printer by gripping any other areas.
Page 139 Lift and carry the printer as shown in the illustration. CAUTION: Failure to repackage the printer properly for shipment can result in damage not ® covered by the Xerox Warranty, Service Agreement, or Total Satisfaction Guarantee. The ® Xerox Warranty, Service Agreement, or Total Satisfaction Guarantee do not cover damage to the printer caused by improper moving.
Page 141: Troubleshooting
Troubleshooting This chapter includes: • General Troubleshooting ....................142 • Paper Jams ........................147 • Getting Help ........................166 Phaser 6600 Color Printer User Guide...
Page 142: General Troubleshooting
Troubleshooting General Troubleshooting This section includes: • Printer Does Not Turn On ....................142 • Printer Resets or Turns Off Frequently ................143 • Printer Does Not Print ......................143 • Printing Takes Too Long ....................144 • Document Prints From Wrong Tray ..................145 •...
Page 143: Printer Resets Or Turns Off Frequently
Push the control panel button. The printer has an error. Follow the instructions on the control panel to clear the error. If the error persists, contact your Xerox representative. The printer is out of paper. Load paper into the tray.
Page 144: Printing Takes Too Long
Troubleshooting Probable Causes Solutions • If the Ready Indicator is flashing, it is normal. A previous print The printer is busy. job could be the problem. Use the printer properties to delete all print jobs in the print queue. • Load the paper in the tray. •...
Page 145: Document Prints From Wrong Tray
Solutions There is an obstruction or debris inside the Turn off the printer and remove the obstruction or debris. If you printer. cannot remove it, contact your Xerox representative. Paper Tray Will Not Close Probable Causes Solutions • The paper tray lift plate is not locked down. Push down on the The paper tray does not fully close.
Page 146: Condensation Has Formed Inside The Printer
Troubleshooting Condensation has Formed Inside the Printer Moisture can condense inside a printer where the humidity is above 85% or when a cold printer is located in a warm room. Condensation can form in a printer after it has been sitting in a cold room that is heated quickly.
Page 147: Paper Jams
If a sheet of paper is wrapped around the heat roller, do not try to remove it immediately. Switch off the printer immediately and wait 40 minutes for the fuser to cool. Try to remove the jam after the printer has cooled. If the error persists, contact your Xerox representative. CAUTION: Do not attempt to clear any paper jams using tools or instruments.
Page 148: Clearing Paper Jams
Troubleshooting Clearing Paper Jams This section includes: • Clearing Paper Jams from the Bypass Tray ............... 148 • Clearing Paper Jams from the Tray 1 Area ................ 150 • Clearing Paper Jams from the Tray 2 Area ................ 152 • Clearing Paper Jams from the Fuser Area .................
Page 149 Troubleshooting To remove the tray, lift the front of it slightly, then pull it out of the printer. Remove the jammed paper. At the back of the paper tray, press the paper lift tray down until it locks. Insert Tray 1 into the printer, then push it all the way in. Notes: •...
Page 150 Troubleshooting Insert the Bypass Tray into the printer. Push the tray in all the way. 10. If the control panel prompts you, verify the size and type on the screen. At the printer control panel, press the Menu button. Note: To navigate through the menu, use the Up or Down arrow buttons.
Page 151 Troubleshooting Grasp both sides of the Bypass Tray, then pull it straight out of the printer. Pull out Tray 1 until it stops. To remove the tray, lift the front of it slightly, then pull it out of the printer. Remove the jammed paper.
Page 152 Troubleshooting At the back of the paper tray, press the paper lift tray down until it locks. Insert Tray 1 into the printer, then push it all the way in. Notes: • If the tray does not go all the way in, ensure that the paper lift at the back of the tray is locked down.
Page 153 Troubleshooting Pull Tray 2 out until it stops. To remove the tray, lift the front of it slightly, then pull it out of the printer. Remove any paper jammed at the front of the printer. Phaser 6600 Color Printer User Guide...
Page 154 Troubleshooting At the back of the printer, open the Tray 2 Door, then remove any paper jammed at the back of the printer. Insert the tray back into the printer. Push the tray in all the way. Notes: • If the tray does not go all the way in, ensure that the paper lift at the back of the tray is locked down.
Page 155 Troubleshooting Push down on the rear door release and pull open the door. Lift the levers as shown. To lift the top paper guide on the top of the fuser, use the tabs to pull it up and out. Remove any jammed paper from the back of the printer. Phaser 6600 Color Printer User Guide...
Page 156 Troubleshooting Close the paper guide cover on the fuser. Lower the levers to their original position. Close the rear door. Phaser 6600 Color Printer User Guide...
Page 157: Troubleshooting Paper Jams
Remove the paper from the tray, and replace it with new dry paper. Too much static electricity is present. Try a new ream of paper. ® Using unsupported paper. Use only Xerox -approved paper. For details, see Supported Paper on page 84. Humidity is too high for coated paper.
Page 158: Paper Jam Message Stays On
Troubleshooting Label and Envelope Misfeeds Probable Causes Solutions • Load label sheets according to the instructions from the The label sheet is facing the wrong way in the tray. manufacturer. Load labels only in the Bypass Tray, face up and with the top going into the printer. •...
Page 159: Print-Quality Problems
Warranty, Service Agreement, or Xerox Total Satisfaction Guarantee ® does not cover damage caused by using unsupported paper or specialty media. The Xerox Total Satisfaction Guarantee is available in the United States and Canada. Coverage could vary outside these areas. Please contact your local representative for details.
Page 160 You can also print a Demo Page to more precisely determine the print-quality problem. For details, see Information Pages on page 25. If the print quality does not improve after carrying out the appropriate action, contact your Xerox representative. Notes: •...
Page 161 The paper is damp. Replace the paper. ® The high-voltage supply is For assistance, go to the Xerox Support defective. website at www.xerox.com/office/6600support. Only one color is faded. Toner cartridge is empty or Check the condition of the toner cartridge damaged.
Page 162 There is a problem with the Check the toner cartridge for damage and toner cartridge for that color. replace if necessary. For assistance, go to ® the Xerox Support website at www.xerox.com/office/6600support. Color around the edge of The color registration is Adjust the color registration.
Page 163 For details, see Supported range. Paper on page 84. ® The printer is worn or For assistance, go to the Xerox Support damaged. website at www.xerox.com/office/6600support. The toner cartridges are not Verify that the toner cartridges meet ®...
Page 164 White line or lines running Paper or debris is dragging the through all colors. bottom of the transfer belt. printer. • For assistance, go to the Xerox ® Support website at www.xerox.com/office/6600support. Slanted printing. The paper guides in the trays Reset the paper tray guides.
Page 165 Troubleshooting Symptom Probable Causes Solutions Spots or lines appear at regular One or more of the To determine the cause, measure the intervals on the prints. distance between the print defects. components in the paper path • 75.3 mm (3 in.) - Imaging Unit is marking the paper.
Page 166: Getting Help
Troubleshooting Getting Help This section includes: • Control Panel Messages ....................166 • Using the Integrated Troubleshooting Tools ............... 167 • Online Support Assistant ....................167 • Information Pages ......................167 • More Information ........................ 168 Your printer comes with utilities and resources to help you troubleshoot printing problems. Control Panel Messages The printer control panel provides information and troubleshooting help.
Page 167: Using The Integrated Troubleshooting Tools
You can find solutions for print-quality problems, paper jams, software installation issues, and more. To access the Online Support Assistant, go to www.xerox.com/office/6600support. Information Pages Your printer has a printable set of information pages. These include configuration and font information, demonstration pages, and more.
Page 168: More Information
You can obtain more information about your printer from these sources: Resource Location Installation Guide Packaged with the printer. Other documentation for your printer www.xerox.com/office/6600docs Recommended Media List United States: www.xerox.com/paper European Union: www.xerox.com/europaper Technical support information for your printer;...
Page 169: Specifications
Specifications This appendix includes: • Printer Configurations and Options ..................170 • Physical Specifications ....................... 171 • Environmental Specifications ..................... 174 • Electrical Specifications ...................... 175 • Performance Specifications ....................176 • Controller Specifications ..................... 177 Phaser 6600 Color Printer User Guide...
Page 170: Printer Configurations And Options
Specifications Printer Configurations and Options Available Configurations The Phaser 6600 Color Printer is available in two configurations: • Phaser 6600N Color Printer: Network printer with USB and network connectivity. • Phaser 6600DN Color Printer: Network printer with automatic 2-sided printing, and USB and network connectivity.
Page 171: Physical Specifications
Specifications Physical Specifications Weights and Dimensions Phaser 6600DN Color Printer Phaser 6600DN Color Printer with Optional 550-Sheet Feeder Width 430 mm (16.9 in.) 430 mm (16.9 in.) Depth 488 mm (19.2 in.) 488 mm (19.2 in.) Height 384 mm (15.1 in.) 477 mm (18.8 in.) Weight 25.5 kg (56.2 lb.)
Page 172: Total Space Requirements
Specifications Total Space Requirements Phaser 6600DN Color Printer Phaser 6600DN Color Printer with Optional 550-Sheet Feeder Width 927 mm (36.4 in.) 927 mm (36.4 in.) Depth 1488 mm (58.6 in.) 1488 mm (58.6 in.) Height 559 mm (22 in.) 652 mm (25.7 in.) Clearance Requirements Phaser 6600 Color Printer Phaser 6600 Color Printer...
Page 173: Clearance Requirements With Optional 550-Sheet Feeder
Specifications Clearance Requirements with Optional 550-Sheet Feeder Phaser 6600 Color Printer Phaser 6600 Color Printer User Guide...
Page 174: Environmental Specifications
Specifications Environmental Specifications Temperature • Operating temperature: 10–32°C (50–90°F) • Optimum temperature: 15–28°C (59–82°F) Relative Humidity • Minimum–Maximum Humidity Range: 10–85% • Optimal Humidity Range: 20–70% relative humidity at 28°C (82°F) Note: Under extreme environmental conditions, such as 10°C and 85% relative humidity, defects can occur due to condensation.
Page 175: Electrical Specifications
® Xerox ENERGY STAR equipment is preset at the factory to switch to Energy Saver Modes after 10 minutes from the last copy or print.
Page 176: Performance Specifications
Specifications Performance Specifications Feature Specifications Printer warm up time Power on: As fast as 12 seconds. Recovery from sleep mode: As fast as 3 seconds. Note: Warm up time assumes an ambient temperature of 20ºC (68°F) at 60% relative humidity. Print Speed Print speeds for continuous printing are up to 36 ppm.
Page 177: Controller Specifications
Specifications Controller Specifications Processor 533 MHz ARM11 processor Memory Memory Phaser 6600 Color Printer Standard memory 256 MB RAM Optional Productivity Kit 512 MB RAM (768 MB total) (Memory) Flash memory 64 MB ROM EEPROM 48 KB EEPROM Interfaces Universal Serial Bus (USB 2.0) Ethernet 10/100/1000Base-TX IEEE802.11 Compliant Wireless Network Adapter Phaser 6600 Color Printer...
Page 179: Regulatory Information
Regulatory Information This appendix includes: • Basic Regulations ......................180 • Material Safety Data Sheets ....................184 Phaser 6600 Color Printer User Guide...
Page 180: Basic Regulations
• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not approved by Xerox can void the authority of the user to operate this equipment. Note: To ensure compliance with Part 15 of the FCC rules, use shielded interface cables.
Page 181: European Union
To ensure compliance with European Union regulations, use shielded interface cables. A signed copy of the Declaration of Conformity for this printer can be obtained from Xerox. European Union Lot 4 Imaging Equipment Agreement Environmental Information...
Page 182: Germany
Mode, please consider that this device may then only switch to a lower energy level after a longer period of time or not at all. To learn more about Xerox participation in sustainability initiatives, please visit our website at: www.xerox.com/about-xerox/environment/enus.html...
Page 183: Turkey Rohs Regulation
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this device not specifically approved by the Xerox Corporation may void the user's authority to operate this equipment.
Page 184: Material Safety Data Sheets
Regulatory Information Material Safety Data Sheets For Material Safety Data information regarding your printer, go to: • North America: www.xerox.com/msds • European Union: www.xerox.com/environment_europe For the Customer Support Center phone numbers, go to www.xerox.com/office/worldcontacts. Phaser 6600 Color Printer User Guide...
Page 185: C Recycling And Disposal
Recycling and Disposal This appendix includes: • All Countries ........................186 • North America ........................187 • European Union ......................... 188 • Other Countries ........................190 Phaser 6600 Color Printer User Guide...
Page 186: All Countries
Recycling and Disposal All Countries ® If you are managing the disposal of your Xerox product, please note that the printer may contain lead, mercury, perchlorate, and other materials whose disposal may be regulated due to environmental considerations. The presence of these materials is fully consistent with global regulations applicable at the time that the product was placed on the market.
Page 187: North America
Recycling and Disposal North America Xerox operates an equipment take-back and reuse/recycle program. Contact your Xerox ® representative (1-800-ASK-XEROX) to determine if this Xerox product is part of the program. For ® more information about Xerox environmental programs, visit www.xerox.com/environment , or for recycling and disposal information, contact your local authorities.
Page 188: European Union
In accordance with European legislation, end of life electrical and electronic equipment subject to disposal must be managed within agreed procedures. Prior to disposal, please contact your local reseller or Xerox representative for end of life take-back information. Phaser 6600 Color Printer...
Page 189: Collection And Disposal Of Equipment And Batteries
Recycling and Disposal Collection and Disposal of Equipment and Batteries These symbols on the products and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery, and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directive 2002/96/EC and 2006/66/EC.
Page 190: Other Countries
Recycling and Disposal Other Countries Please contact your local waste management authority to request disposal guidance. Phaser 6600 Color Printer User Guide...

Xerox Phaser 6600 User Giude

1 Safety

2 Features

3 Installation and Setup

4 Paper and Media

5 Printing

6 Maintenance

7 Troubleshooting

Specifications

Regulatory Information

C Recycling and Disposal

Quick Links

User Guide

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xerox Xerox Phaser 6600

Summary of Contents for Xerox Xerox Phaser 6600

Table of Contents
