Unable To Send Scanned Data Over The Network (Smb/Lpr) - Xerox Wide Format 6705 System User Manual

8.6.3

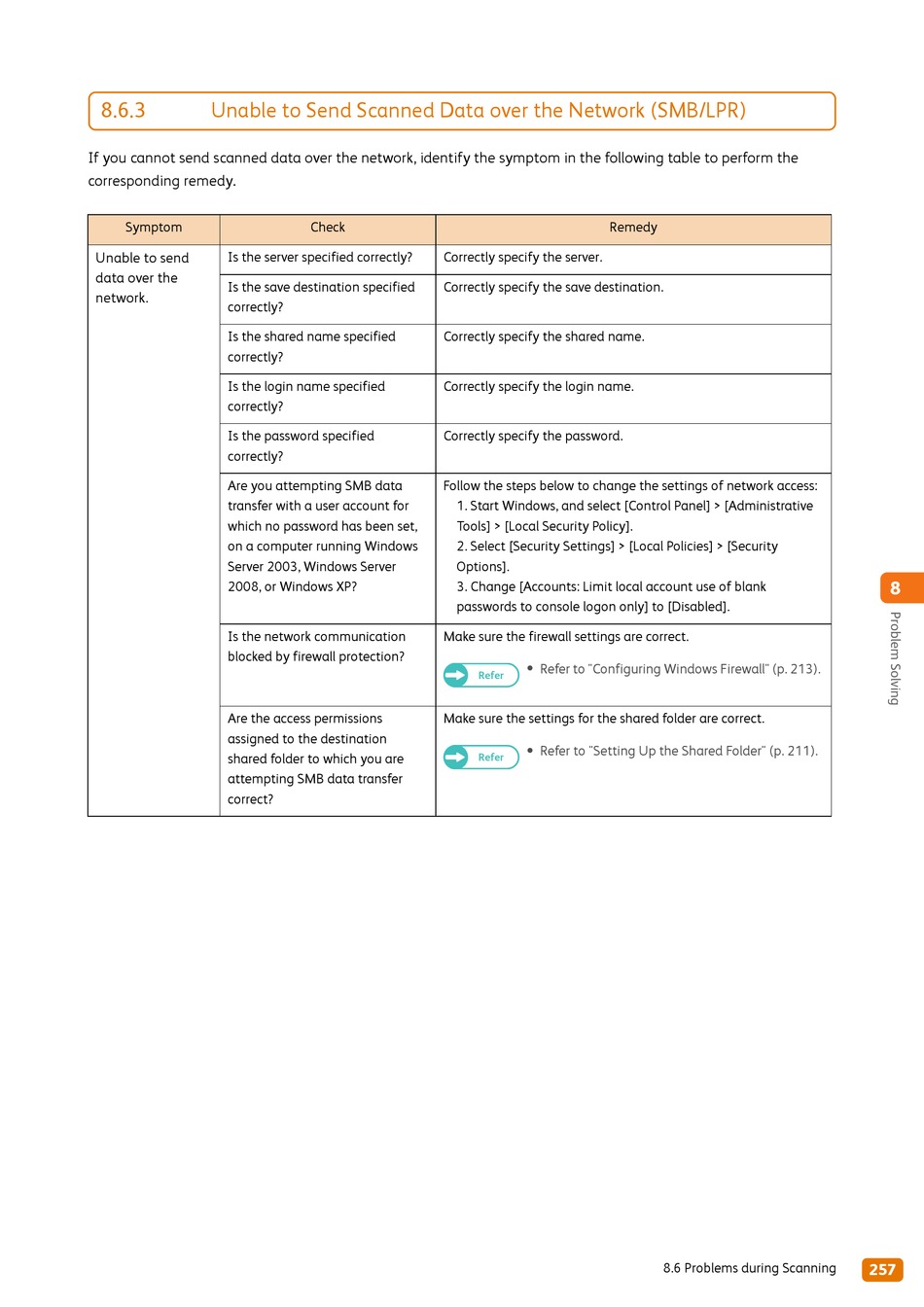

Unable to Send Scanned Data over the Network (SMB/LPR)

If you cannot send scanned data over the network, identify the symptom in the following table to perform the
corresponding remedy.
Symptom
Unable to send Is the server specified correctly?
data over the
Is the save destination specified
network.
correctly?
Is the shared name specified
correctly?
Is the login name specified
correctly?
Is the password specified
correctly?
Are you attempting SMB data
transfer with a user account for
which no password has been set,
on a computer running Windows
Server 2003, Windows Server
2008, or Windows XP?
Is the network communication
blocked by firewall protection?
Are the access permissions
assigned to the destination
shared folder to which you are
attempting SMB data transfer
correct?
Check
Correctly specify the server.
Correctly specify the save destination.
Correctly specify the shared name.
Correctly specify the login name.
Correctly specify the password.
Follow the steps below to change the settings of network access:
1. Start Windows, and select [Control Panel] > [Administrative
Tools] > [Local Security Policy].
2. Select [Security Settings] > [Local Policies] > [Security
Options].
3. Change [Accounts: Limit local account use of blank
passwords to console logon only] to [Disabled].
Make sure the firewall settings are correct.
Refer
Make sure the settings for the shared folder are correct.
Refer
Remedy
Refer to "Configuring Windows Firewall" (p. 213).

Refer to "Setting Up the Shared Folder" (p. 211).

8.6 Problems during Scanning
8
257
