6.1.3

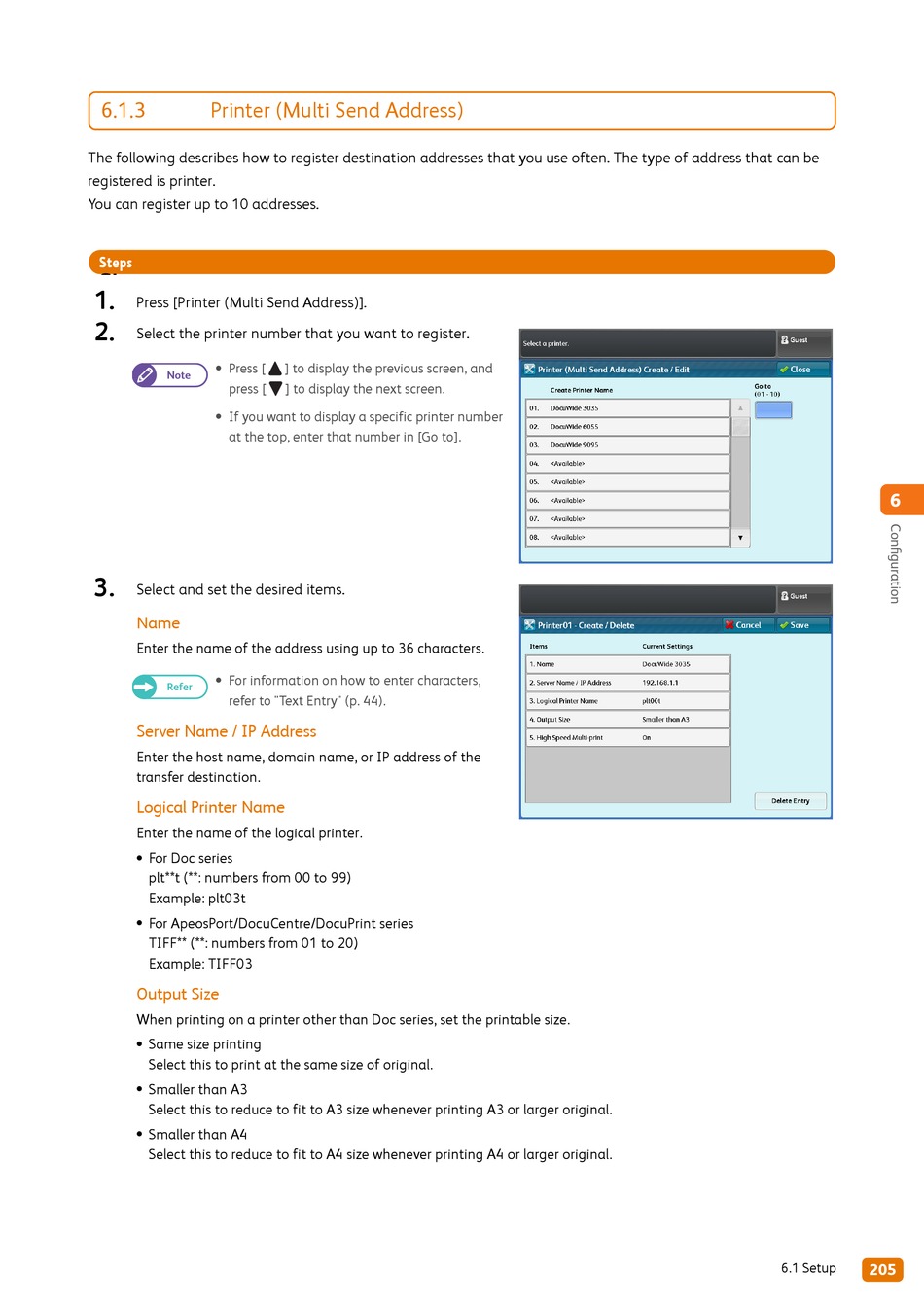

Printer (Multi Send Address)

The following describes how to register destination addresses that you use often. The type of address that can be
registered is printer.
You can register up to 10 addresses.
Steps
St
1.
Press [Printer (Multi Send Address)].
2.
Select the printer number that you want to register.
Press [
Note
press [
If you want to display a specific printer number
at the top, enter that number in [Go to].
3.
Select and set the desired items.
Name
Enter the name of the address using up to 36 characters.
For information on how to enter characters,
Refer
refer to "Text Entry" (p. 44).
Server Name / IP Address
Enter the host name, domain name, or IP address of the
transfer destination.
Logical Printer Name
Enter the name of the logical printer.
For Doc series
plt**t (**: numbers from 00 to 99)
Example: plt03t
For ApeosPort/DocuCentre/DocuPrint series
TIFF** (**: numbers from 01 to 20)
Example: TIFF03
Output Size
When printing on a printer other than Doc series, set the printable size.
Same size printing
Select this to print at the same size of original.
Smaller than A3
Select this to reduce to fit to A3 size whenever printing A3 or larger original.
Smaller than A4
Select this to reduce to fit to A4 size whenever printing A4 or larger original.
] to display the previous screen, and
] to display the next screen.
6
6.1 Setup
205
