Importing Using Centreware Internet Services - Xerox Wide Format 6705 System User Manual

5.5.3

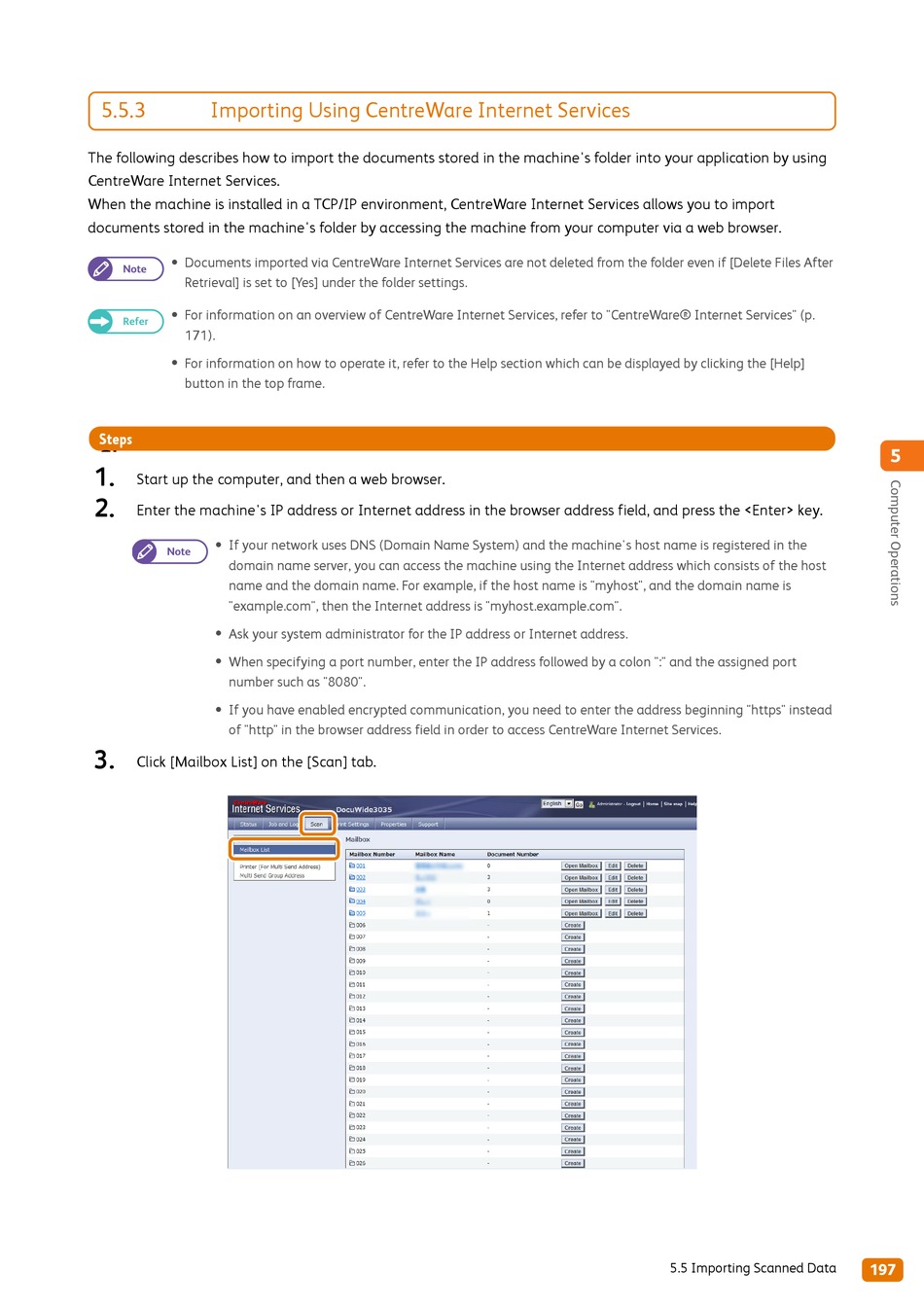

Importing Using CentreWare Internet Services

The following describes how to import the documents stored in the machine's folder into your application by using
CentreWare Internet Services.
When the machine is installed in a TCP/IP environment, CentreWare Internet Services allows you to import
documents stored in the machine's folder by accessing the machine from your computer via a web browser.
Documents imported via CentreWare Internet Services are not deleted from the folder even if [Delete Files After

Note
Retrieval] is set to [Yes] under the folder settings.
For information on an overview of CentreWare Internet Services, refer to "CentreWare® Internet Services" (p.

Refer
171).
For information on how to operate it, refer to the Help section which can be displayed by clicking the [Help]

button in the top frame.
Steps
St
1.
Start up the computer, and then a web browser.
2.
Enter the machine's IP address or Internet address in the browser address field, and press the <Enter> key.
If your network uses DNS (Domain Name System) and the machine's host name is registered in the

Note
domain name server, you can access the machine using the Internet address which consists of the host
name and the domain name. For example, if the host name is "myhost", and the domain name is
"example.com", then the Internet address is "myhost.example.com".
Ask your system administrator for the IP address or Internet address.

When specifying a port number, enter the IP address followed by a colon ":" and the assigned port

number such as "8080".
If you have enabled encrypted communication, you need to enter the address beginning "https" instead

of "http" in the browser address field in order to access CentreWare Internet Services.
3.
Click [Mailbox List] on the [Scan] tab.
5.5 Importing Scanned Data
5
197
