Color Scan Settings - Xerox Wide Format 6705 System User Manual

9.3.5

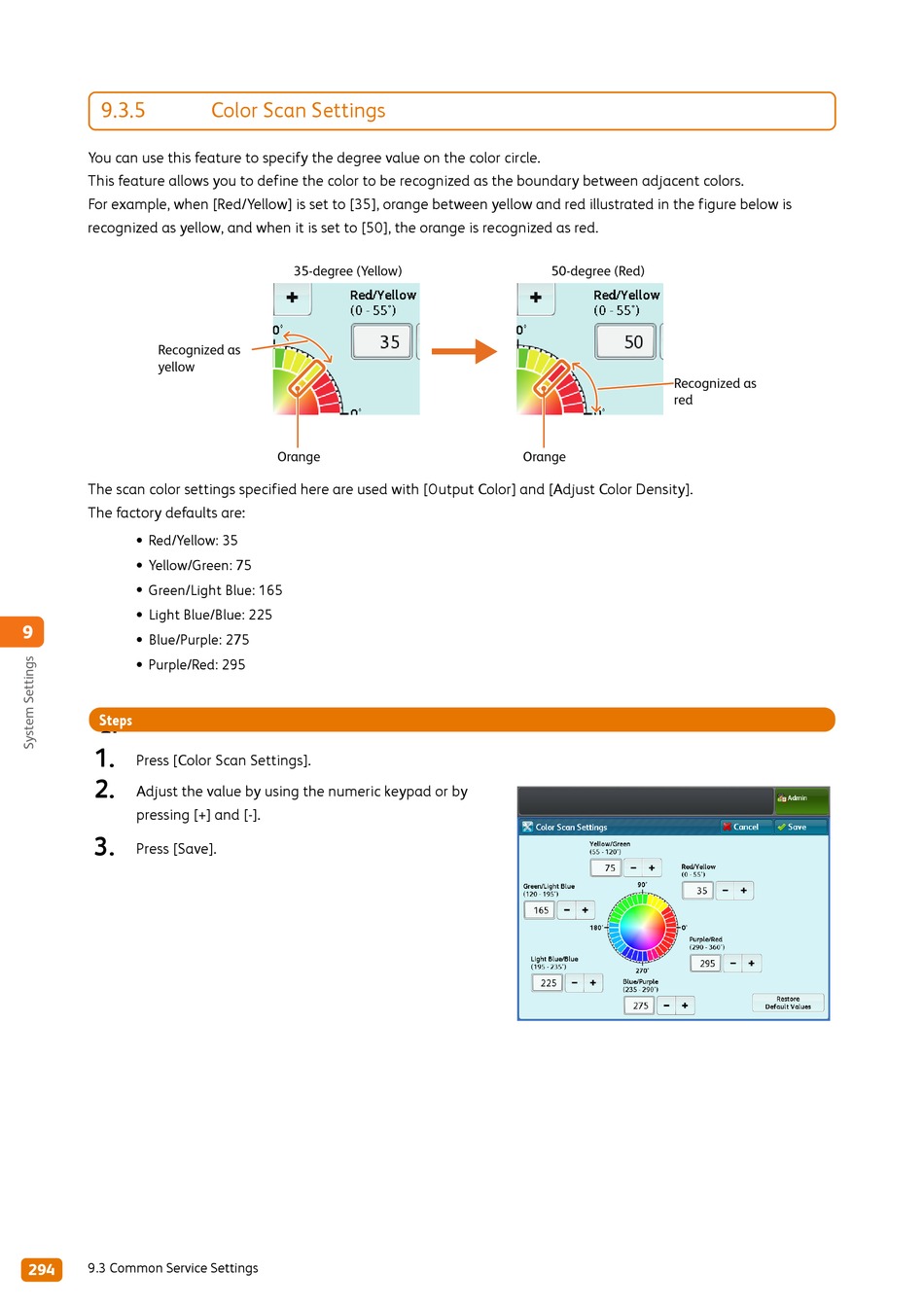

You can use this feature to specify the degree value on the color circle.
This feature allows you to define the color to be recognized as the boundary between adjacent colors.
For example, when [Red/Yellow] is set to [35], orange between yellow and red illustrated in the figure below is
recognized as yellow, and when it is set to [50], the orange is recognized as red.
Recognized as
yellow
The scan color settings specified here are used with [Output Color] and [Adjust Color Density].
The factory defaults are:
Red/Yellow: 35

Yellow/Green: 75

Green/Light Blue: 165

Light Blue/Blue: 225

9
Blue/Purple: 275

Purple/Red: 295

Steps
St
1.
Press [Color Scan Settings].
2.
Adjust the value by using the numeric keypad or by
pressing [+] and [-].
3.
Press [Save].
