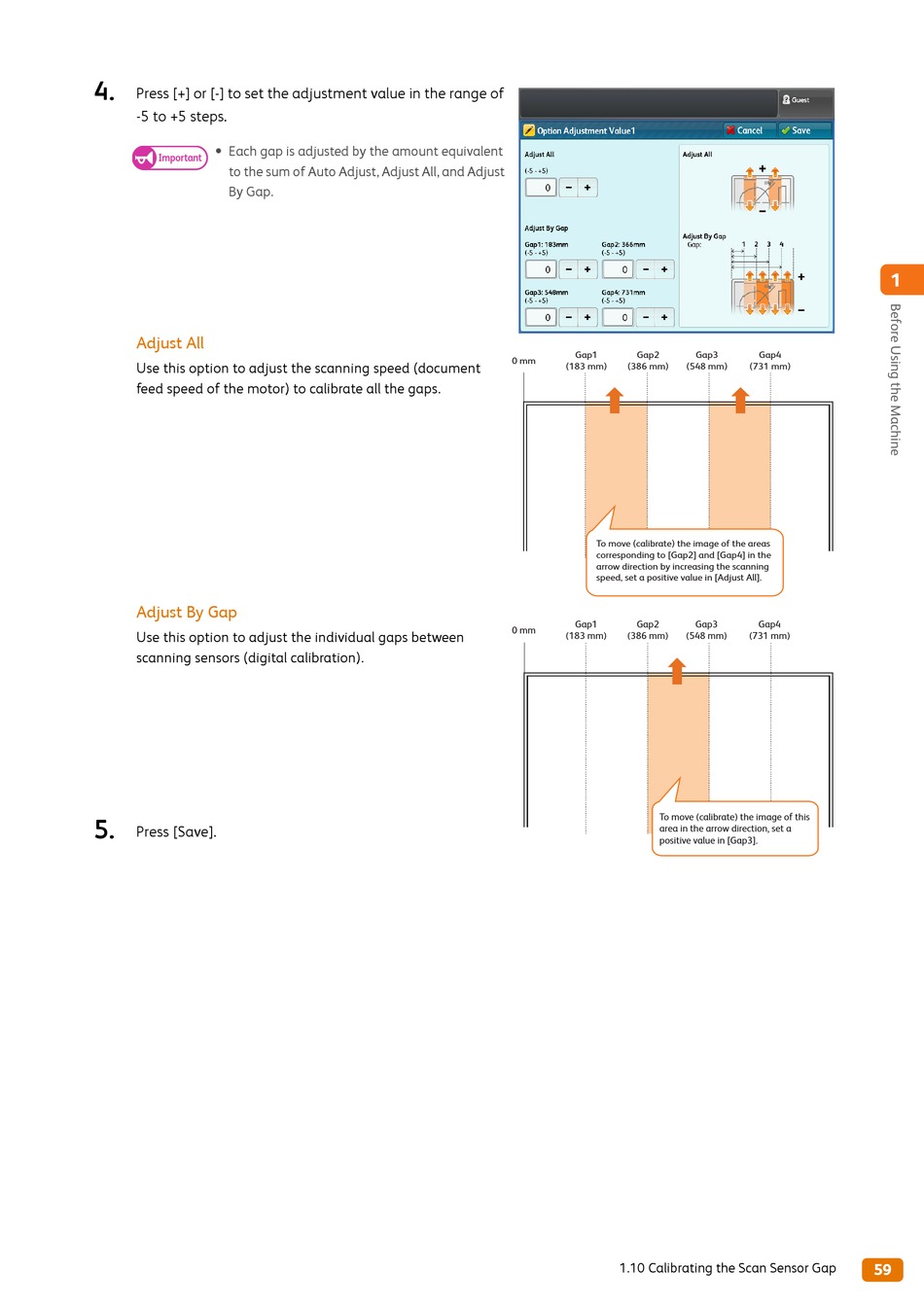

Xerox Wide Format 6705 System User Manual page 59

4.
Press [+] or [-] to set the adjustment value in the range of
-5 to +5 steps.
Each gap is adjusted by the amount equivalent

Important
to the sum of Auto Adjust, Adjust All, and Adjust
By Gap.
Adjust All
Use this option to adjust the scanning speed (document
feed speed of the motor) to calibrate all the gaps.
Adjust By Gap
Use this option to adjust the individual gaps between
scanning sensors (digital calibration).
5.
Press [Save].
Gap1 Gap2
0 mm
(183 mm) (386 mm) (548 mm)
To move (calibrate) the image of the areas
corresponding to [Gap2] and [Gap4] in the
arrow direction by increasing the scanning
speed, set a positive value in [Adjust All].
Gap1 Gap2
0 mm
(183 mm) (386 mm) (548 mm)
To move (calibrate) the image of this
area in the arrow direction, set a
positive value in [Gap3].
1.10 Calibrating the Scan Sensor Gap
Gap3 Gap4
(731 mm)
Gap3 Gap4
(731 mm)
