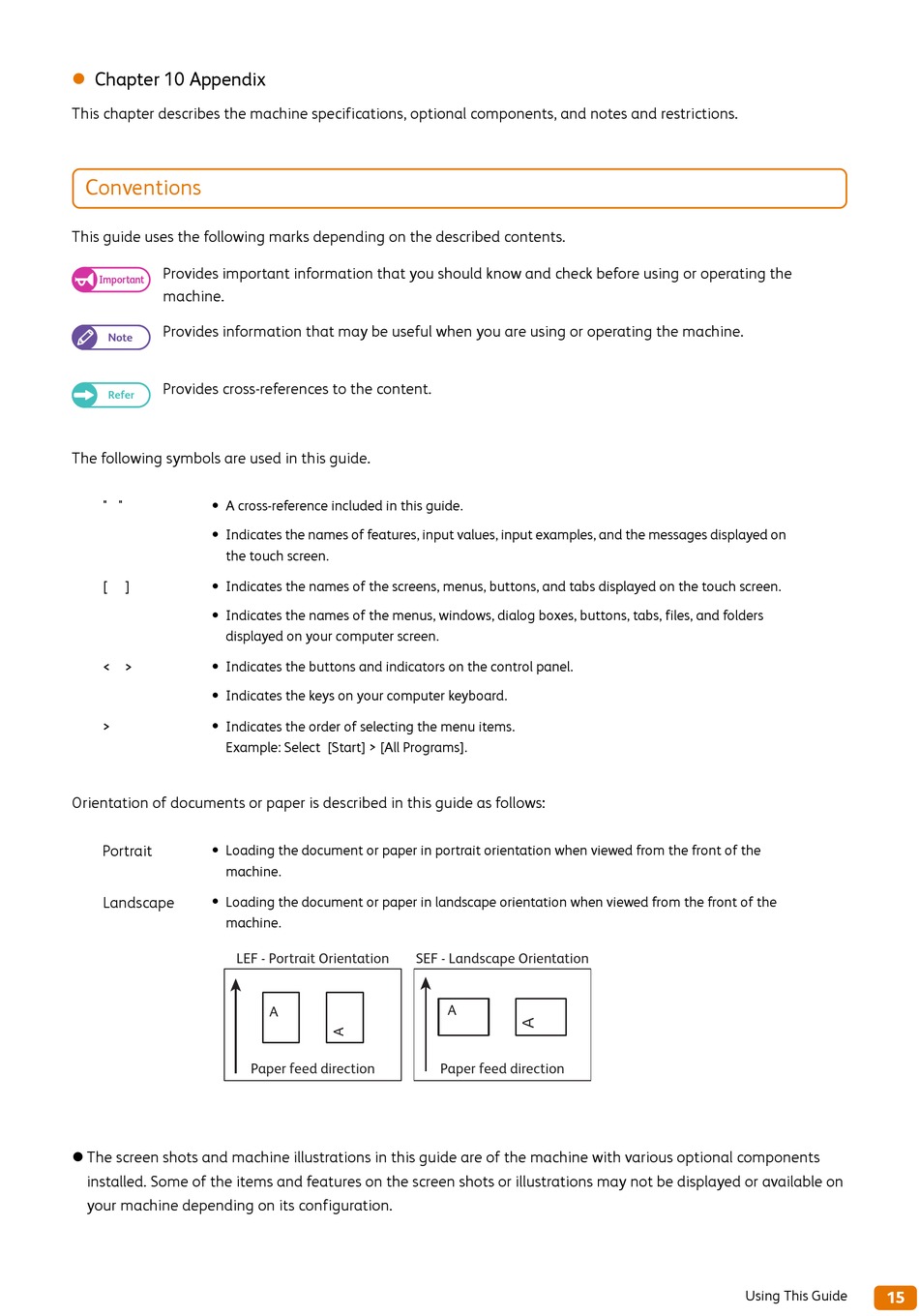

Xerox Wide Format 6705 System User Manual page 15

 Chapter 10 Appendix
This chapter describes the machine specifications, optional components, and notes and restrictions.
Conventions
This guide uses the following marks depending on the described contents.
Provides important information that you should know and check before using or operating the
Important
machine.
Provides information that may be useful when you are using or operating the machine.
Note
Provides cross-references to the content.
Refer
The following symbols are used in this guide.
" " A cross-reference included in this guide.

Indicates the names of features, input values, input examples, and the messages displayed on

the touch screen.
[ ] Indicates the names of the screens, menus, buttons, and tabs displayed on the touch screen.

Indicates the names of the menus, windows, dialog boxes, buttons, tabs, files, and folders

displayed on your computer screen.
< > Indicates the buttons and indicators on the control panel.

Indicates the keys on your computer keyboard.

> Indicates the order of selecting the menu items.

Example: Select [Start] > [All Programs].
Orientation of documents or paper is described in this guide as follows:
Portrait
Loading the document or paper in portrait orientation when viewed from the front of the

machine.
Landscape Loading the document or paper in landscape orientation when viewed from the front of the

machine.
LEF - Portrait Orientation
 The screen shots and machine illustrations in this guide are of the machine with various optional components
installed. Some of the items and features on the screen shots or illustrations may not be displayed or available on
your machine depending on its configuration.
SEF - Landscape Orientation
A
Paper feed direction
A
Paper feed direction
Using This Guide
15
