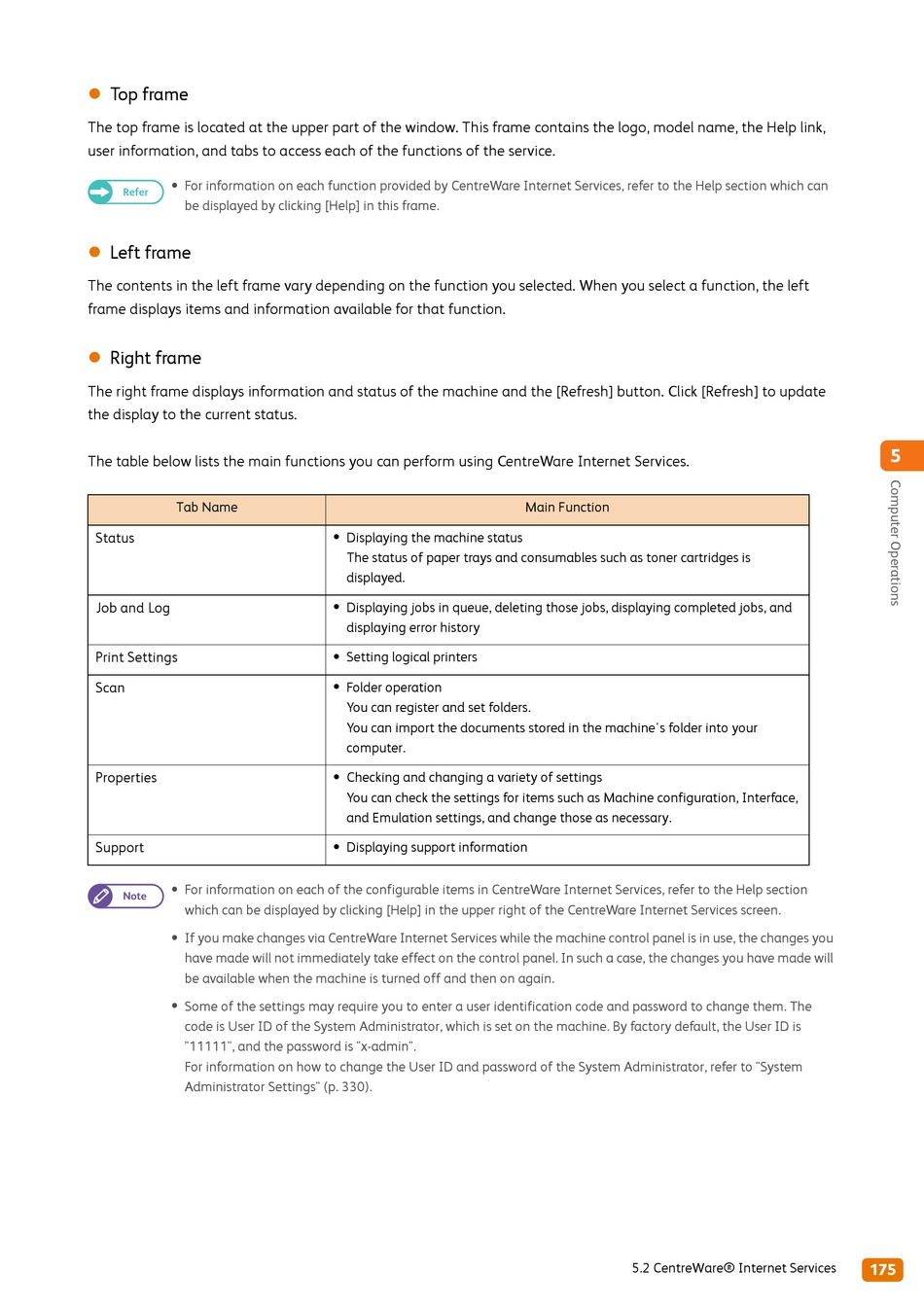

Xerox Wide Format 6705 System User Manual page 175

 Top frame
The top frame is located at the upper part of the window. This frame contains the logo, model name, the Help link,
user information, and tabs to access each of the functions of the service.
For information on each function provided by CentreWare Internet Services, refer to the Help section which can

Refer
be displayed by clicking [Help] in this frame.
 Left frame
The contents in the left frame vary depending on the function you selected. When you select a function, the left
frame displays items and information available for that function.
 Right frame
The right frame displays information and status of the machine and the [Refresh] button. Click [Refresh] to update
the display to the current status.
The table below lists the main functions you can perform using CentreWare Internet Services.
Tab Name
Status
Job and Log
Print Settings
Scan
Properties
Support
For information on each of the configurable items in CentreWare Internet Services, refer to the Help section

Note
which can be displayed by clicking [Help] in the upper right of the CentreWare Internet Services screen.
If you make changes via CentreWare Internet Services while the machine control panel is in use, the changes you

have made will not immediately take effect on the control panel. In such a case, the changes you have made will
be available when the machine is turned off and then on again.
Some of the settings may require you to enter a user identification code and password to change them. The

code is User ID of the System Administrator, which is set on the machine. By factory default, the User ID is
"11111", and the password is "x-admin".
For information on how to change the User ID and password of the System Administrator, refer to "System
Administrator Settings" (p. 330).
Displaying the machine status

The status of paper trays and consumables such as toner cartridges is
displayed.
Displaying jobs in queue, deleting those jobs, displaying completed jobs, and

displaying error history
Setting logical printers

Folder operation

You can register and set folders.
You can import the documents stored in the machine's folder into your
computer.
Checking and changing a variety of settings

You can check the settings for items such as Machine configuration, Interface,
and Emulation settings, and change those as necessary.
Displaying support information

Main Function
5.2 CentreWare® Internet Services
