8.10.1

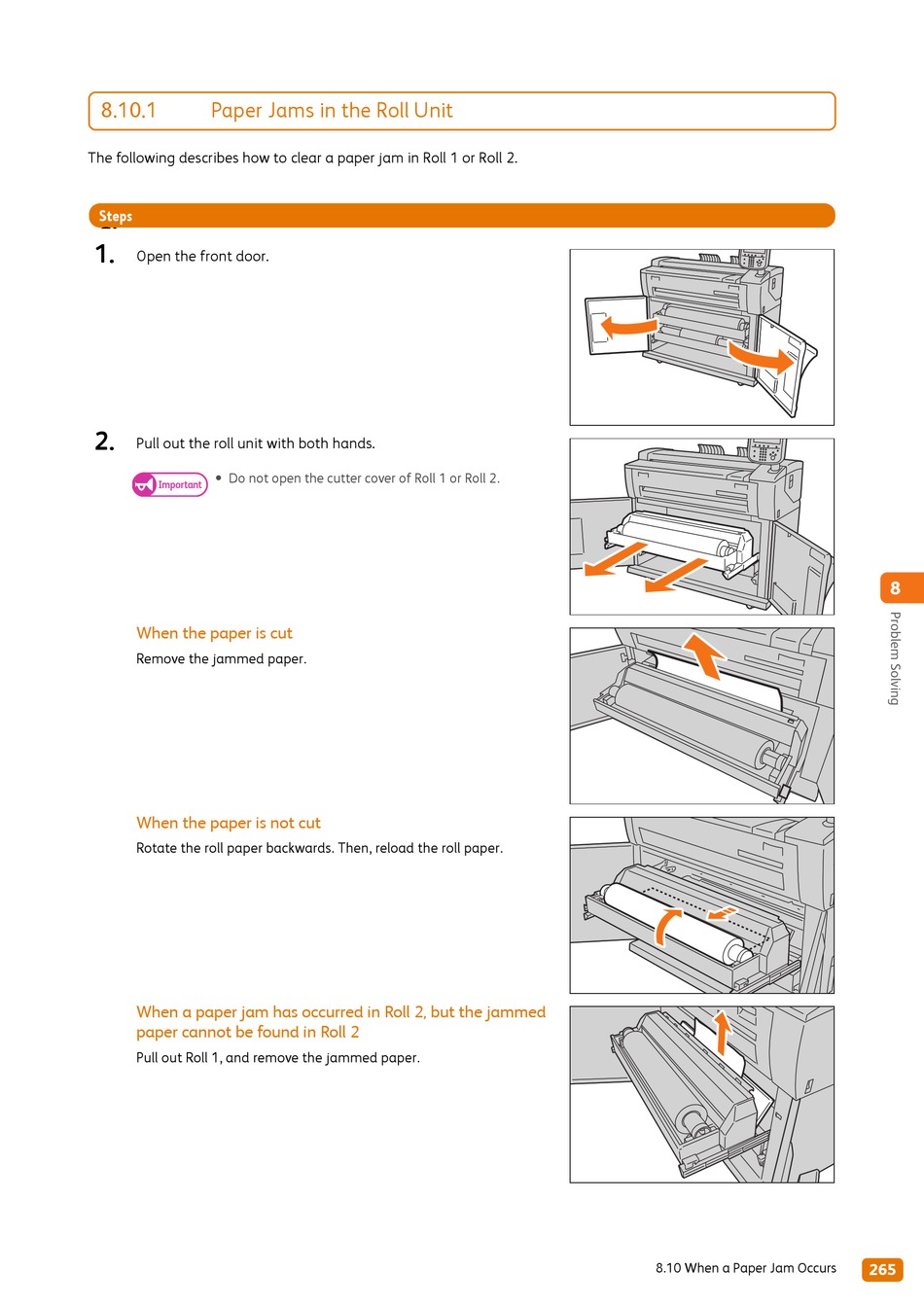

Paper Jams in the Roll Unit

The following describes how to clear a paper jam in Roll 1 or Roll 2.
Steps
St
1.
Open the front door.
2.
Pull out the roll unit with both hands.
Do not open the cutter cover of Roll 1 or Roll 2.

Important
When the paper is cut
Remove the jammed paper.
When the paper is not cut
Rotate the roll paper backwards. Then, reload the roll paper.
When a paper jam has occurred in Roll 2, but the jammed
paper cannot be found in Roll 2
Pull out Roll 1, and remove the jammed paper.
8.10 When a Paper Jam Occurs
8
265
