Power Connection - Intermec EasyCoder C4 User Manual

Power Connection

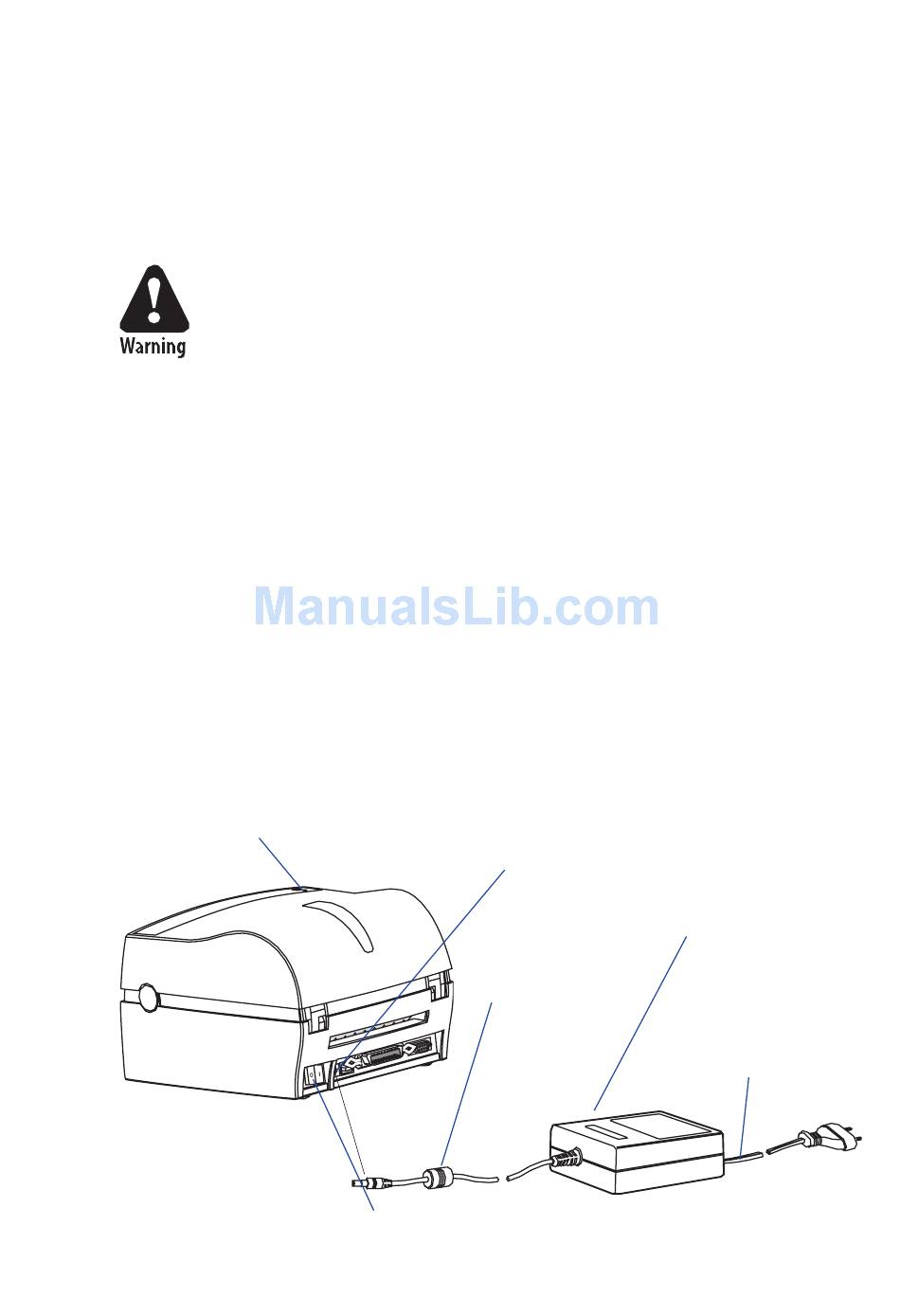

Place the printer in a suitable location that allows easy access to
1
printed labels and preferably also easy reload of media and transfer
ribbon. The printer should only be operated while resting on a
horizontal surface, like a table or similar.
The printer and power supply unit must never be operated
in a location where they can get wet. Personal injury could
result! Only use with power supply Intermec SPN-470-24
P/N 1-092515-XX Mfg by PROTON.
Place the power supply in a suitable location between the printer and
2
an electrical outlet, for example on the fl oor. The power supply can
be used for 100 to 240 VAC, 50 to 60 Hz. The confi guration of the
power cord plug differs according to national standards.
Check that the printer's On/Off switch at the back is off (O).
3
First, fi t the round connector into the power receptacle on the
4
printer's rear plate. Then connect the power cord between the power
supply and an AC wall socket.
The power can be switched on/off by means of the On/Off switch
5
situated at the back of the printer. The indicator lamp on the printer
lights green, red, or orange to indicate that the power is on. (It also
indicates various conditions, see
Indicator lamp
Intermec EasyCoder C4—User's Guide
Chapter
Power receptacle
Low voltage
cable
On/Off switch
Chapter 1— Installation
2.)
Power supply unit
Power cord
3
