Manitowoc Grove RT9150E Operator's Manual page 99

RT9150E OPERATOR MANUAL

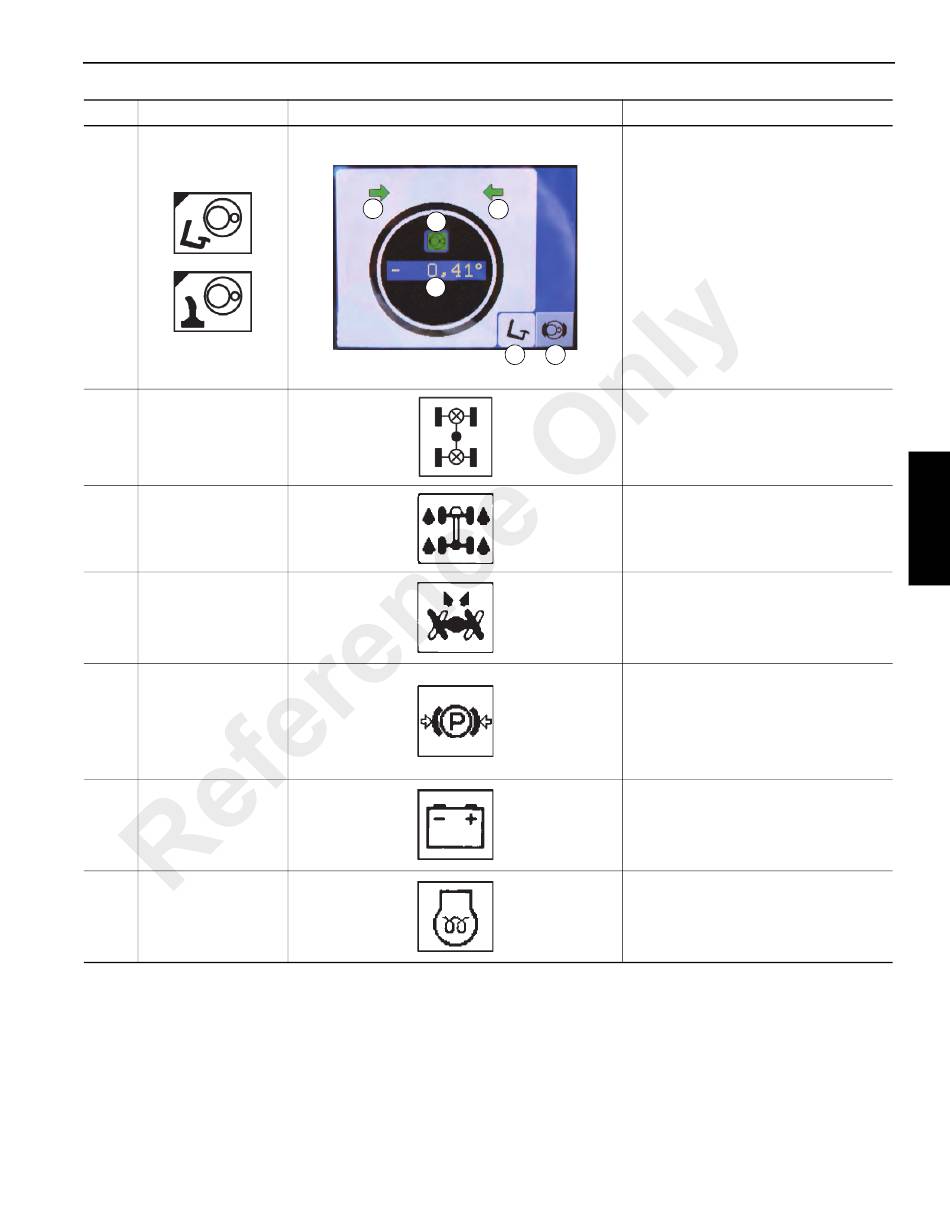

Item Description
Swing Gear and
Brake Submenu,
page 3-30
8
OR
Press the F8 button
to open the
submenu.
Differential Lock
9
Indicator
Four-Wheel Drive
10
Indicator
Rear Steer
11
Indicator
Parking Brake
12
Indicator
13 Charging Indicator
14 Engine Preheat
Grove
OPERATING CONTROLS AND PROCEDURES
Graphic
3
3
1
2
4
XXXX-X
Published 2-23-2017, Control # 644-00
Explanation
(1) Swing gear indicator
(2) Current swing angle display
(3) Swing gear direction indicators
(4) Swing gear brake function
indicator
(5) Swing gear brake control selector
button, F14
5
Switch located on left armrest control
panel.
Gray: Differential lock off.
Yellow: Differential lock engaged.
Switch located on steering column.
Gray: Four-wheel drive off.
Yellow: Four-wheel drive engaged.
Switch located on left armrest control
panel.
Gray: Rear steer centered.
Yellow: Rear steer off center.
Indicates when the parking brake is
either off or engaged.
Switch located on steering column.
Gray: Parking brake off.
Red: Parking brake engaged.
Indicates when the charging system is
operating.
Gray: Charging.
Red: Charging off.
Indicates the engine preheat system is
operating.
Gray: Preheat off.
Yellow: Preheat system on.
