RT9150E OPERATOR MANUAL

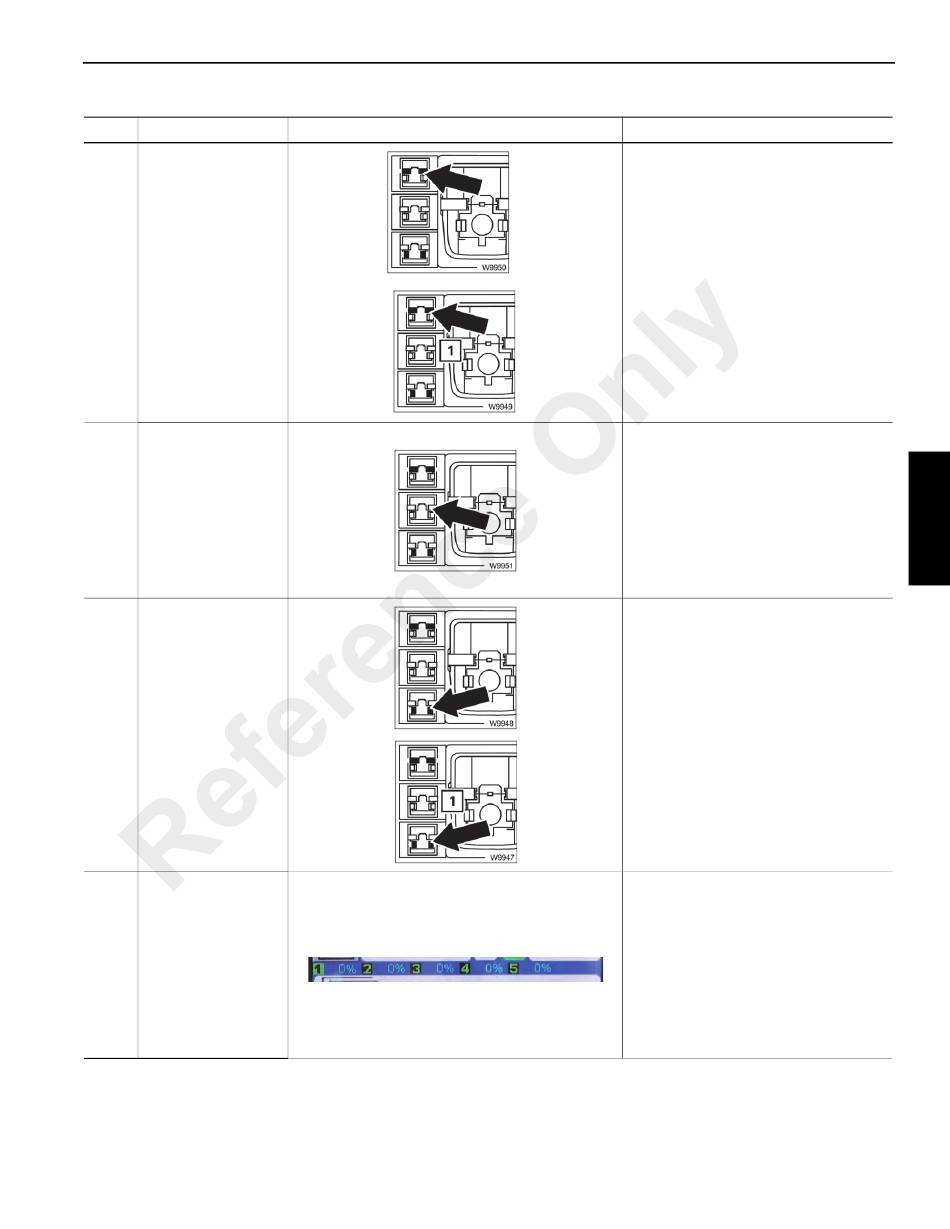

Item Description
Unlock section
1
button, F1
2 Lock button, F2
Unlock telescope
3
cylinder button, F3
4 Boom length status
Grove
OPERATING CONTROLS AND PROCEDURES
Graphic
Published 2-23-2017, Control # 644-00
Explanation
Red: Telescopic section unlocked
Green: Telescopic section locked
Flashing (yellow/grey): Unlock
selected
To select press the F1 button once.
• With the telescopic cylinder locked:
the selected section will unlock after
moving the control lever
• With the telescopic cylinder
unlocked: the symbol (1) flashes
(yellow/grey) as a prompt to lock the
telescope cylinder.
Red: Telescope cylinder and
telescopic section locked
Grey: Telescope cylinder or telescopic
section unlocked
Flashing (yellow/grey): Lock selected
Press the F2 button once.
The symbol flashes, lock telescopic
cylinder/section is selected.
Red: Telescoping cylinder unlocked
Grey: Telescoping cylinder locked
Flashing (yellow/grey): Unlock
selected
To select press the F3 button once:
• With the telescope section locked:
the section will unlock after moving
the control lever
• With the telescope section
unlocked: unlock not selected,
symbol (1) flashes (yellow/grey) as
a prompt to lock the telescoping
cylinder.
The boom length status display shows
the extended length of the telescopic
sections in percent (%).
When the Telescopic section display is
green:
On: Telescoping cylinder is locked
here
Flashing: Indicates the next possibility
for locking the telescope cylinder.
