RT9150E OPERATOR MANUAL

OVERHEAD CONTROLS AND FEATURES

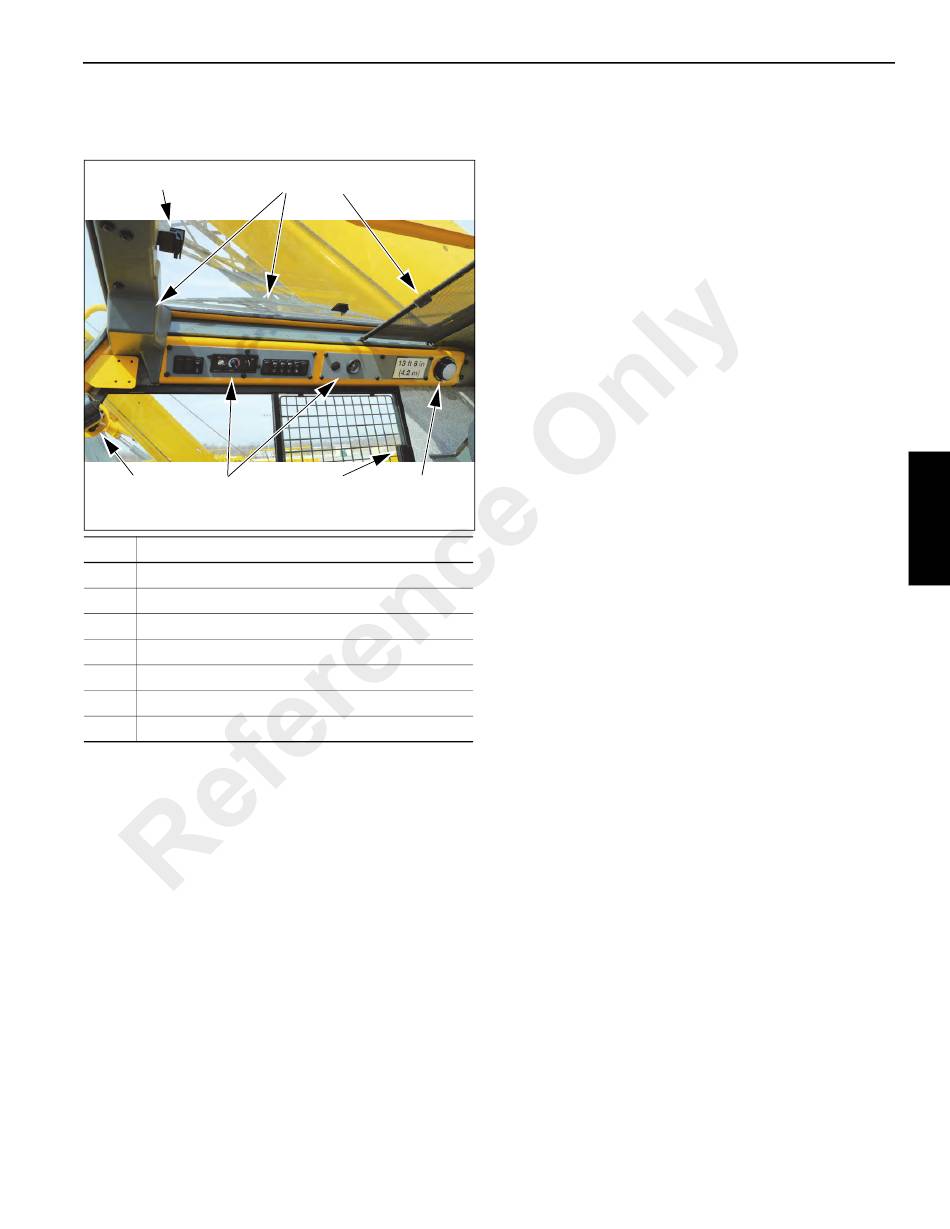

Refer to Figure 3-5.
1
4 7
8881-00
Item
1

Skylight Window Latch

2 Skylight Wiper and Motor
3

Skylight Sunscreen

4

Cab Circulating Fan

5 Window Latch
6 Cab Overhead Light
7 Overhead Console
Grove
2
3
5 6
FIGURE 3-5
Description
Published 2-23-2017, Control # 644-00
OPERATING CONTROLS AND PROCEDURES

Skylight Window Latch

The Skylight Window Latch (1) is at the front of the window.
Squeeze the latch and slide the window to the rear to open.
to close slide the window forward until the latch engages.

Skylight Wiper and Wiper Motor

The Skylight Wiper (2) is controlled by the wiper switch, (5)
(Figure 3-6), and operated by the indicated motor.

Skylight Sunscreen

The Skylight Sunscreen (3) is used to diminish direct
sunlight. The sunscreen is self retracting and can be set to
screen all the light or adjusted rearward by moving it into the
notches provided.

Cab Circulating Fan

The Cab Circulating Fan (4) is located on the right front side
of the cab, above the window frame. A swivel allows the fan
to be rotated and a switch on the fan base controls the fan.
The switch has a high, low and off position.

Right Side Window Latch

The window on the right side of the cab can be opened.
Squeeze latch (5) to release the window and slide forward.
To close slide the window rearward until the latch engages.

Overhead Light

The cab Overhead Light (6) is on the right rear corner of the
cab overhead console and provides illumination in the cab.
The Overhead Light is controlled by a switch on the light.
3
3-9
