Manitowoc Grove RT9150E Operator's Manual page 169

RT9150E OPERATOR MANUAL
Item Description
Telescope status
11
input, F9-F13
Grove
OPERATING CONTROLS AND PROCEDURES
Graphic
3
1
2
Published 2-23-2017, Control # 644-00
Explanation

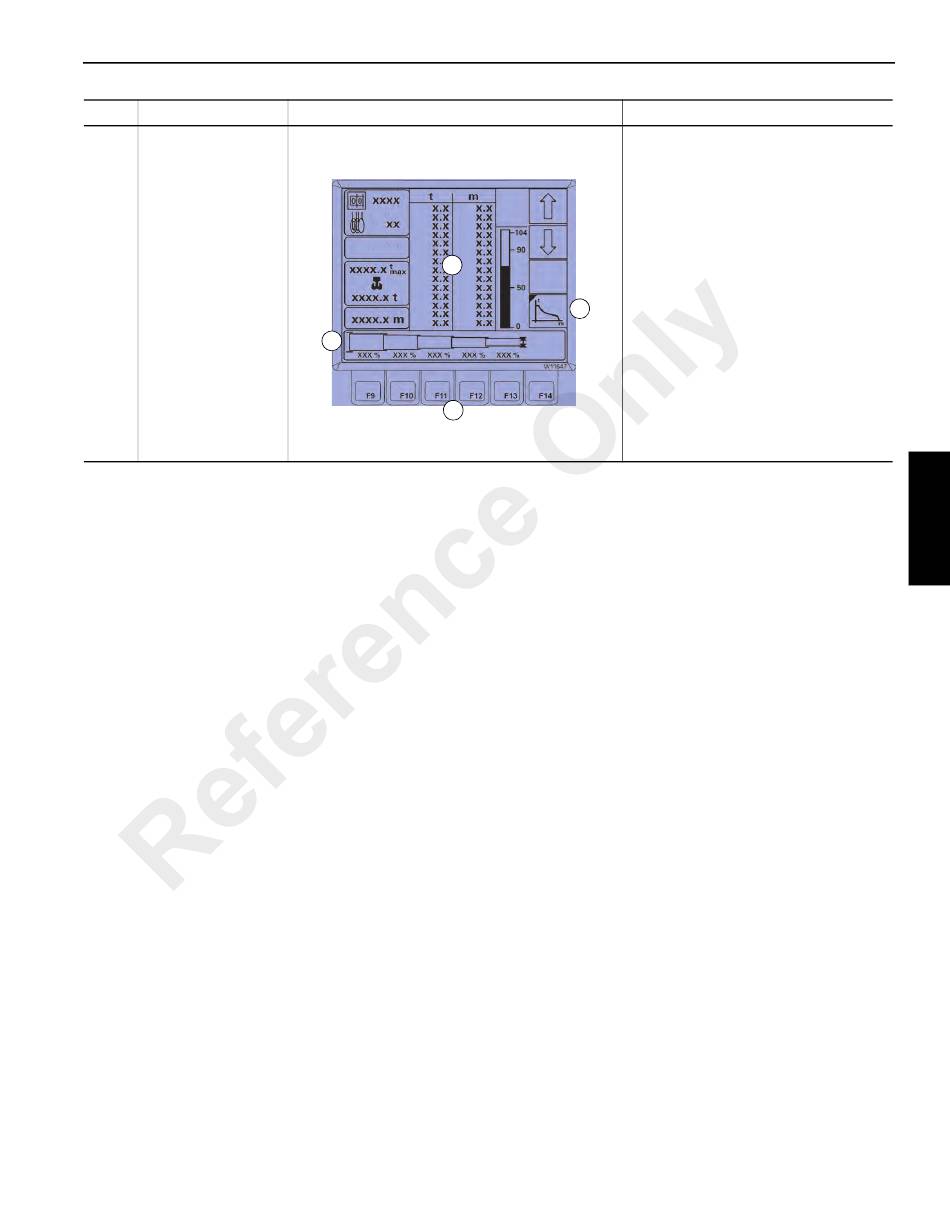

You can display the lifting capacity
tables for all permissible telescoping
statuses:
Enter the desired telescoping status
(1) with the F9 to F13 buttons (2).
The corresponding Load Chart (2) is
displayed.
In the event of impermissible
telescoping statuses, all values in the
4
Load Chart will be 0.
To display the permissible working
range for the entered RCL code and
telescope status or all permissible
telescope statuses, press the F8
button (4) to open the working range
submenu. Refer to Working Range
Submenu, page 3-96.
