OPERATING CONTROLS AND PROCEDURES

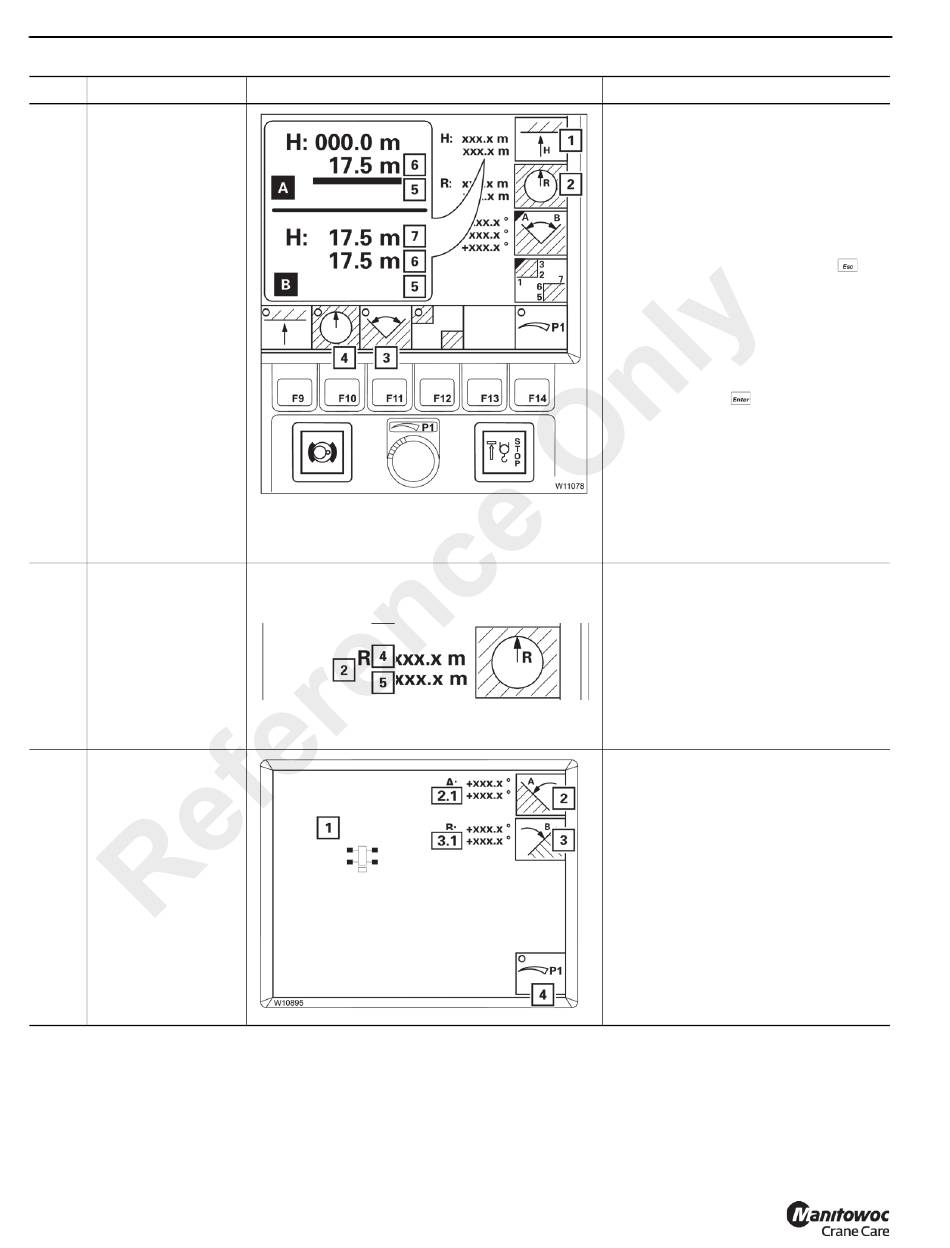

Item Description
Enter maximum
4
working radius
Maximum/Current
5 working radius
display
6 Enter swing angle
3-40
Graphic
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
Explanation
The limit values for the overall height
and the working radius are entered in
the same way.
The relevant monitoring function (3) or
(4) must be switched off, dot black.
• Press the (2) button, the bar (5)
turns red, the input mode is turned
on. To cancel input, press the
button.
• (A): Move the main boom head to
just before the shutdown point
without a load, e.g. at 17.5 m, value
(6).
• (B): Press the button. The
current value (6) is accepted as the
limit value (7). The bar (5) goes out.
The limit value for the working radius
affects the representation of defined
objects. Only points that are within the
limit value are displayed.
Switch on monitoring, see Items 9-12.
The display (2) indicates values for the
working radius.
The display shows the following
values:
(4) Limit value, red
(5) Current value, blue
In case of manual input mode switched
on, the display (5) changes.
(1) Limited swing angle display
(2) Select Swing angle A
(2.1) Maximum/Current swing angle A
display
(3) Select Swing angle B
(3.1) Maximum/Current swing angle B
display
(4) Manual input on/off
Refer to Display of the Swing Angles
and Entering the Permissible Swing
Range, page 3-42 for more information
on entering swing angles.
