Manitowoc Grove RT9150E Operator's Manual page 102

OPERATING CONTROLS AND PROCEDURES

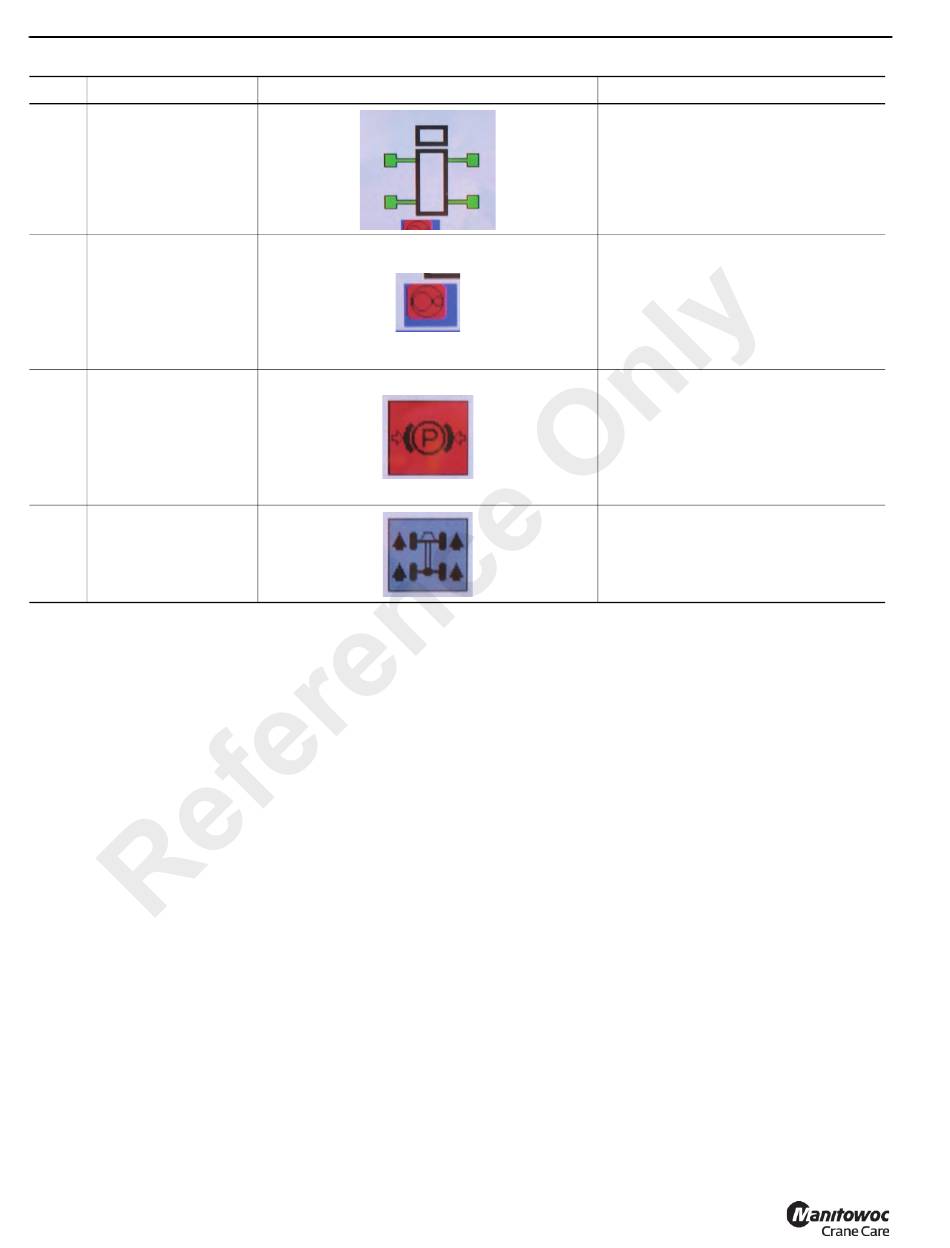

Item Description
1 Outriggers graphic
2 Swing gear indicator
Parking brake
3
indicator
Four-wheel drive
4
indicator
3-28
Graphic
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
Explanation
The outriggers graphic helps to identify
this menu only, there is no function.
• Red: Swing gear switched off,
outriggers can be deployed
• Grey: Swing gear switched on,
outrigger movement locked.
Swing gear must be off to operate the
outriggers.
• Red: Parking brake applied,
outriggers can be deployed
• Grey: Parking brake released,
outrigger movement locked.
Parking brake must be on to operate
the outriggers.
• Yellow: Four-wheel drive engaged
• Grey: four-wheel drive off.
Four-wheel drive must be engaged to
operate the outriggers.
