OPERATING CONTROLS AND PROCEDURES

RCL CONTROL UNIT

The RCL control panel (EKS 5) is located on the top right
side console. Various menus are displayed on the RCL
display. The menus are operated using buttons F1 to F14.
The individual buttons have a different function in each
menu. The functions of the buttons in the display menu
correspond to the symbols next to or above the buttons. After
Item
RCL display
1
Main menu overview
2 Sensor for brightness
3 Error/warning message
4 Buttons F1 to F14
5 Sensor for brightness
Opening the Error submenu
6
Error submenu overview
3-68
Description
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
the button is pressed and released, the function displayed is
executed.

Common Elements

This section describes the operating elements that are the
same for all menus.
Item
7 Exiting the submenu/input mode
8 Acknowledgement
9 RCL early warning
10 Entering values
11 RCL shutdown
12 Input confirmation
Refer to the following table for a description of each item
listed above.

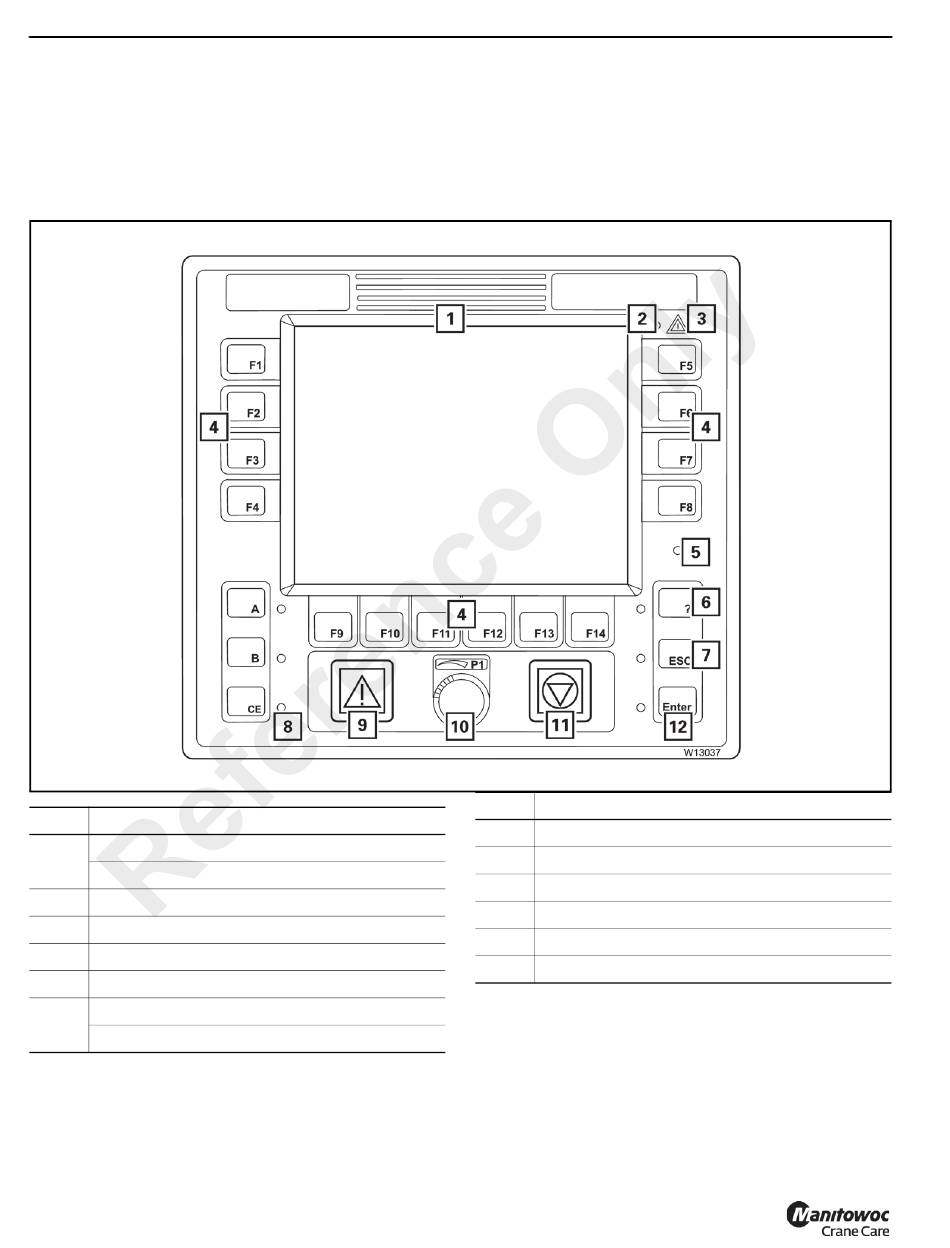

FIGURE 3-68
Description
