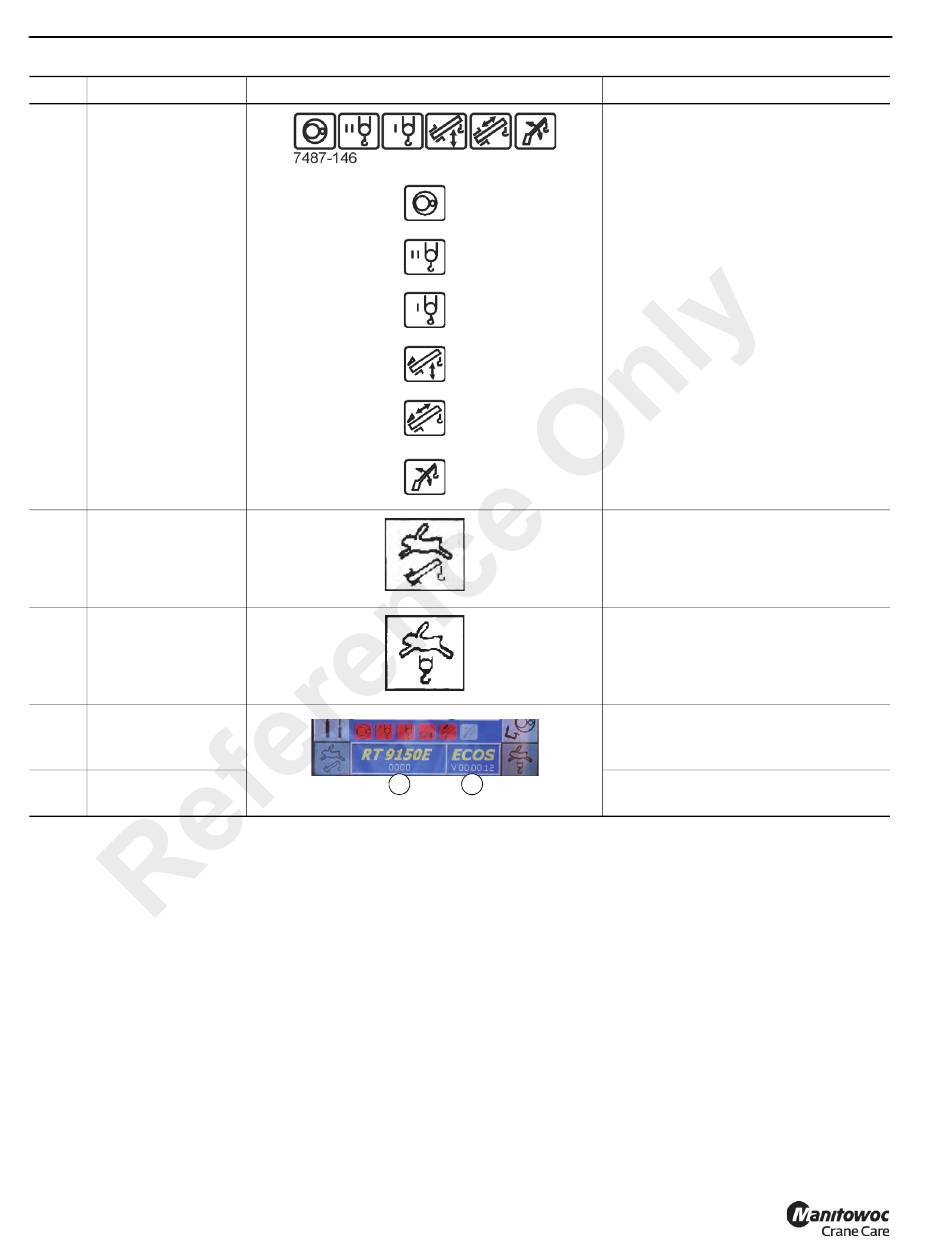

OPERATING CONTROLS AND PROCEDURES
Item
Description
Power Units
Display
Swing Gear
Auxiliary Hoist
15
Main Hoist
Lift Cylinder
Telescope
Cylinder
Raise/Lower
Luffing Jib
(Optional)
High speed lift/
16
telescope
High speed hoist
17
(Main or Auxiliary)
Serial Number
18
Display
Program Version
19
Display
3-26
Graphic
1
2
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
Explanation
The Power Units Display consists of
six icons that indicate when the
associated function is active.
• Green: Swing gear on
• Red: Swing gear off
• Green: Auxiliary hoist on
• Red: Auxiliary hoist off
• Green: Main hoist on
• Red: Main hoist off
• Green: Lift cylinder on
• Red: Lift cylinder off
• Green: Telescoping mechanism on
• Red: Telescoping mechanism off
• Green: Luffing cylinder on
• Red: Luffing cylinder off
Switch located on top of left-hand
joystick controller.
Gray: High speed off
Yellow: High speed engaged.
Switch located on top of right-hand
joystick controller.
Gray: High speed off
Yellow: High speed engaged.
(1) Shows the serial number which is
on the name plate on the
superstructure.
(2) Shows the current ECOS program
version.
