Objects
Objects are entered in a submenu.
Press the button (1) (Figure 3-37) once.
The Enter objects submenu (Figure 3-38) opens.
Grove

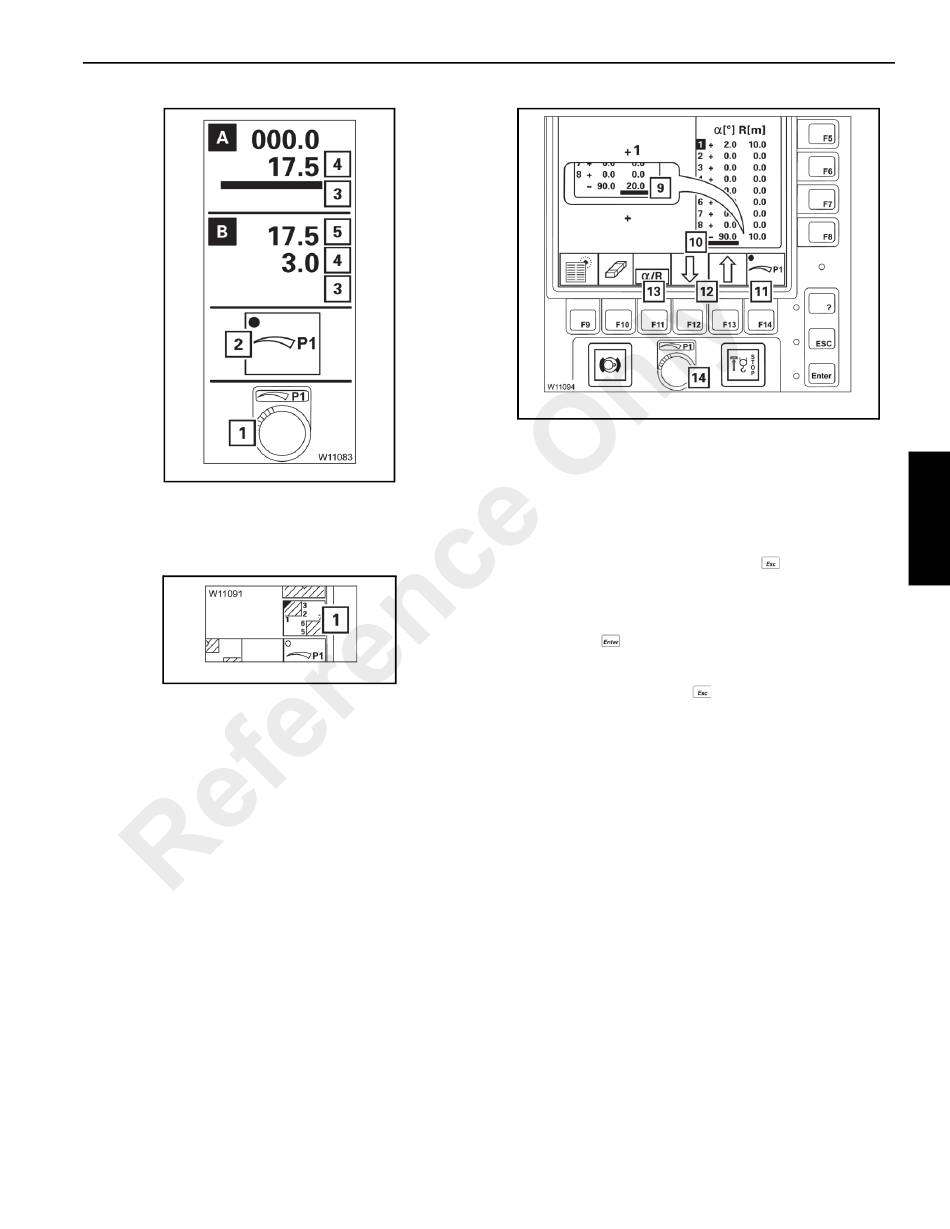

FIGURE 3-36
FIGURE 3-37
Published 2-23-2017, Control # 644-00
OPERATING CONTROLS AND PROCEDURES
1. With the buttons (12), select the desired point, e.g. point
1, it turns blue.
2. Press the button (11) once, the dot turns green, manual
input on.
3. With the button (13) select either the swing angle, bar
(10) turns red or the working radius, bar (9) turns red,
input on. To cancel input, press the
4. Enter the new values, e.g. –90.0° and 20.0 m with the
switch (14).
5. Press the button once. The new values for point 1
are accepted.
To end your input, press the
(10) goes out, display shows the current main boom position,
The dot (11) turns black, manual input off.
FIGURE 3-38
button once.
button once. The bar (9) or
