OPERATING CONTROLS AND PROCEDURES
Item Description

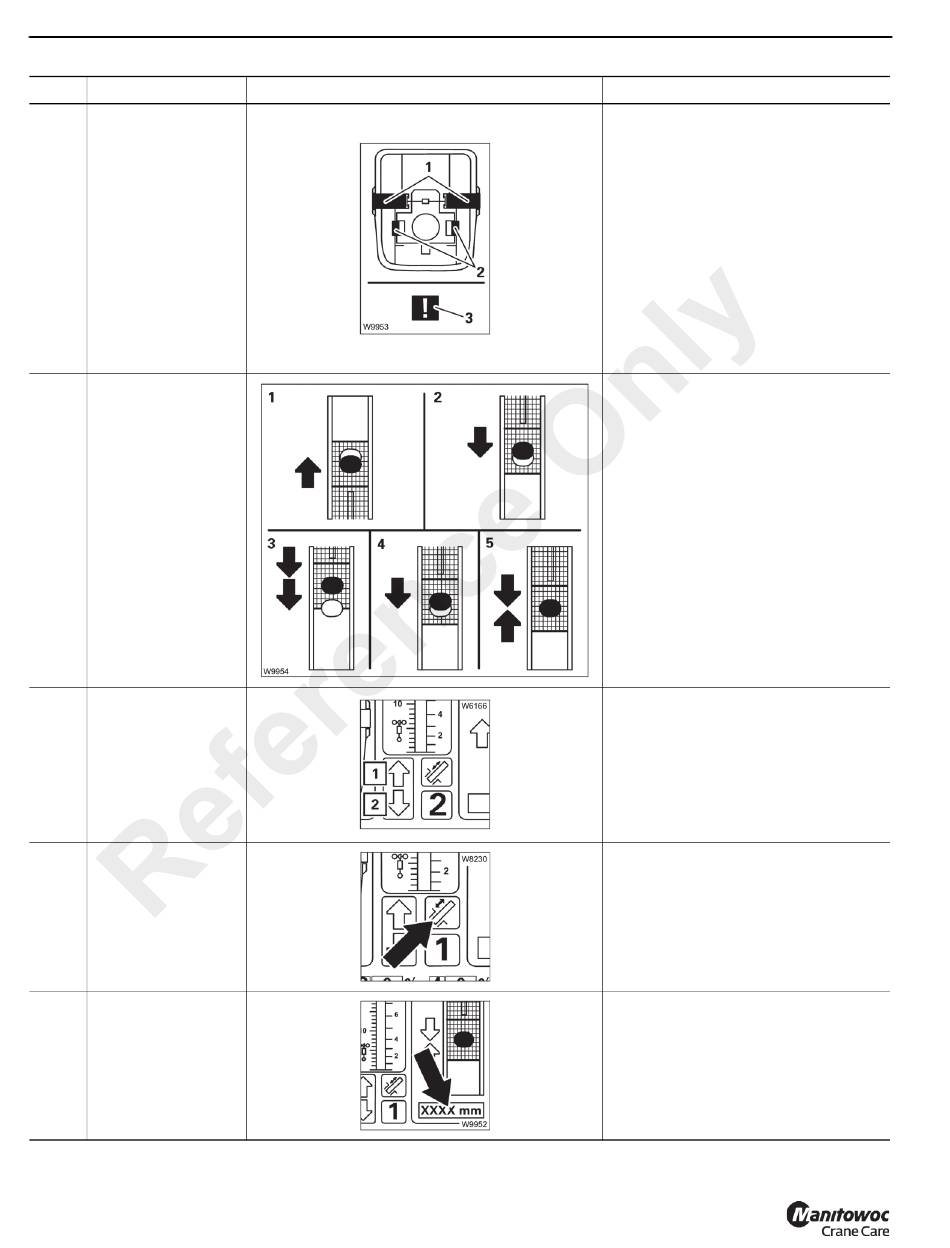

5 Lock status display
Locking point
6
alignment
Telescope cylinder
7
status
Telescope function;
8
on/off
Telescope cylinder
9
length
3-34
Graphic
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
Explanation
Depending on which is selected, the
locking pins change position and color.
Locking pins
(1) On the telescopic section
(2) On the telescope cylinder
• Green: Locked
• Red: Unlocked
• Yellow: Intermediate position
• Violet: Error, symbol (3)
Refer to Description of Telescope
Section Views, page 3-36.
The arrow indicates the direction of
travel to the locking point:
(1) Extend telescoping cylinder
(2) Retract telescoping cylinder
The color of the arrow(s) indicate the
distance to the locking point:
(3) Yellow: Approx. 1 m (3.3 ft)
(4) Yellow: Less than 1 m (3.3 ft)
(5) Green: At the locking point
(1) Extending
Red: Blocked
Green: Released
(2) Retracting
Red: Blocked
Green: Released
• Green: Telescoping mechanism on
• Red: Telescoping mechanism off
Use the switch located on the right
armrest controls to turn the telescope
function on or off, refer to Boom
Telescope Switch, page 3-12.
The current extended length of the
telescoping cylinder is displayed in
millimeters.
