RT9150E OPERATOR MANUAL
OUTRIGGERS SUBMENU
The following information describes the Outrigger Submenu,
for information on deploying the outriggers refer to Deploying
the Outriggers, page 3-124.
DANGER
Crushing Hazard
Only activate the outriggers if you or a helper, with whom
you are in visual contact, have an unobstructed view of
their movements.
The outriggers must be properly extended and set and the
crane level before any other operation of the crane on
outriggers is attempted.
When operating the crane on outriggers, the outriggers
should always be fully extended or locked in the mid-
extend position, depending on the load chart being used.
Death or serious injury may result from improper crane
setup on outriggers.

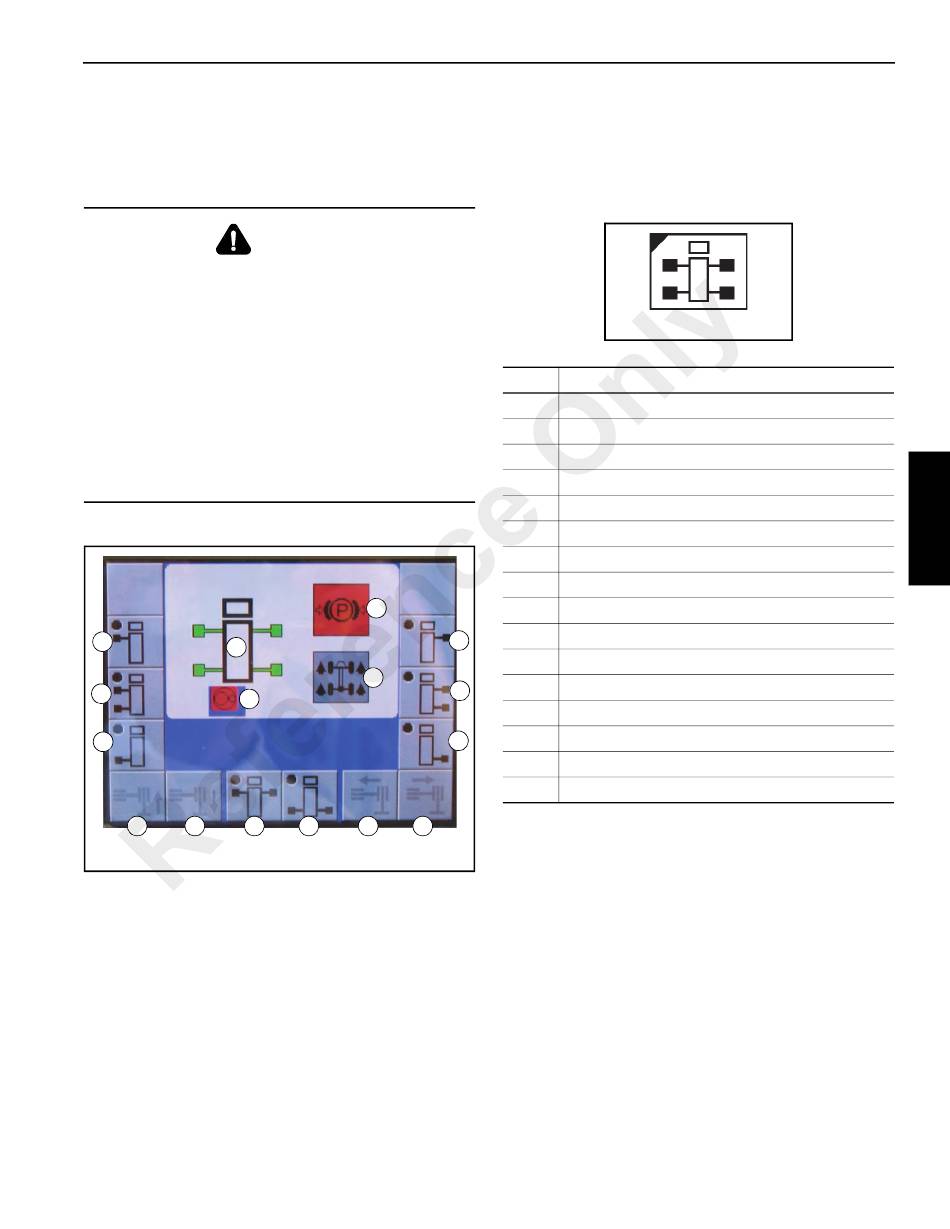

Outriggers Submenu
5
1
6
2
7
13 14 11
Grove
3
8
4
9
10
12 15 16
FIGURE 3-15
Published 2-23-2017, Control # 644-00
OPERATING CONTROLS AND PROCEDURES
Press the outriggers submenu button (Figure 3-16) in the
main menu to open the submenu.
NOTE: The machine must be in four-wheel drive with the
p a r k i n g b r a k e O N i n o r d e r t o o p e r a t e t h e
outriggers.
Item
1 Outriggers graphic
2 Swing gear indicator
3 Parking brake indicator
4 Four-wheel drive indicator
5 Left front outrigger; on/off, F2
6 Left side jacks; on/off, F3
7 Left rear outrigger; on/off, F4
8 Right front outrigger; on/off, F6
9 Right side jacks; on/off, F7
10 Right rear outrigger; on/off, F8
11 Front jacks; on/off, F11
12 Rear jacks; on/off, F12
13 Retract jack cylinder(s), F9
14 Extend jack cylinder(s), F10
15 Retract outrigger beam(s), F13
16 Extend outrigger beam(s), F14
Refer to the following table for a description of each item
listed above.
FIGURE 3-16
Description
3
3-27
