Item Description
Setting control lever
2
characteristics, F2
Setting the display
3
brightness, F3
Grove
OPERATING CONTROLS AND PROCEDURES
Graphic
1
Published 2-23-2017, Control # 644-00
Explanation

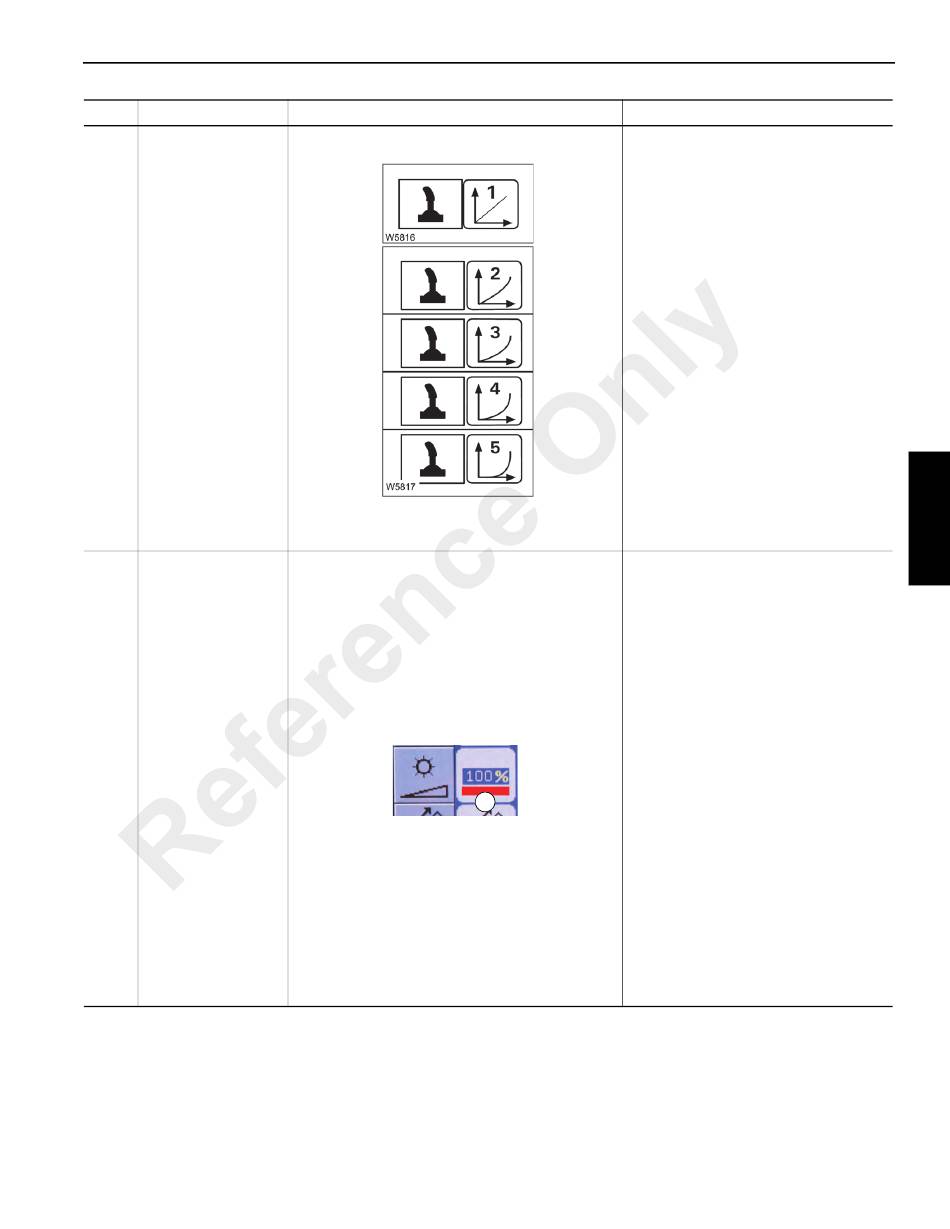

The characteristic curve that is
currently set is shown on the display.
• Repeatedly press the F2 button until
the desired characteristic curve is
displayed.
There are five characteristic curves:
• Linear characteristic curve (1); the
movement of the control levers
effects a uniform speed increase.
Even small movements of the
control lever will produce a high
speed.
• Progressive characteristic curves
(2) to (5); the speed is kept lower in
the front range of the movement
than with characteristic curve (1)
and increases only with larger
movements.
The higher the number of the
characteristic curve, the further the
control lever must be moved to
instigate a clear increase in speed.
Press the F3 button once.
A red bar (1) appears below the
display. Set the required minimum
degree of brightness with the
adjustment knob.
The brightness of the display changes
during the setting procedure and you
can view the set value (0 to 100%) on
the display (1).
The degree of brightness which you
set here is the minimum value for the
automatic regulation.
There is no automatic regulation if you
set 100%, the displays will be set at
maximum brightness.
You can cancel the entry at any time
using the Esc button. The settings are
then reset.
To accept your setting, press the Enter
button once. The red bar below the
display goes out. The brightness is
automatically regulated between the
newly set value and 100%.
