OPERATING CONTROLS AND PROCEDURES

POWER UNIT SPEED SUBMENU

You can enter a percent of the maximum speed that should
be enabled for each power unit. The values entered are the
maximum speeds allowed, the power units can be operated
from 0 up to the set speeds.
NOTE: Depending on the crane configuration and
c o n d i t i o n s t h e m a x i m u m s p e e d s m a y b e
automatically limited by the ECOS system. The
automatically limited values are not displayed.

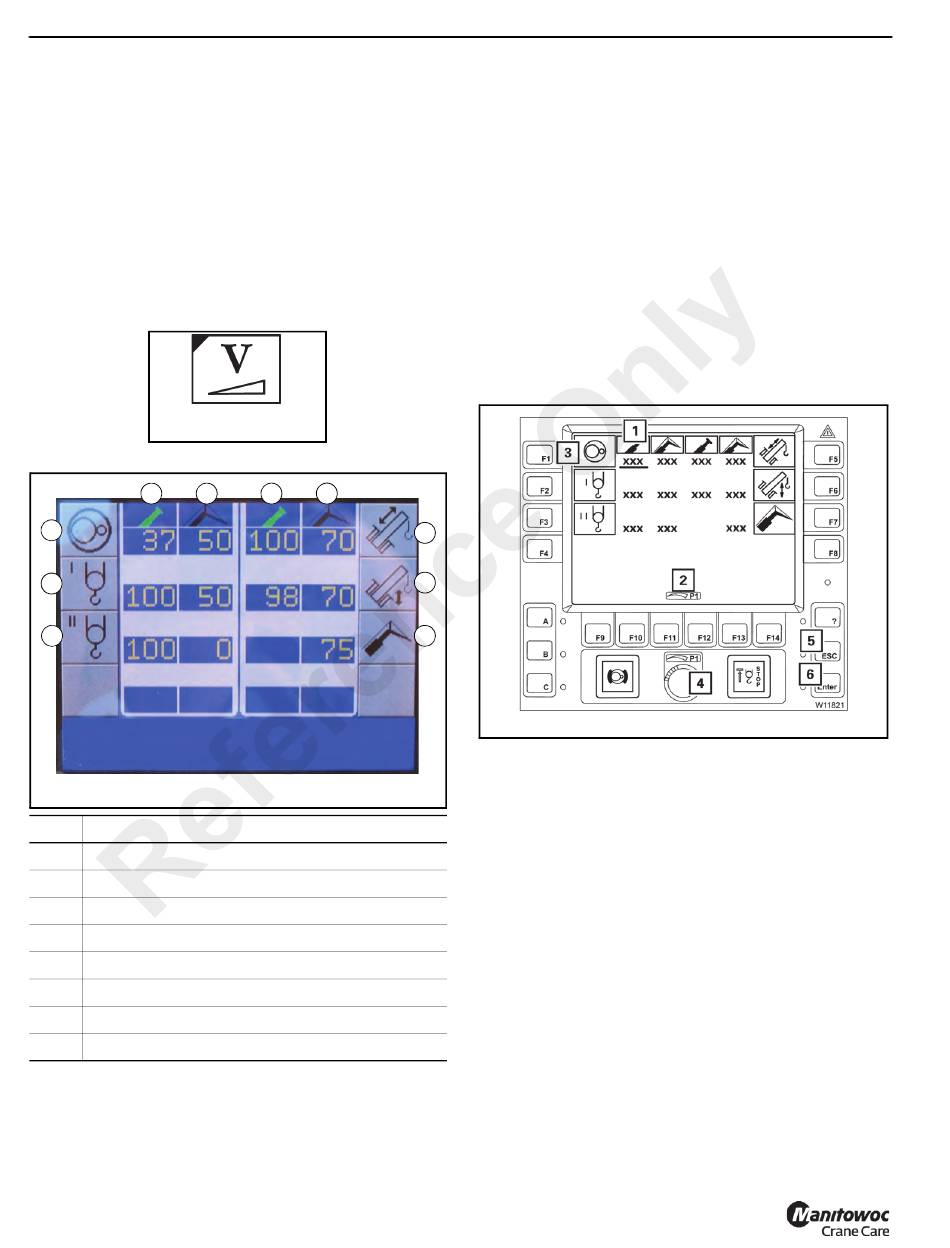

Press the power unit speed submenu button (Figure 3-42) in
the main menu to open this submenu.

Power Unit Speed Submenu

A B
1
2
3
Item
A Main boom
B Main boom with extension
1 Swing gear, F1
2 Main hoist, F2
3 Auxiliary hoist, F3
4 Telescope, F5
5 Lift, F6
6 Luffing jib, F7
3-48
FIGURE 3-42
A B
FIGURE 3-43
Description
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
The symbols for the main boom (A) or boom with extension
(B) (Figure 3-43) for the current operation will be green,
indicating which configuration is active. To use the boom
extension, symbol (6) must be active, press the F7 button.
The values below the green symbols indicate the maximum
speeds that can be used for that function.
The values for the swing gear, telescope cylinder and lift
cylinder only apply if they are lower than the automatically
limited values.
Changing values
Example: Referring to (Figure 3-44):
1. Press the F1 button (3) for the swing gear until the red
bar is under the desired value (1), input mode is now on,
indicated by the input icon (2).
4
5
6
2. Change the value using the knob (4).
To cancel the input, press the Esc button (5) once.
If necessary, change the values for other power units in the
same way.
Confirm the changed values by pressing the Enter button (6)
once. All changed values are accepted.
FIGURE 3-44
