Manitowoc Grove RT9150E Operator's Manual page 164

OPERATING CONTROLS AND PROCEDURES

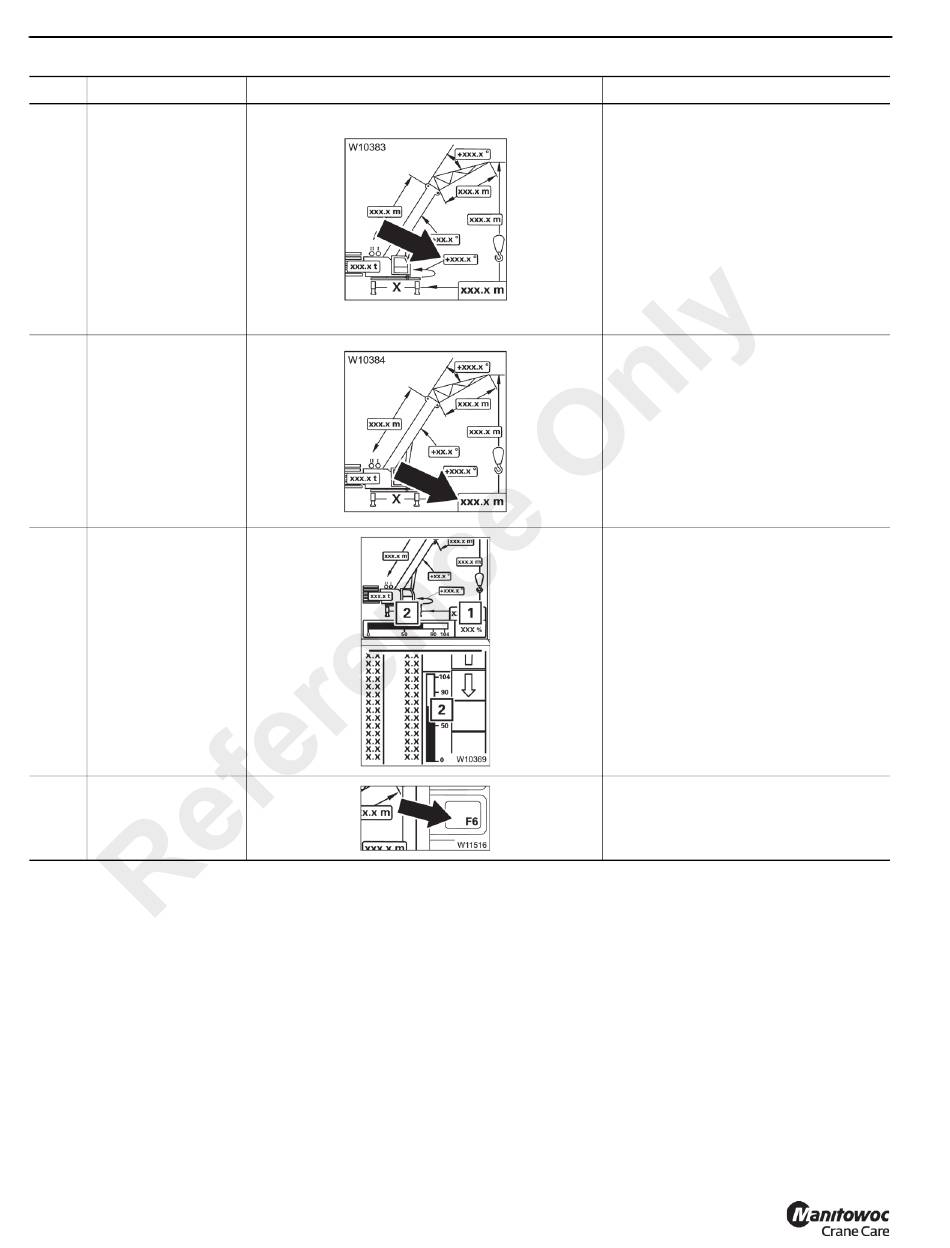

Item Description
Current swing
15
angle display
Current working
16
radius
Current percent of
17
maximum load
Load Chart
18
submenu, F6
3-90
Graphic
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
Explanation
Shows the angle of the current
superstructure position.
0° means that the superstructure is
swung to the front.
• 0°: Position 0° to the front
• 180°: Position 180° to the rear
• +0.1 to +180.0°: Turned to the right
from 0°
• –0.1 to –179.9°: Turned to the left
from 0°
Shows the current working radius =
horizontal distance between the
turntable axis and the hook block axis.
The displayed value is calculated on
the basis of the telescoping and the
main boom or boom extension angle.
The value is displayed either in meters
(m) or feet (ft), depending on the
setting.
The percent of max. load shows the
weight of the current load as a
percentage of the maximum possible
load. The display (1) indicates the
percentage value. The display (2)
shows the ranges in different colors:
• Blue: 0 - 90%
• Yellow: Approx. 90 -100%, early
warning
• Red: Greater than 100%, shutdown.
Press the F6 button to open the Load
Chart submenu.
