OPERATING CONTROLS AND PROCEDURES
Tables for Approaching the Locking Points
The extent to which the telescope cylinder has to be
extended in order to reach a locking point depends on
whether you:
- Want to lock the telescope cylinder or
- lock a telescopic section.
Locking Points for the Telescoping Cylinder
The following table shows the extended length for locking the
telescoping cylinder.
Table for locking the telescoping cylinder
Telescopic Locking point
Section at fixed length
%
0
Telescopic
50
Section 1
100
0
Telescopic
50
Section 2
100
0
Telescopic
50
Section 3
100
0
Telescopic
50
Section 4
100
0
Telescopic
50
Section 5
100
3-154
Extended length of the
telescoping cylinder
mm ft
5 0.02
4,792 15.72
9,578 31.42
331 1.09
5,079 16.67
9,828 32.24
627 2.06
5,348 17.55
10,071 33.04
918 3.01
5,587 18.33
10,257 33.65
1,200 3.94
5,810 19.06
10,424 34.20
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
Locking Points for the Telescopic Sections

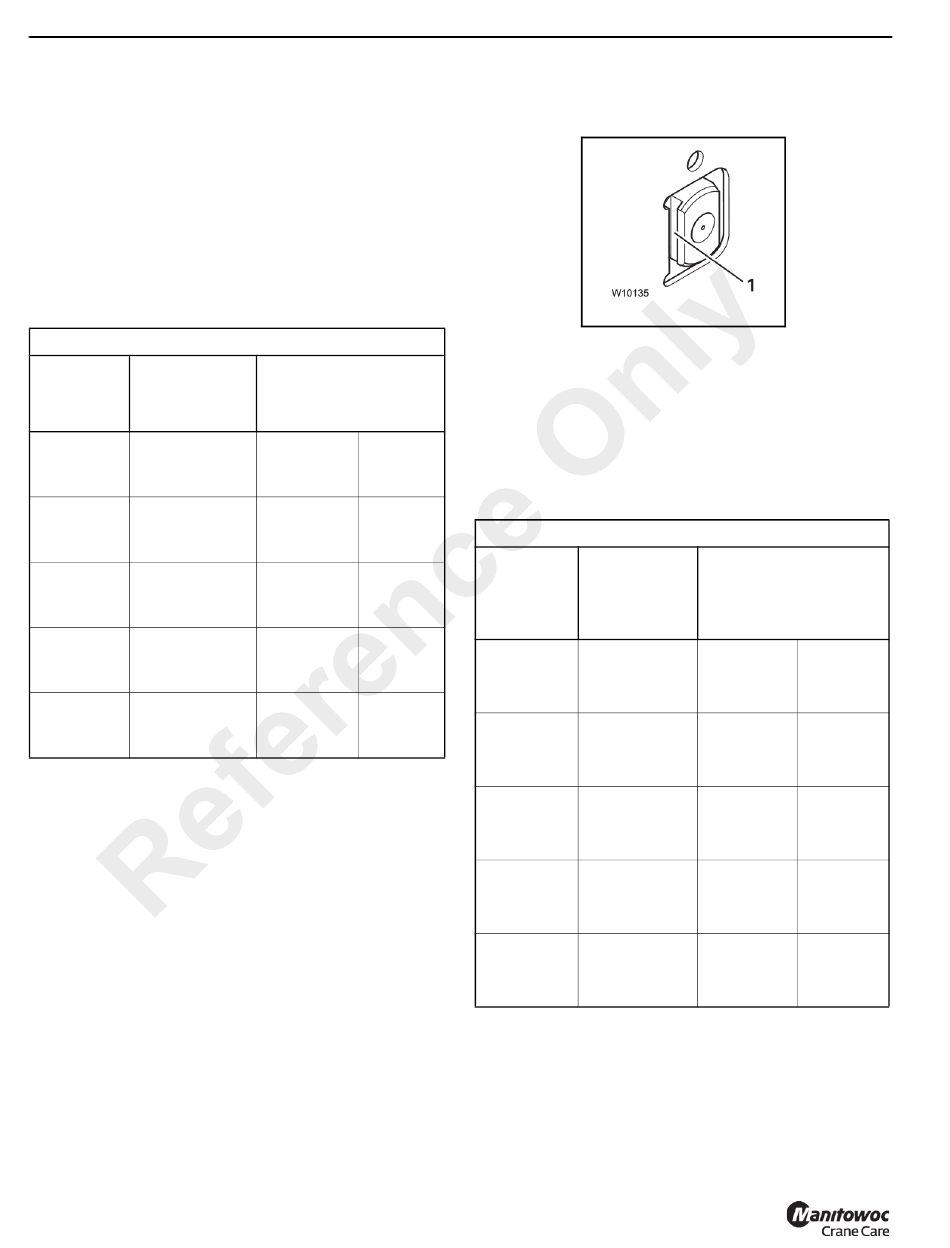

Refer to Figure 3-188.
The locking pin must not engage the telescopic section for
locking or unlocking it.
The notch (1) must be clear. That is why you have to extend
the telescoping cylinder 0.38 in (35 mm) further than with a
return run.
The following table shows the extended length for locking
and unlocking the telescopic sections.
Table for locking/unlocking the telescopic sections
Locking
Telescopic
point at fixed
Section
length
%
0
Telescopic
50
Section 1
100
0
Telescopic
50
Section 2
100
0
Telescopic
50
Section 3
100
0
Telescopic
50
Section 4
100
0
Telescopic
50
Section 5
100
FIGURE 3-188
Extended length of the
telescoping cylinder
mm ft
40 0.13
4,827 15.84
9,613 31.54
366 1.20
5,114 16.78
9,863 32.36
662 2.17
5,383 17.66
10,106 33.15
953 3.12
5,622 18.44
10,292 33.76
1,235 4.05
5,845 19.18
10,459 34.31
