SET-UP AND INSTALLATION

BOOM EXTENSIONS

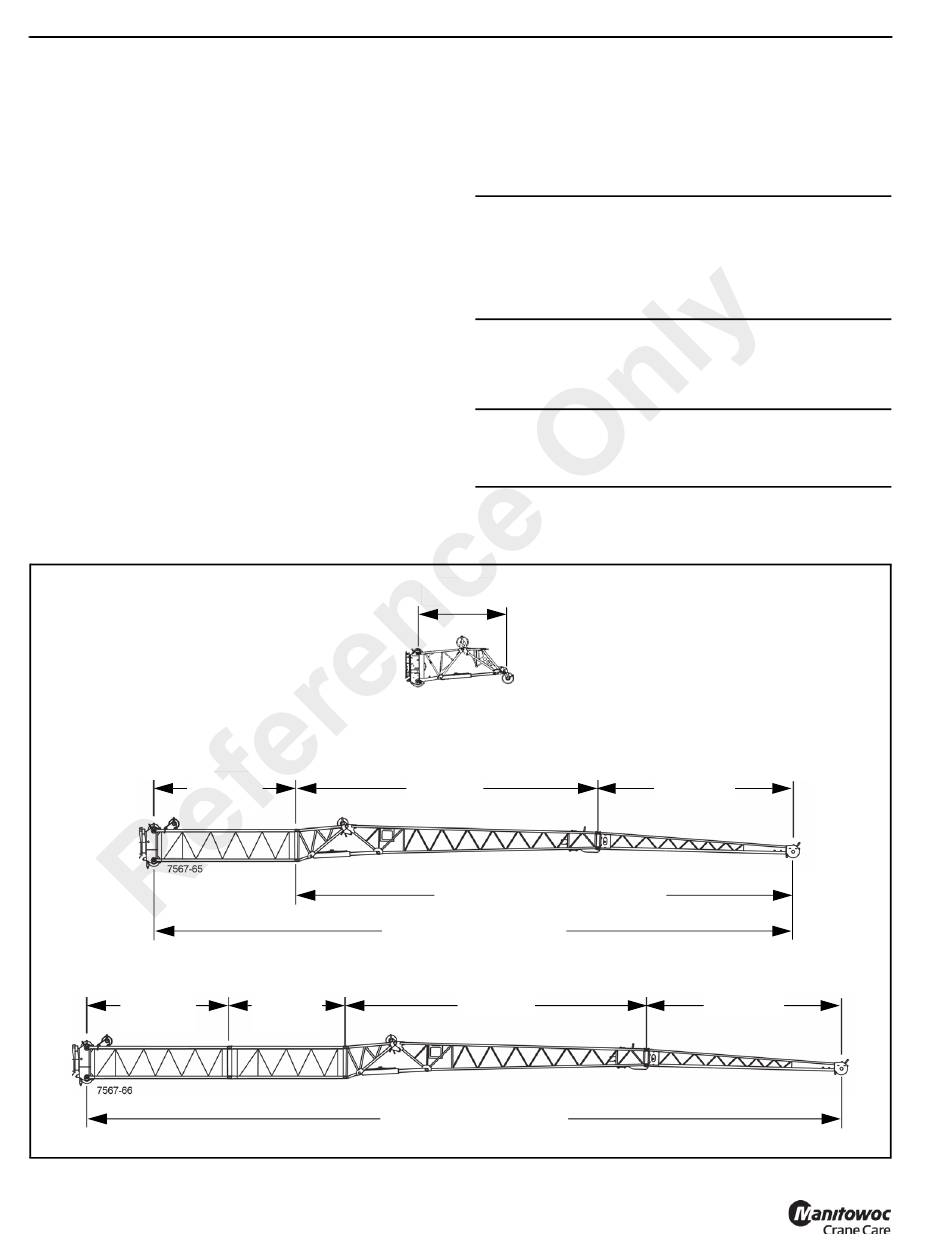

Refer to Figure 4-25 for a diagram of the boom extensions
available for this crane.
The RT9150E can be used with the following boom
extensions:
• 36 ft to 59 ft (11 m to 18 m) manual offsettable bi-fold
swingaway boom extension (folding manual luffing
extension), with mechanical offset mechanism for
offsets of 0, 20, & 40 degrees, as standard—unless it
was explicitly not ordered.
• 36 ft to 59 ft (11 m to 18 m) hydraulic offsettable bi-fold
swingaway boom extension (folding hydraulic luffing
extension), with hydraulic offset mechanism for offsets
of 0 to 40 degrees.
• 11.8 ft (3.6 m) heavy duty six-sheave hydraulic
offsettable boom extension (heavy duty extension), with
hydraulic offset mechanism for offsets of 0 to 40
degrees.
• 26 ft. (8 m) base extension insert (26 ft insert) to use with
any of the 36 ft. to 59 ft. (11 m to 18 m) folding
extensions.
26 ft (8 m)
Extension
Insert
26 ft (8 m)
Extension
Insert
4-24
11.8 ft (3.6 m)
12 ft (3.6 m)
Heavy Duty Boom Extension
36 ft (11 m)
Extension
85 ft (22 m) Boom Extension
19.6 ft (6 m)
Extension
Insert
105 ft (32 m) Boom Extension
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
• 19.6 ft. (6 m) extension insert (20 ft insert) to be used
with the 26 ft insert and any of the folding extensions.
All boom extensions are built specifically for the crane with
which they were sold. Each extension is stamped with the
crane's serial number.
Equipment Damage Hazard!
Operate the crane only with extensions which have the
same serial number as the crane, to prevent malfunctions
and damage to the equipment.
To use extensions on several Grove cranes, the extensions
and cranes must be adjusted. Label all extensions with the
respective crane serial numbers.
Have the adjustment of the boom extension carried out
only by Manitowoc Crane Care.
Extension
59 ft (22 m) Folding Boom Extension
36 ft (11 m)
Extension
CAUTION
CAUTION
23 ft (7 m)
Extension
23 ft (7 m)
Extension
FIGURE 4-25
