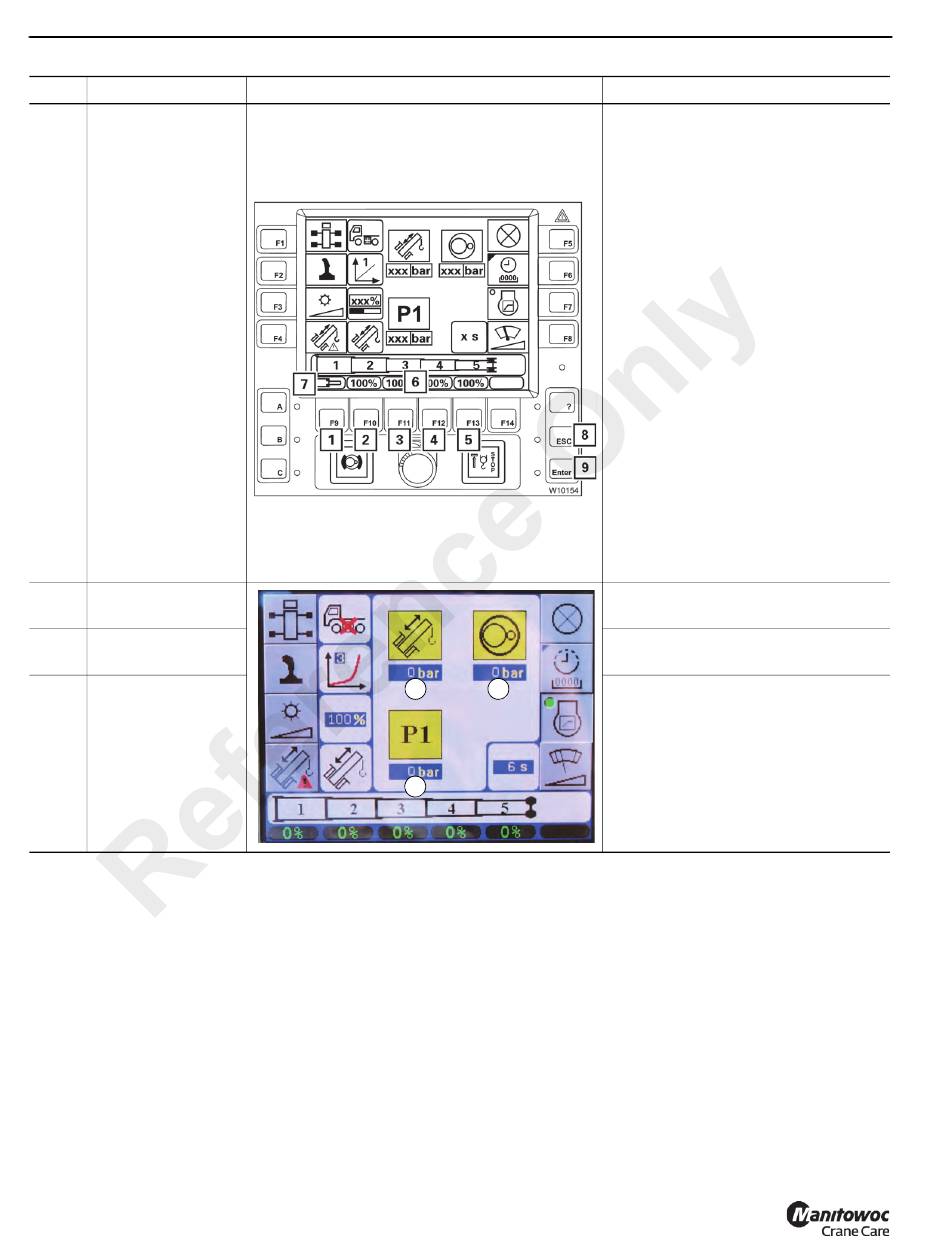

OPERATING CONTROLS AND PROCEDURES
Item Description
Current telescope
8
status display
Telescope cylinder
9
hydraulic pressure
Swing gear
10
hydraulic pressure
Hydraulic circuit
11
pressure
3-56
Graphic
10 11
12
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
Explanation
If the telescope status is no longer
displayed you must enter the current
telescope values from the RCL display.
The display (6) shows the values for
telescopic sections 1 to 5.
To enter set values:
Press one of the buttons (1) to (5), the
values in the display (6) turn yellow.
Each time you press a button, the
corresponding value in the display (6)
switches continuously between the
fixed lengths and the symbol (7) for
unlocked.
Enter the desired set values for all
telescopic sections from the RCL.
You can cancel the entry at any time
using the Esc button (8).
To confirm the entered values, press
the Enter button (9) once.
You must now accept the values, refer
to Entering the Current Telescope
Status, page 3-60 for more information.
Current pressure in bar for the
telescope cylinder (10).
Current pressure in bar for the slewing
gear (11).
Current pressure in bar (12) for
movements of the following:
• Hoists
• Lift cylinder
• Counterweight cylinders
• Incline cab
• Locking units
