RT9150E OPERATOR MANUAL

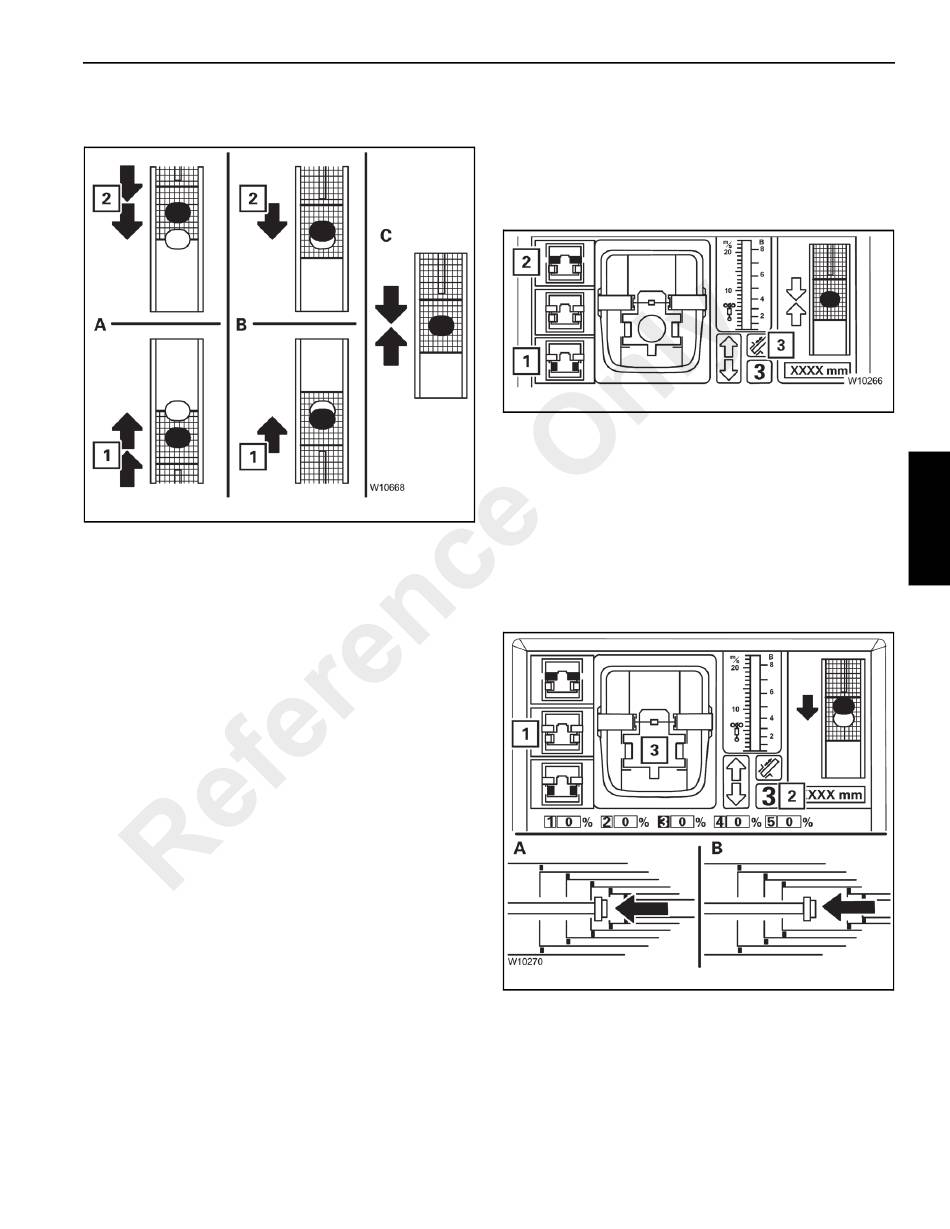

Near a locking point, the display (3) indicates the following,
refer to (Figure 3-163):
•
The distance to the locking point;
(A) Yellow: Approx. 1 m (3.3 ft)
(B) Yellow: Less than 1 m (3.3 ft)
(C) Green: At the locking point
and
•
The direction of travel to the locking point;
(1) Extending
(2) Retracting
Grove
OPERATING CONTROLS AND PROCEDURES
Lock Telescope Cylinder
The telescope cylinder must be locked to a telescopic
section so that the telescopic section can be moved.
Prerequisites
Refer to Figure 3-164.
In order to lock the telescope cylinder the following
conditions must be met:
•
The telescoping mechanism must be on, symbol (3)
green
FIGURE 3-163
•
The telescopic section must be locked, symbol (2) grey
•
The telescope cylinder must be unlocked, symbol (1)
yellow.
To Select Lock
Refer to Figure 3-165.
1.
Move the telescope cylinder to the desired locking point,
e.g. to telescopic section 3.
Wait until the display (2):
(A): shows the desired telescopic section or,
(B): shows no telescopic section and the desired
Published 2-23-2017, Control # 644-00
FIGURE 3-164
3
FIGURE 3-165
3-143
