OPERATING CONTROLS AND PROCEDURES
Hydraulic Boom Extension Operation — Remote
Station

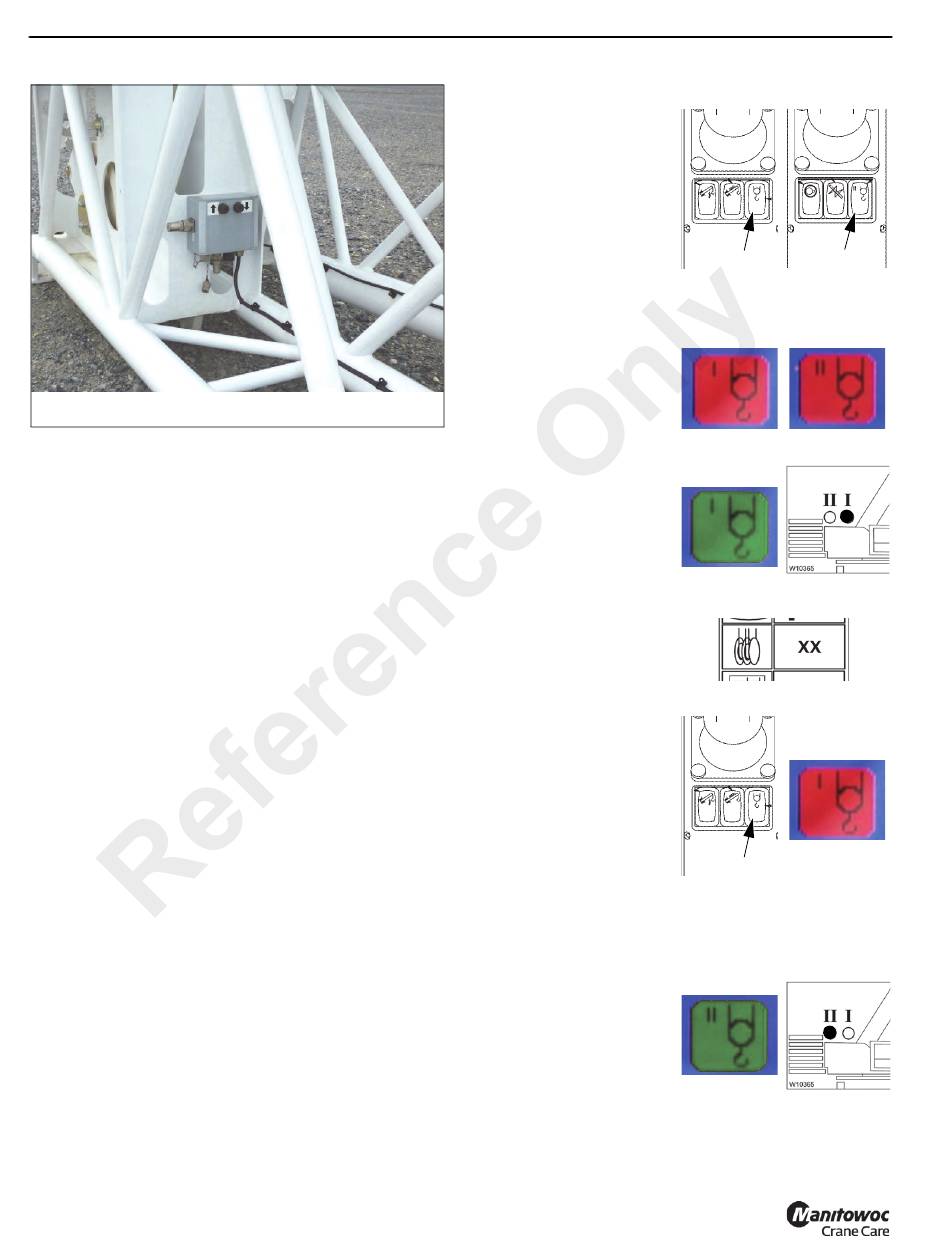

When using the remote station (Figure 3-190) to operate the
hydraulic luffing jib, press the button until the desired angle is
reached or until the end position or a switch-off point is
reached.
To lower or raise the hydraulic luffing jib, using the remote
station:
-
To lower the jib: push the right button,
-
To raise the jib: push the left button.
Two Hook-Operation
Two-hook operation is permissible only when one of the
following is installed:
-
Swingaway boom extension
-
Auxiliary single-sheave boom nose
-
Heavy load boom extension.
For two-hook operation, both hoists must be activated on the
RCL.
NOTE:
Enter the reeving for both hoists before reeving the
boom. The values are stored and opened directly
when switching hoists. This eliminates the need for
input later during operation.
3-158
1.
Switch off both hoists by
p r e s s i n g e a c h h o i s t
switch once.
2.
The ECOS indicators
must turn red.
FIGURE 3-190
3.
Switch on the main hoist
by pressing its switch on
the right-hand controls.
T h e E C O S i n d i c a t o r
t u r n s g r e e n a n d t h e
main hoist lamp I lights.
4.
In the reeving display,
enter the quantity of
reeved ropes of the
main hoist on the main
boom.
5.
Switch off the main hoist
by pressing the switch
once.
The ECOS indicator will
turn red.
Now the reeving for the main hoist has been stored and you
can switch to the auxiliary hoist.
6.
Switch on the auxiliary
hoist by pressing its
switch on the left-hand
controls.
T h e E C O S i n d i c a t o r
t u r n s g r e e n a n d t h e
auxiliary hoist lamp II
lights.
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
Main Hoist
Right-hand
Controls
Main Hoist
Aux. Hoist
Left-hand
Controls
Auxiliary Hoist
