RT9150E OPERATOR MANUAL

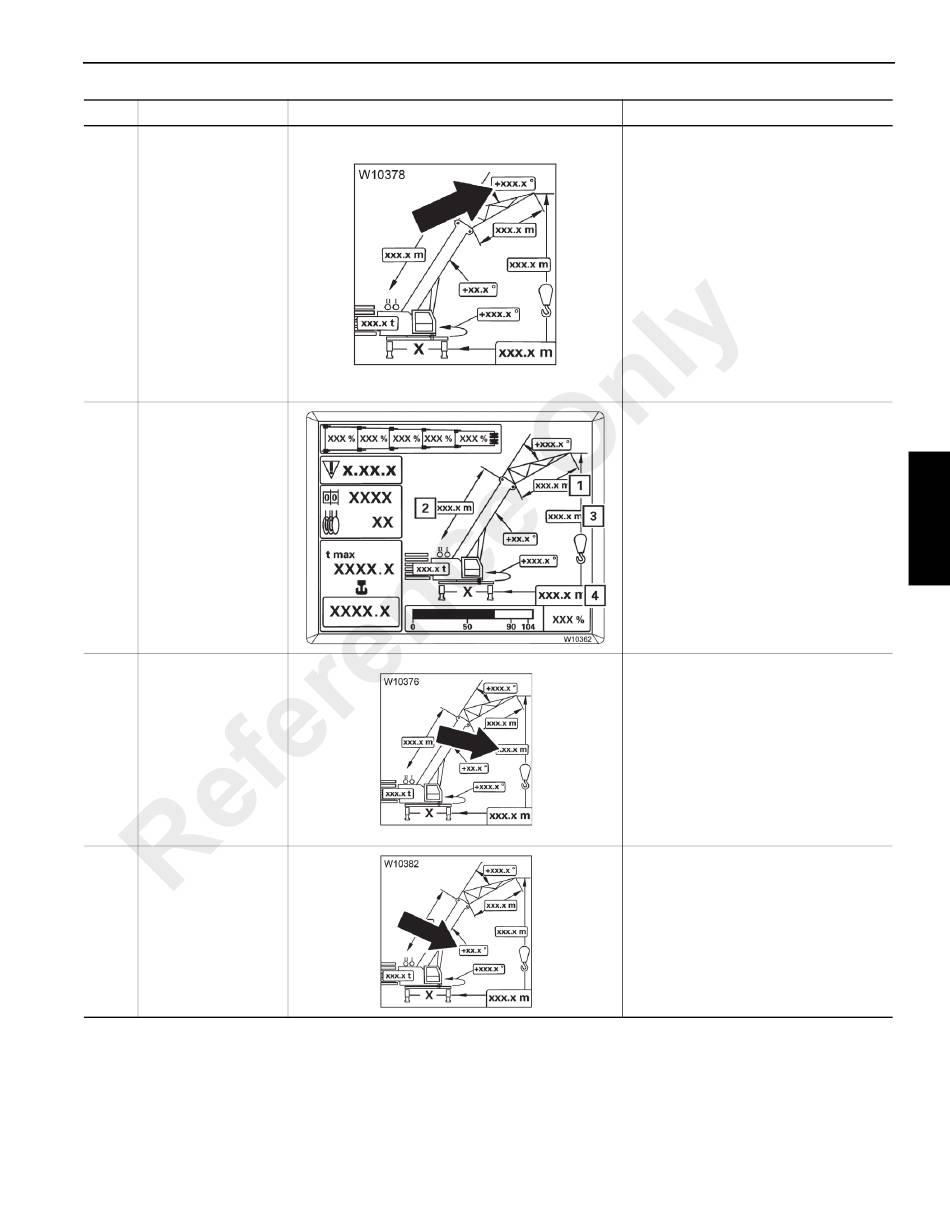

Item Description
Boom extension
11
angle display
Current length of
12
boom extension
Current overall
13
height
Current main
14 boom angle
display
Grove
OPERATING CONTROLS AND PROCEDURES
Graphic
Published 2-23-2017, Control # 644-00
Explanation
With a boom extension installed and
the proper RCL code entered, the
following is displayed:
• Hydraulic boom extension; the
current angle, in degrees (°),
between the boom extension and
main boom.
• Offsettable boom extension; the
angle, in degrees (°), between boom
extension and main boom, for the
displayed RCL code.
If the displayed RCL code does not
apply to a boom extension, there is no
display of the extension.
(1) Current length of boom extension
in meters (m).
If the displayed RCL code does not
apply to a boom extension, there is
no display of the extension.
Overall height is the vertical distance
between the lower edge of the
outrigger pad and the highest point of
the main boom or boom extension. The
displayed value applies to fully
extended support cylinders on the
largest outrigger span.
The value is displayed either in meters
(m) or in feet (ft), depending on the
setting.
Shows the current main boom angle in
relation to the horizontal. Angles below
the horizontal are displayed with a
minus sign, e.g. –3°.
