OPERATING CONTROLS AND PROCEDURES

WORKING RANGE SUBMENU

This submenu displays the permissible working range (the
area under the curve) for the entered RCL code and the
telescope status of the current lift or you can have the
working range displayed for all permissible telescoping
statuses.

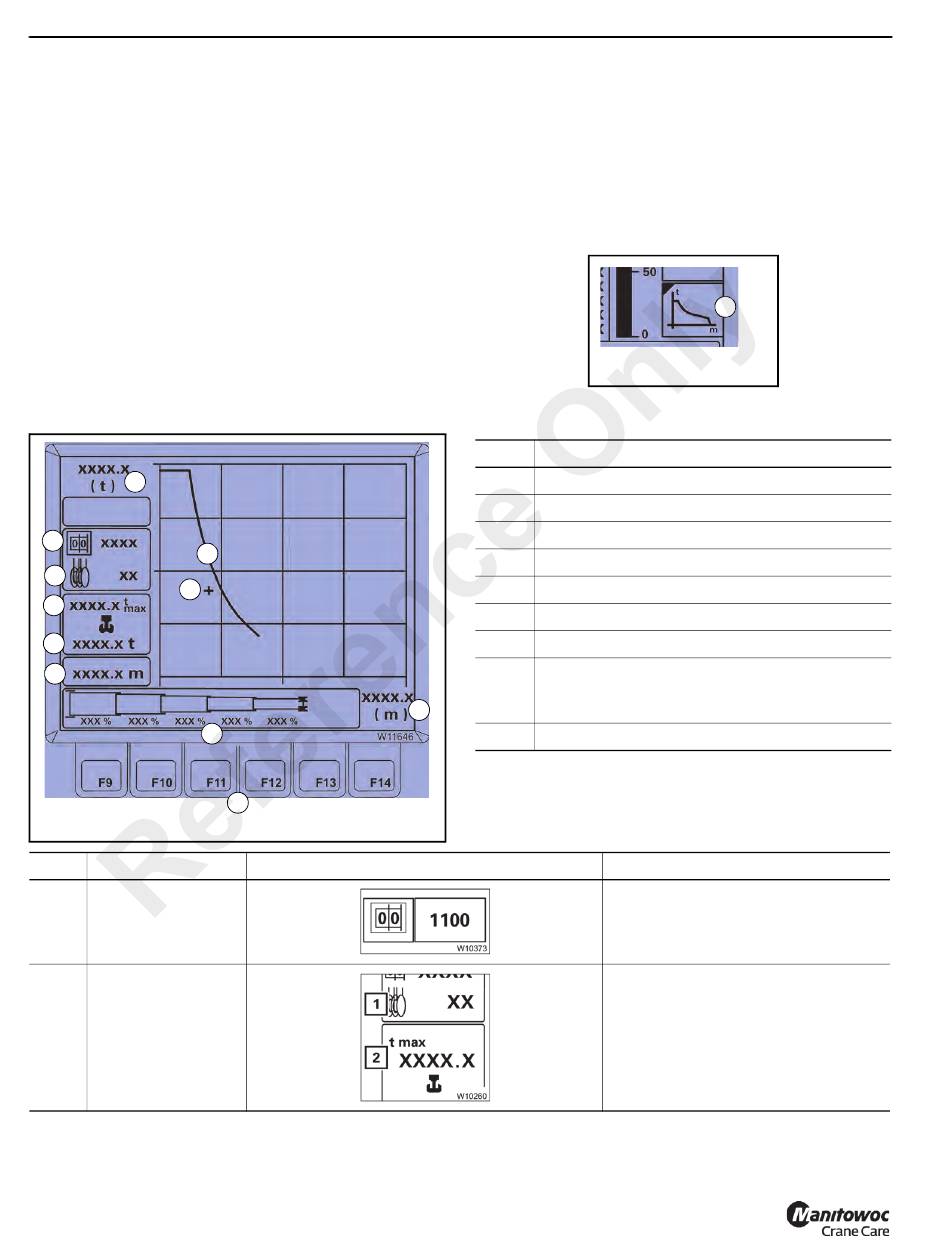

The curve (8) (Figure 3-98) displays the permissible working
range for the entered RCL code (1) and the telescope status
(6).
The working range ends at the maximum possible working
radius (B). Reduction of the working radius increases the
enabled load along the curve (8) up to the maximum possible
load (A). There has to be enough reeving for this load.
Working Range Menu
A
1
8
2
9
3
4
5
6
Item Description
1 RCL code display
2 Reeving display
3-96
7
FIGURE 3-98
Graphic
Published 2-23-2017, Control # 644-00
The maximum load (3) corresponds to the current reeving
(2).
The cross (9) indicates the position in the working range for
the current load (4) and the current working radius (5).
Opening the Submenu
In the lifting capacity submenu, press the F8 button (1)
(Figure 3-97) once.
Item
1 RCL code display
2 Reeving display
3 Maximum load display
4 Current load display
5 Current working radius display
6 Telescope status display
7 Telescope status input buttons, F9-F13
Permissible working range display:
8 (A) Permissible load
(B) Permissible working radius
B
9 Current position display
Refer to the following table for a description of each item
listed above.
RT9150E OPERATOR MANUAL
1
FIGURE 3-97
Description
Explanation
RCL code, four digits.
(1) Required quantity of reeved ropes
for displayed, maximum load (2).
