Manitowoc Grove RT9150E Operator's Manual page 96

OPERATING CONTROLS AND PROCEDURES
Item Description
Working Range
Submenu, page 3-
96
1
Press the F1 button
to open the
submenu.
Monitoring
submenu, page 3-
47
2
Press the F2 button
to open the
submenu.
3-22
Graphic
3
1
5
7
9 10 11
12
1
2
3
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL

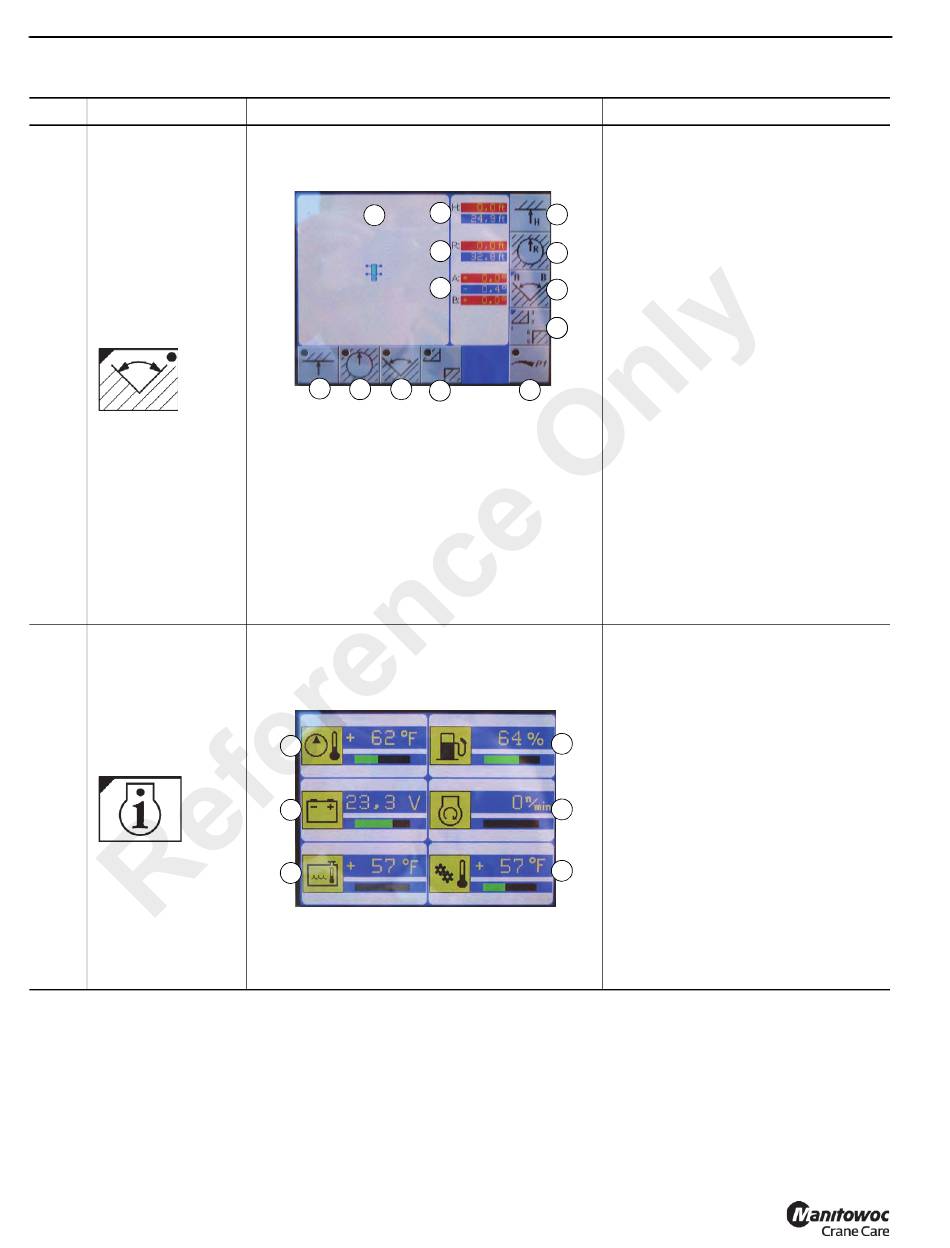

The Working Range Limiter Submenu
is used to enter limit values by moving
the boom to the shutdown points or
entering known limit values manually.
2
Refer to Working Range Submenu,
page 3-96.
4
(1) Working range limiter display
(2) Enter maximum height, F5
6
(3) Maximum height values
8 5
(4) Enter maximum working radius, F6
(5) Maximum/Current working radius
values
13
(6) Enter swing angle submenu, F7
(7) Maximum/Current swing angle
values
(8) Enter objects submenu, F8
(9) Overall height monitoring; on/off, F9
(10) Working radius monitoring; on/off, F10
(11) Swing angle monitoring; on/off, F11
(12) Object monitoring; on/off, F12
(13) Manual input; on/off, F14
The Monitoring Submenu provides an
overview of the following values:
(1) Hydraulic oil temperature
(2) Battery voltage
(3) Coolant temperature
4
(4) Fuel level
(5) Engine speed
(6) Transmission oil temperature.
5
The color of the bar below the values
indicate:
6
Green: Value OK
Yellow: Limit value almost reached
Red: Limit value exceeded (or not
reached)
Refer to RCL Monitoring Submenu,
page 3-86.
Explanation
