Manitowoc Grove RT9150E Operator's Manual page 144

OPERATING CONTROLS AND PROCEDURES

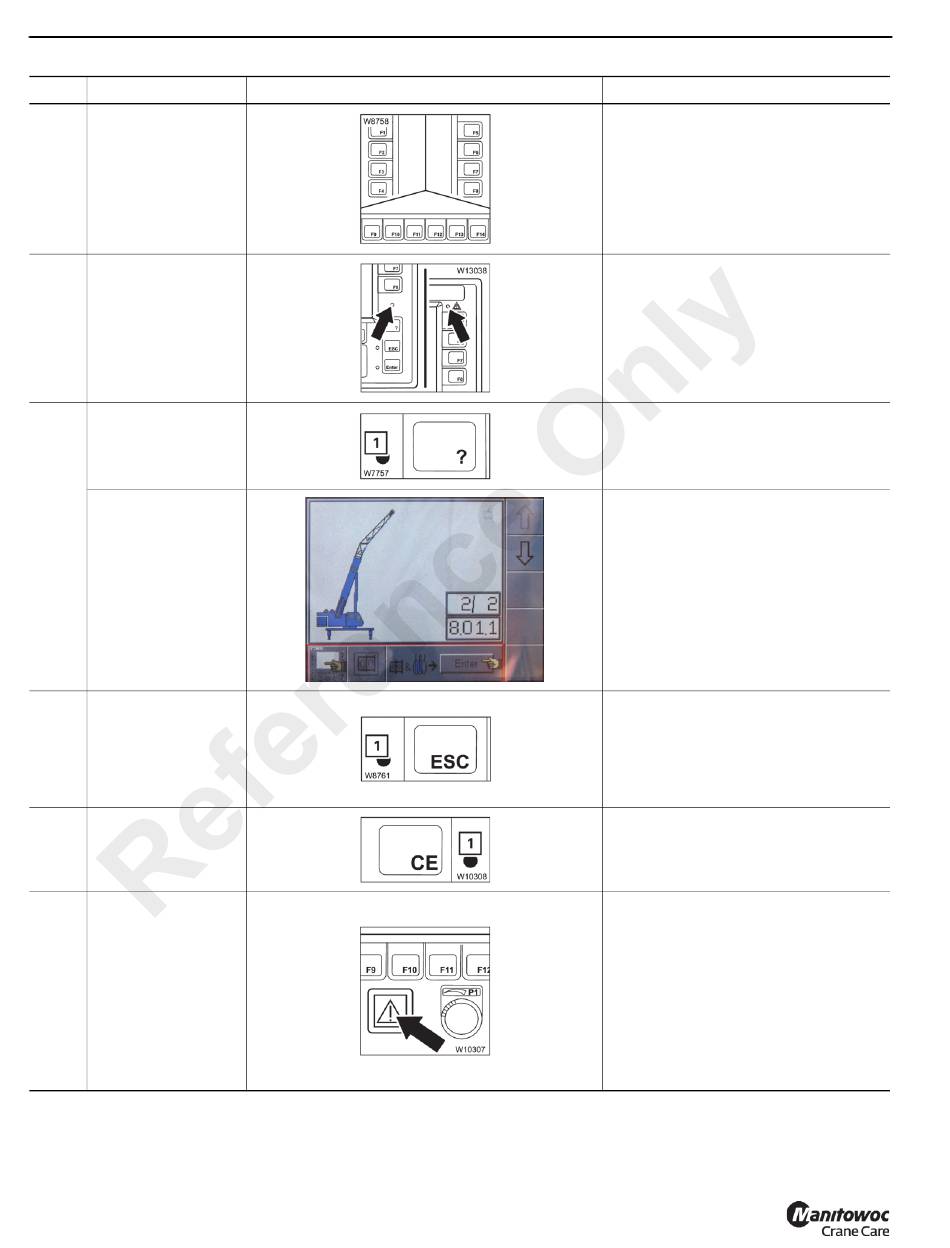

Item Description
4 Buttons F1 to F14
Sensor for
5
1
brightness
Opening the Error
submenu
6
Error Submenu
overview
Exiting the
7 submenu/input
mode
8 Acknowledgement
9 RCL early warning
3-70
Graphic
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
Explanation
The function of buttons F1 to F14 is
shown on the symbol next to or above
the button. After the button is pressed
and released, the function displayed is
executed.
Registers the brightness of the
operating environment. The brightness
of all displays are automatically
adjusted.
Refer to Adjusting the Brightness of the
Display, page 3-57 to manually set the
minimum brightness.
The lamp (1) lights up or flashes.
Press the button once to open the
Error Submenu.
The error submenu is where you
access and acknowledge any errors
that are present.
Refer to Error Submenu, page 3-101.
The lamp (1) lights up.
Press the button once to close the
current submenu, the menu from the
next level up opens.
Input mode is deactivated.
The lamp (1) lights up.
Press the button once: buzzer tone off,
error message acknowledged.
• Flashing: Crane capacity at 90 to
100%: buzzer tone on
• On: Crane capacity about 100%:
buzzer tone on, machine shuts
down. Refer to RCL Shutdown,
page 3-72.
• Off: Crane capacity 0 to 90%
For more information refer to RCL
Early Warning, page 3-72.
