RT9150E OPERATOR MANUAL

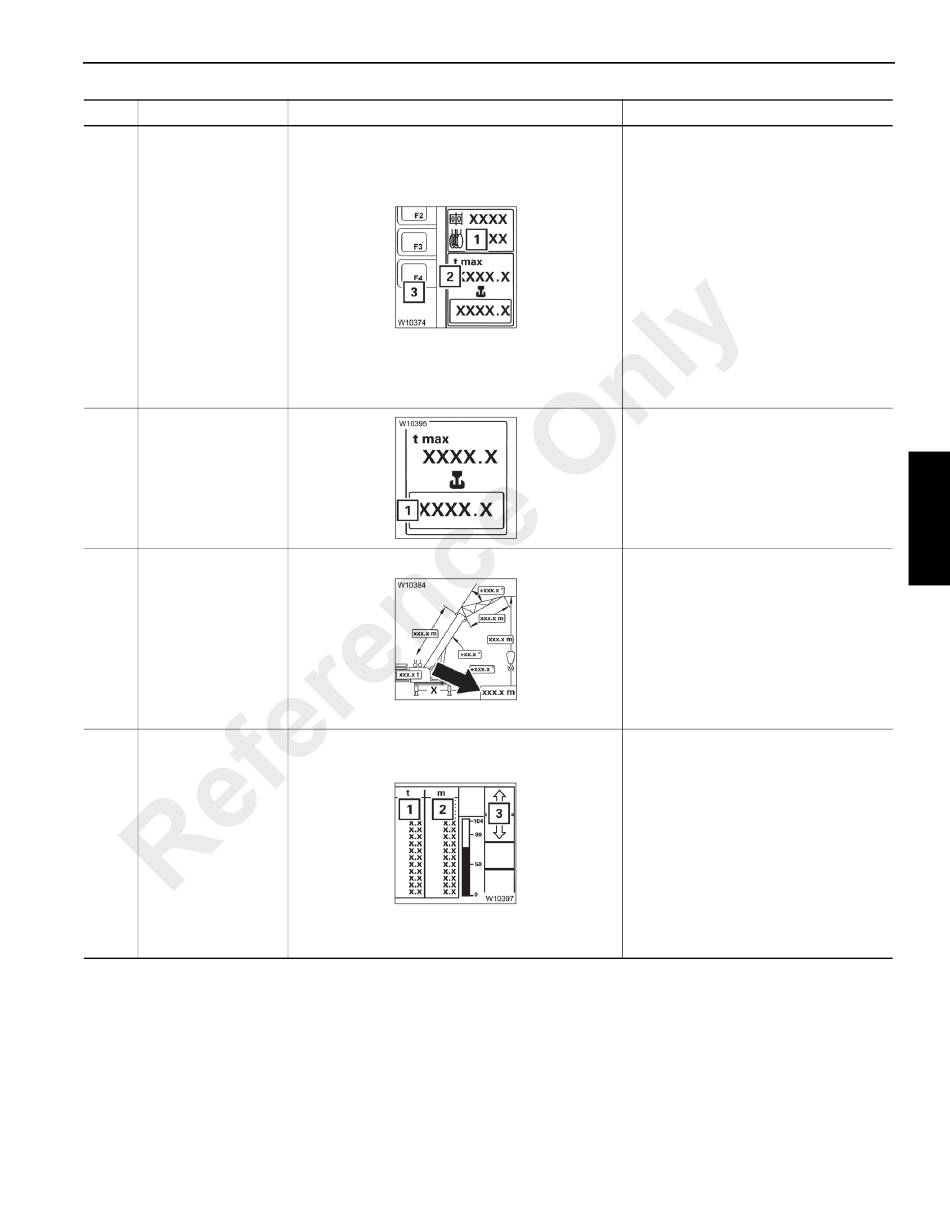

Item Description
Maximum load
3
display
Current load
4
display
Current working
5
radius display
6 Load Chart display
Grove
OPERATING CONTROLS AND PROCEDURES
Graphic
Published 2-23-2017, Control # 644-00
Explanation
The display (2) shows the maximum
load that can be lifted in the current
rigging mode with the current working
radius.
If the maximum load is reduced due to
the entered reeving, the symbol (1) is
red.
In this case, you can briefly display the
possible maximum load:
Press the F4 button (3) once.
The display (2) shows the maximum
possible load that can be lifted with
sufficient reeving according to the
Load Chart.
The display (1) shows the sum of the
payload + lifting gear + hook block in
metric tons (t) or kilo pounds (klbs),
precision ± 5% of actual load.
Example: 55.2 klbs is equal to 55,200
lbs.
Shows the current working radius; the
horizontal distance between the
turntable axis and the hook block axis.
The displayed value is calculated on
the basis of the telescoping and the
main boom or boom extension angle.
The value is displayed either in metres
(m) or feet (ft), depending on the
setting.
Values for displayed RCL code and
displayed telescope status:
(1) Lifting capacity in metric tons (t) or
in kilo pounds (klbs).
(2) Working radius in metres (m) or
feet (ft).
(3) Press to show more values in the
event of longer tables.
The table (1) displays the maximum
load as it relates to the working radius
(2).
3
