OPERATING CONTROLS AND PROCEDURES
If an "error" display (1) (Figure 3-152) is pending, all
operating elements are disabled, refer to Telescope
Mechanism Error Messages, page 3-37

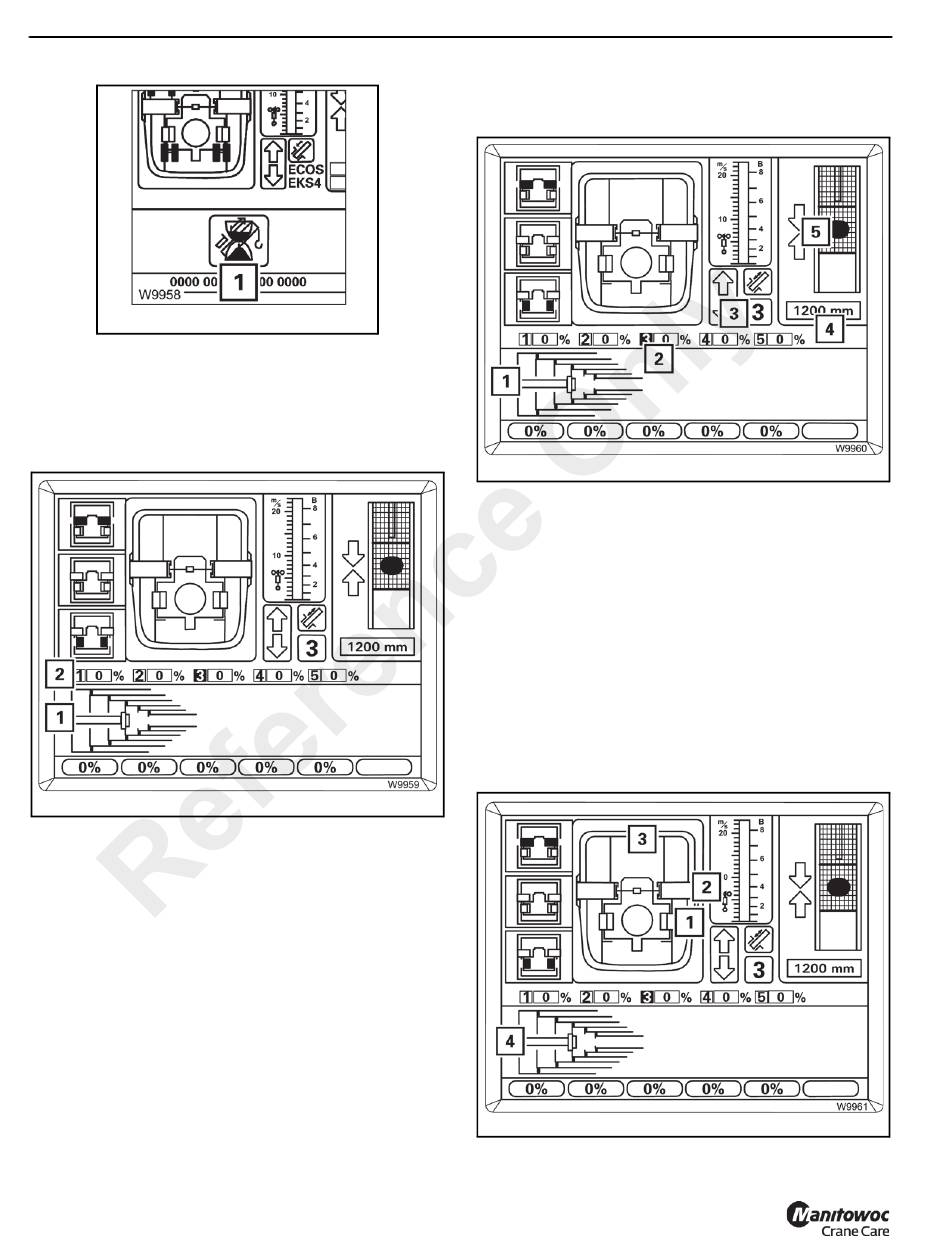

Current Telescope Status
Refer to Figure 3-153.
The display (2) shows the current telescoping in percent for
each telescopic section.
The display (1) shows the current telescope diagram.
3-140
FIGURE 3-152
FIGURE 3-153
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
Position of the Telescope Cylinder
Refer to Figure 3-154.
The display (4) shows how far the telescope cylinder is
extended, e.g. 1,200 mm (3.93 ft).
If the telescope cylinder is near a locking point:
The display (3) shows the corresponding telescopic
section, e.g. telescopic section 3,
the display (2) shows the corresponding telescopic
section number in green,
the display (5) shows one or two arrows, depending on
the distance to the locking point.
The display (1) shows a top view of the current position.
Position of the Locking Pins
Refer to Figure 3-155.
FIGURE 3-154
FIGURE 3-155
