OPERATING CONTROLS AND PROCEDURES

SWING GEAR AND BRAKE SUBMENU

The following information describes the Swing Gear and
B r a k e S u b m e n u , f o r i n f o r m a t i o n o n r o t a t i n g t h e
superstructure refer to Rotating the Superstructure, page 3-
128.
Press F8, the swing gear submenu button (Figure 3-17) in
the main menu to open the submenu. The submenu button
changes depending on which control is selected.

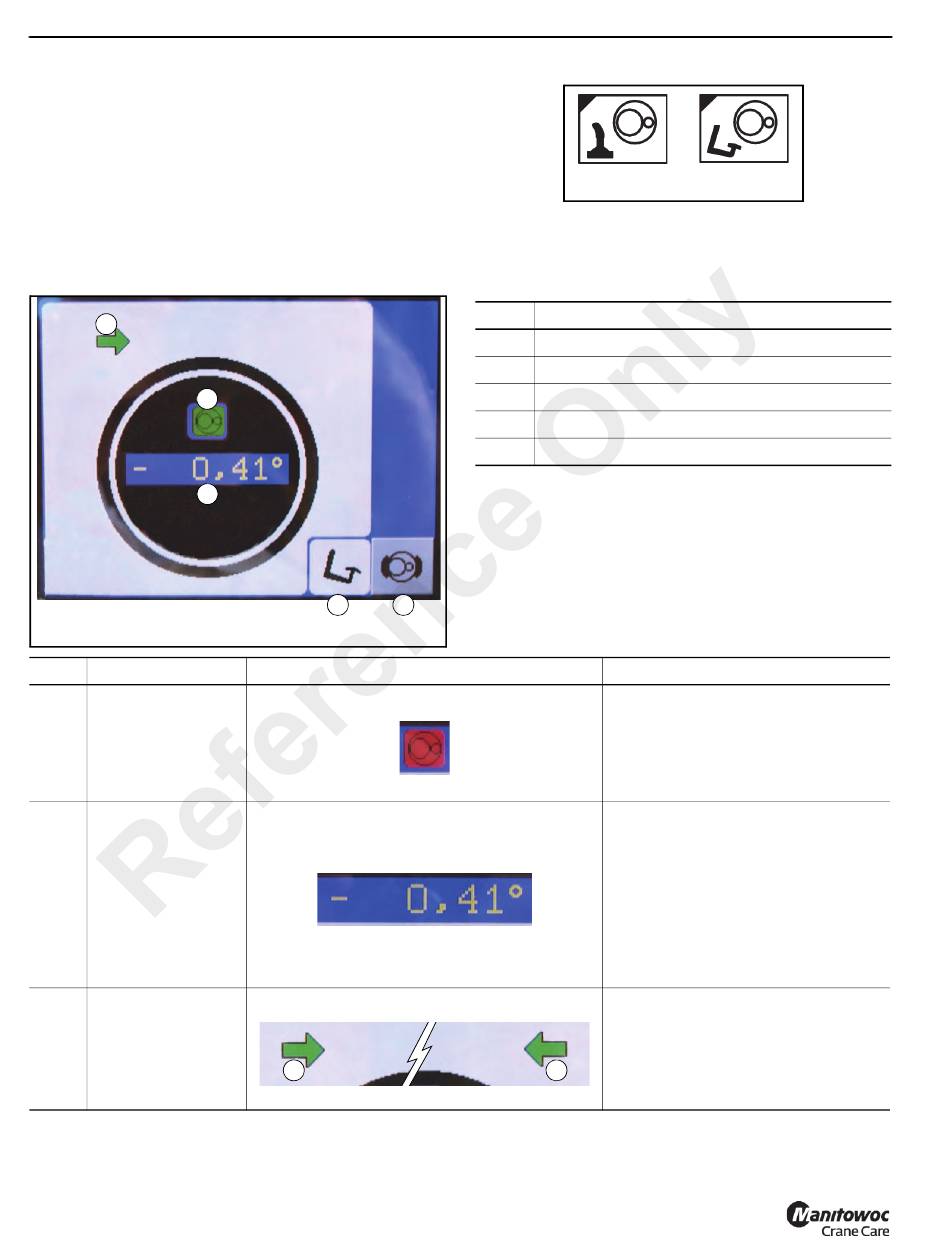

Swing Gear and Brake Submenu

3
1
2
XXXX-X
Item Description
Swing gear
1
indicator
Current swing angle
2
display
Swing gear
3
direction indicators
3-30
4 5
FIGURE 3-18
Graphic
1
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
Item
1 Swing gear on/off indicator
2 Current swing angle display
3 Swing gear direction indicators
4 Swing gear brake control indicator
5 Swing gear brake control selector button, F14
Refer to the following table for a description of each item
listed above.
Swing gear must be on to rotate the
superstructure.
Red: Swing gear switched off
Green: Swing gear switched on,
swing gear motor active.
Indicates, in degrees, the position of
the superstructure:
0°: Directly over-front
180°: Directly over-rear
+0.1 to +180.0°: Turned to the right
from 0°
–0.1 to –179.9°: Turned to the left
from 0°.
The swing gear direction indicators
show which direction the
superstructure needs to rotate when
the auto stop function is active. Either
2
the left (1) or right indicator (2)
displays, both display when at 0°.
OR
FIGURE 3-17
Description
Explanation
