OPERATING CONTROLS AND PROCEDURES

RCL MONITORING SUBMENU

Opening the Submenu
If necessary, open the main menu by pressing the
button. Press the F8 button (1) (Figure 3-91) once.
Monitoring Submenu
1
7
2
3
8
4
9
5
10
6
3-86
Item
11
18
12
13
14
15
16
17
FIGURE 3-92

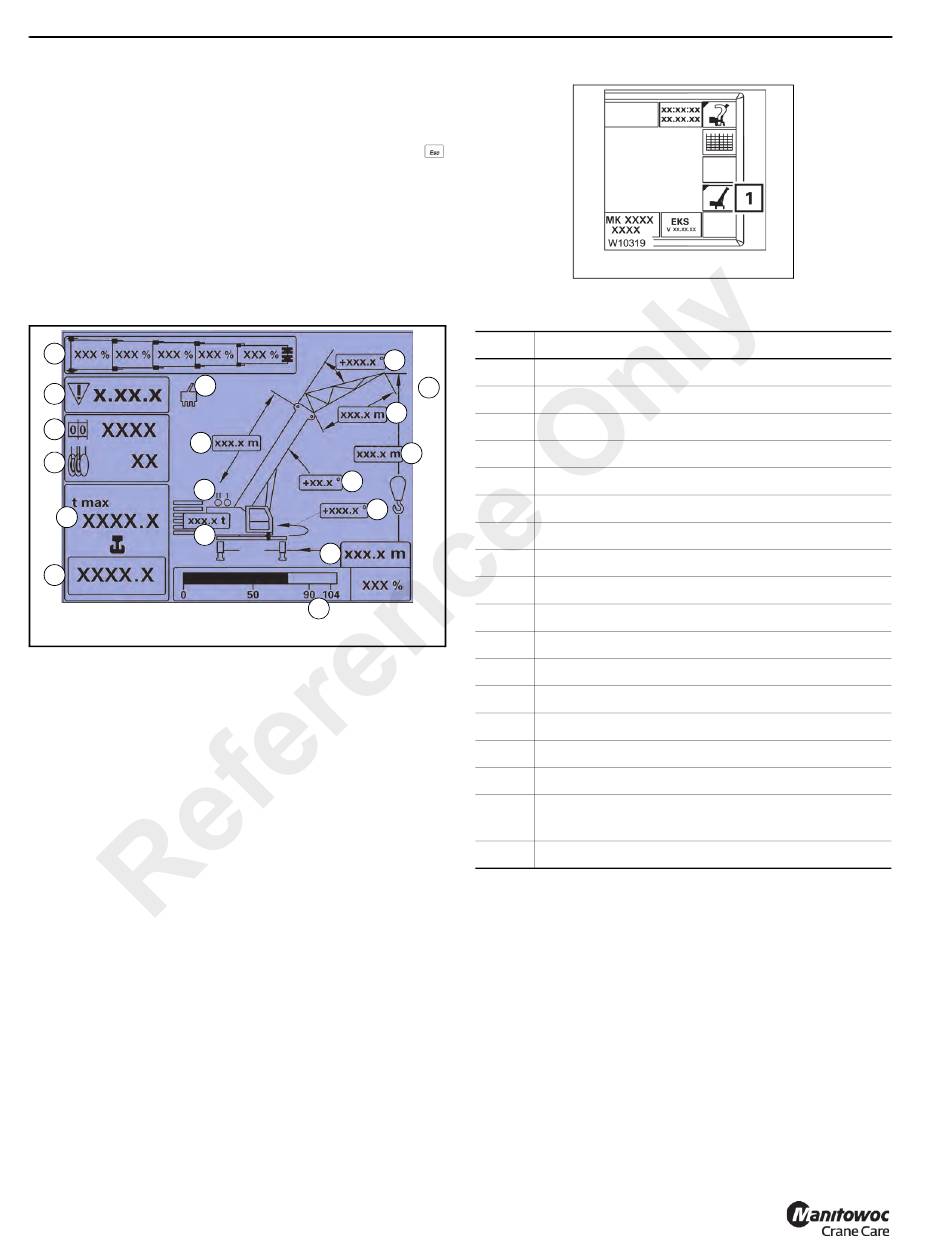

Refer to the following table for a description of each item
listed above.
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL
Description
1 Current telescope status display
2 Error display
3 RCL code display
4 Reeving display
5 Maximum load display
6 Current load display
7 Service symbol display
8 Current main boom length
9 Hoists display
10 Counterweight display
11 Boom extension angle display
12 Current length of boom extension
13 Current overall height
14 Current main boom angle display
15 Current swing angle display
16 Current working radius
Current percent of max. load; bar graph and
17
number.
18 Load Chart submenu, F6
FIGURE 3-91
