OPERATING CONTROLS AND PROCEDURES

TELESCOPE SUBMENU

The following information describes the Telescope
Submenu, for information on extending/retracting the boom
refer to Telescoping the Boom, page 3-132.
Unlocking a telescopic section is required for the telescopic
section to be telescoped. The telescoping cylinder and the
telescopic section cannot be unlocked simultaneously.
Telescoping Submenu
1
5
2
3
4
3-32
14
6
8
7
9
10
10
11
12
13
FIGURE 3-20
Published 2-23-2017, Control # 644-00
RT9150E OPERATOR MANUAL

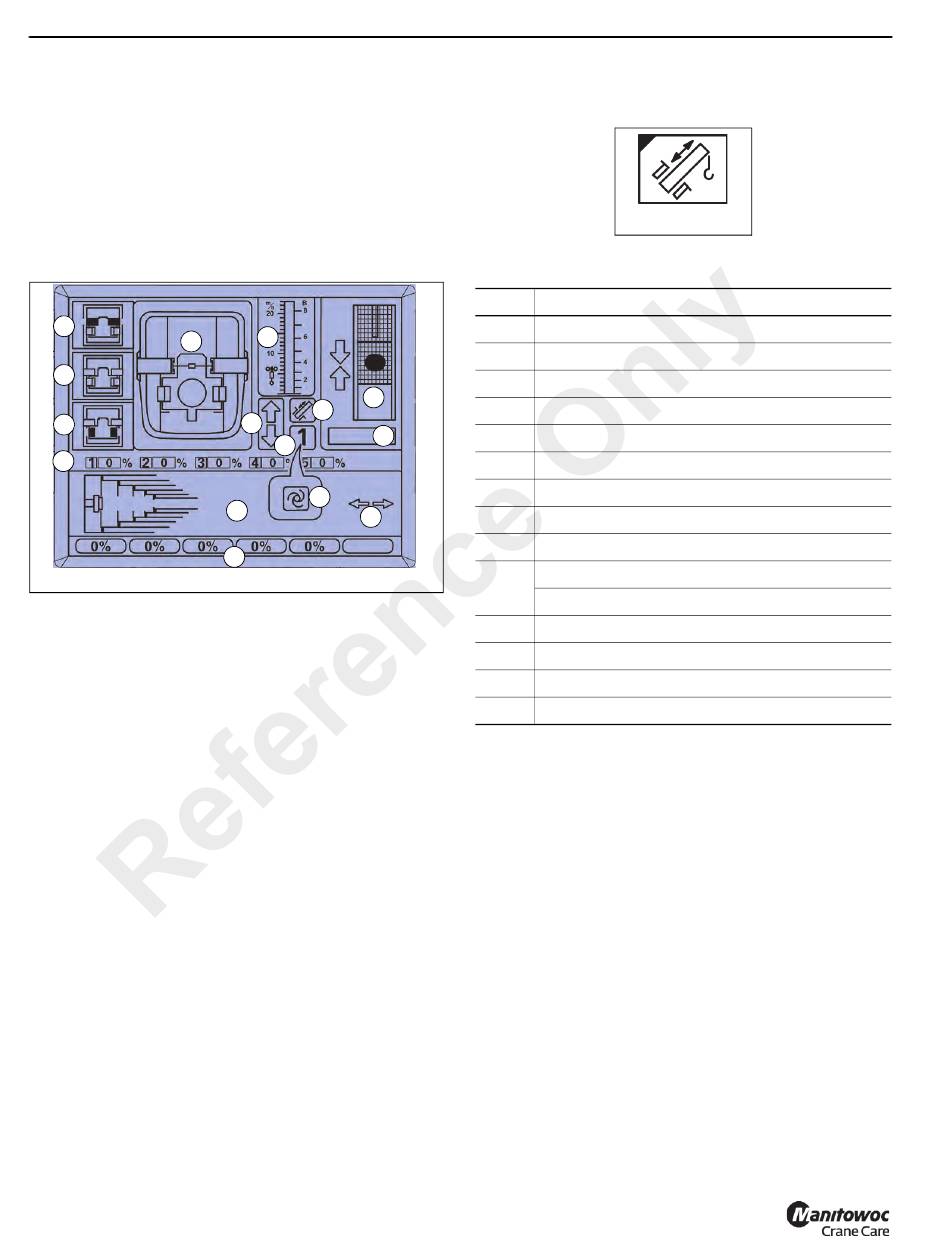

Press the Telescoping submenu button (Figure 3-19) in the
main menu to open this submenu.
FIGURE 3-19
Item
1 Unlock section button, F1
2 Lock button, F2
3 Unlock telescope cylinder button, F3
4 Boom length status
5 Lock status display
6 Locking point alignment
7 Telescope cylinder status
8 Telescope function; on/off
9 Telescope cylinder length
Telescope cylinder location
10
Teleautomation on/off indicator
11 Telescope section display
12 Teleautomation direction indicator
13 Enter the value for teleautomation
14 Anemometer display
The telescope cylinder location (10) indicates which section
the buttons (1-3), lock status (5) and locking point alignment
(6) refer to.
Refer to the following table for a description of each item
listed above.
Description
