Configuring DHCP Service

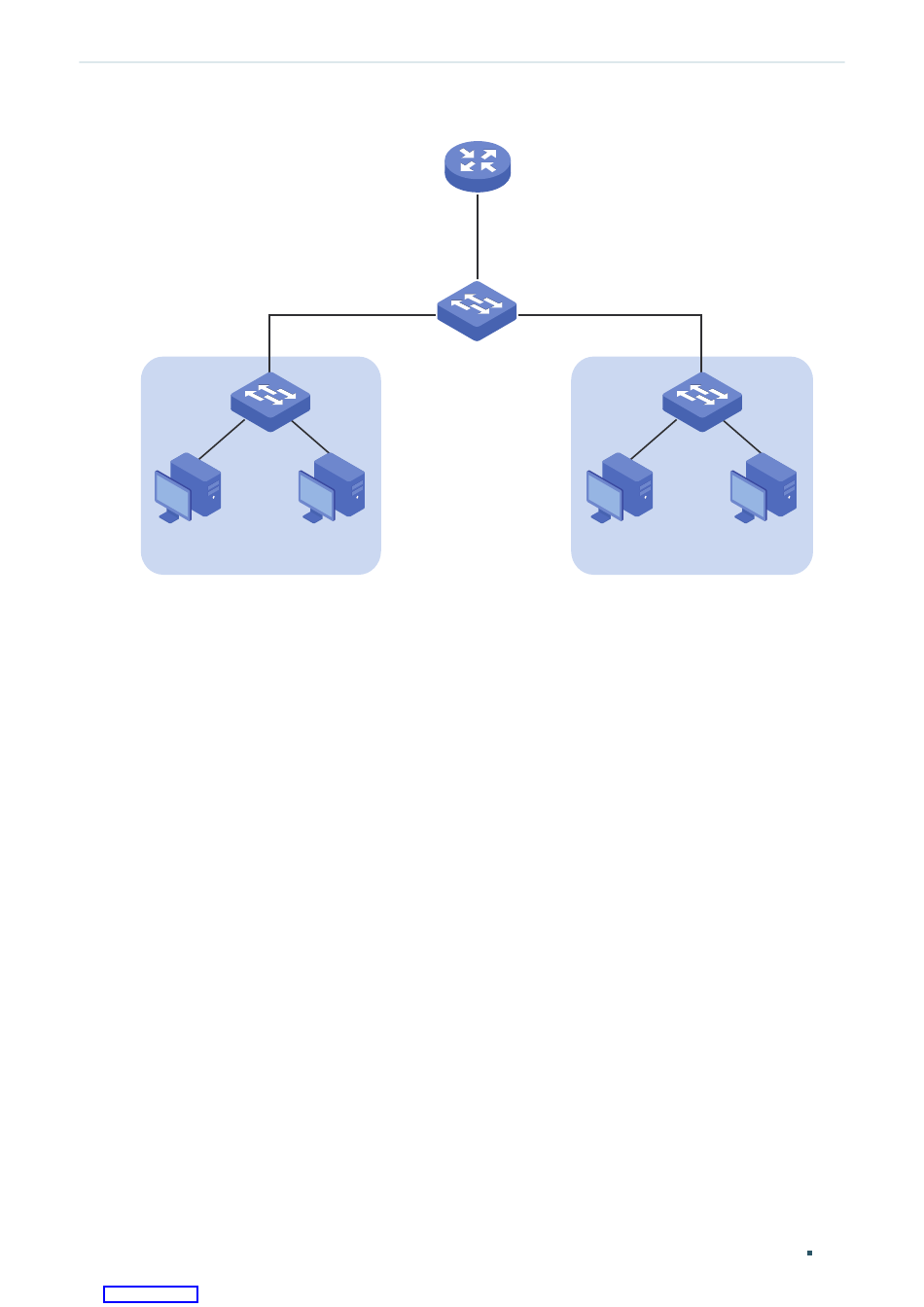

Figure 4-15 Network Topology for DHCP L2 Relay
192.168.10.100-192.168.10.150

4.3.2 Configuration Scheme

To meet the requirements, you can configure DHCP L2 Relay on Switch A to inform the
DHCP server of the group information of each PC, so that the DHCP server can assign IP
addresses of different address pools to the PCs in different groups.
The overview of the configurations are as follows:
1) Configuring Switch A
a. Enable DHCP L2 Relay globally and on VLAN 1.
b. Configure Option 82 on ports 1/0/1 and 1/0/2.
Demonstrated with T2600G-28TS,
configuration procedures in two ways: using the GUI and using the CLI.
2) Configuring the DHCP Server
The detailed configurations on the DHCP server may be different among different
devices. You can refer to the related document that is for the DHCP server you use.
Demonstrated with a Linux ISC DHCP Server,
provides information about how to set its DHCP configuration file.
Downloaded from ManualsNet.com
PC PC
Group 1
search engine
DHCP Server
192.168.10.1/24
Gi1/0/1 Gi1/0/2
Switch A
DHCP Relay
00:00:FF:FF:27:12
"4.3.3 Configuring the DHCP Relay Switch"
"4.3.4 Configuring the DHCP Server"
Configuration Examples
PC PC
Group 2
192.168.10.151-192.168.10.200
User Guide
provides
