Configuring 802.1x

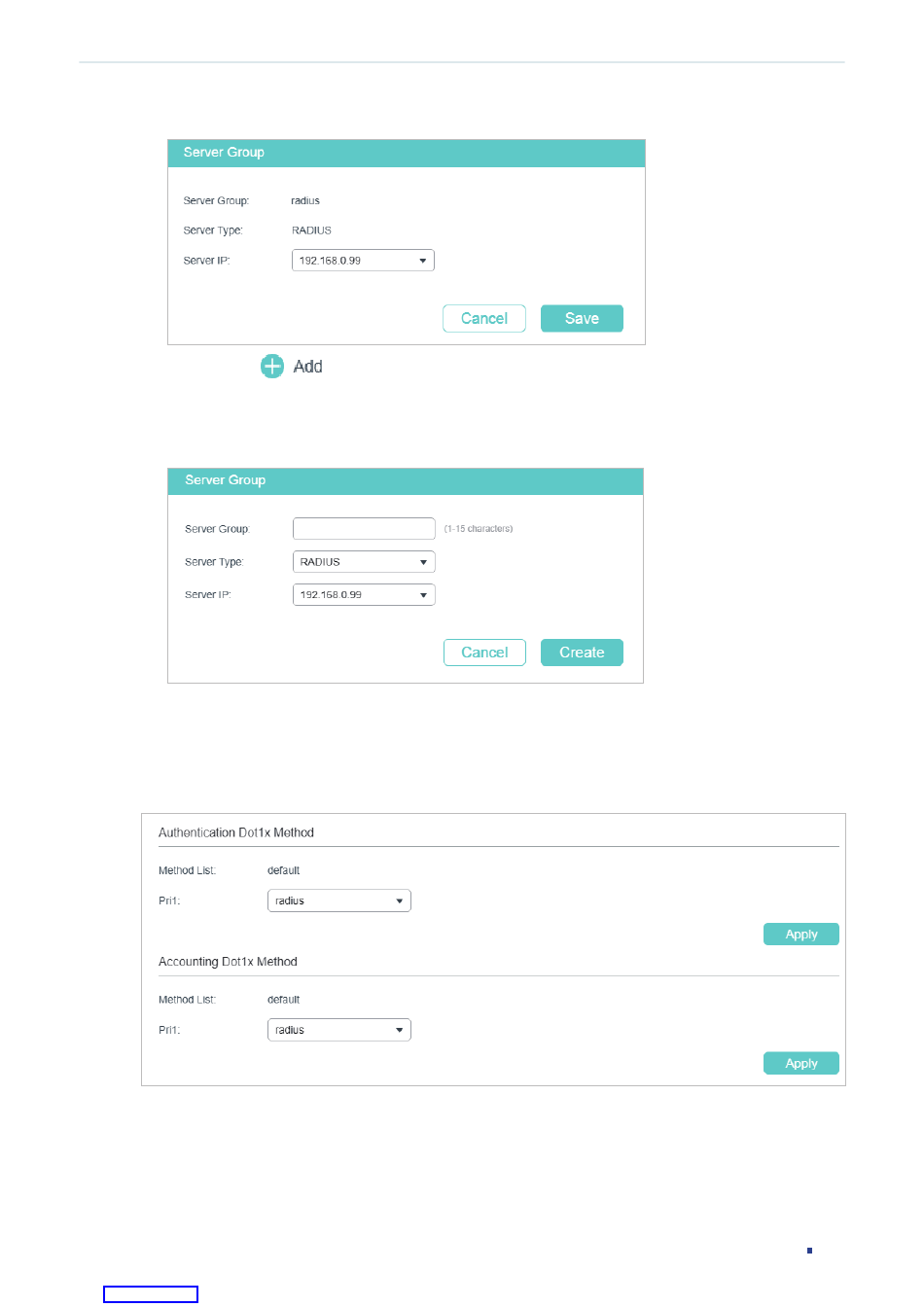

Figure 2-3 Editing Server Group
If you click
group, select the server type as RADIUS and select the IP address of the RADIUS
server. Click Save.
Figure 2-4 Adding Server Group
■ Configuring the Dot1x List
Choose the menu SECURITY > AAA > Dot1x List to load the following page.
Figure 2-5 Configuring the Dot1x List
Follow these steps to configure RADIUS server groups for 802.1x authentication and
accounting:
1) In the Authentication Dot1x Method section, select an existing RADIUS server group
for authentication from the Pri1 drop-down list and click Apply.
Downloaded from ManualsNet.com
, the following window will pop up. Specify a name for the server
search engine
802.1x Configuration
User Guide 558
