Configuring GVRP

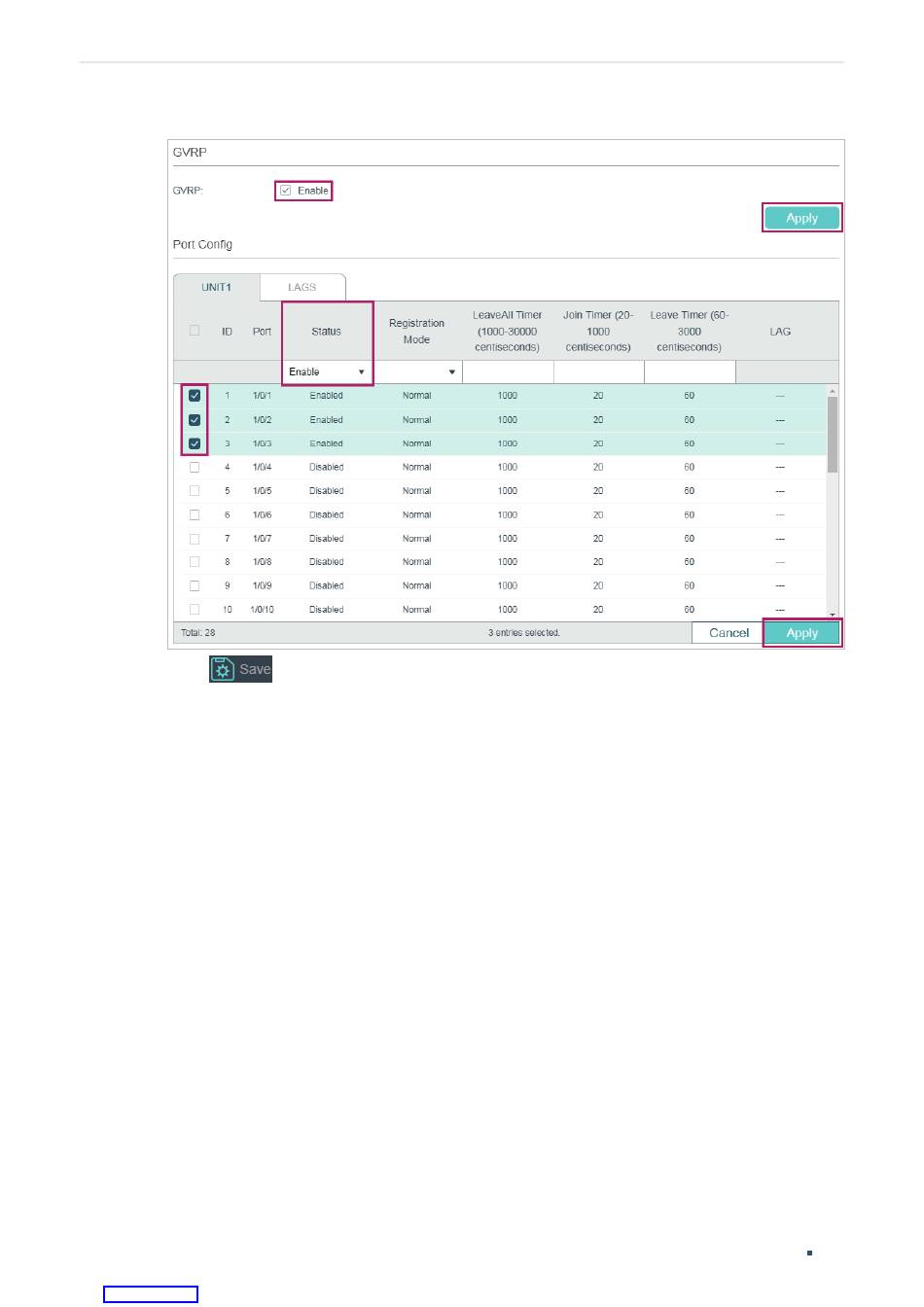

Figure 3-6 GVRP Configuration
2) Click
3.4

Using the CLI

GVRP configuration for Switch 3 is the same as Switch 1, and Switch 4 the same as Switch 2.
Other switches share similar configurations.
The following configuration procedures take Switch 1, Switch 2 and Switch 5 as example.
■ Configurations for Switch 1
1) Enable GVRP globally.
Switch_1#configure
Switch_1(config)#gvrp
2) Create VLAN 10.
Switch_1(config)#vlan 10
Switch_1(config-vlan)#name Department_A
Switch_1(config-vlan)#exit
3) Add tagged port 1/0/1 to VLAN 10. Enable GVRP on the port and set the registration
mode as Fixed.
Downloaded from ManualsNet.com
to save the settings.
search engine
Configuration Example
User Guide 206
