Configuring Layer 2 Multicast

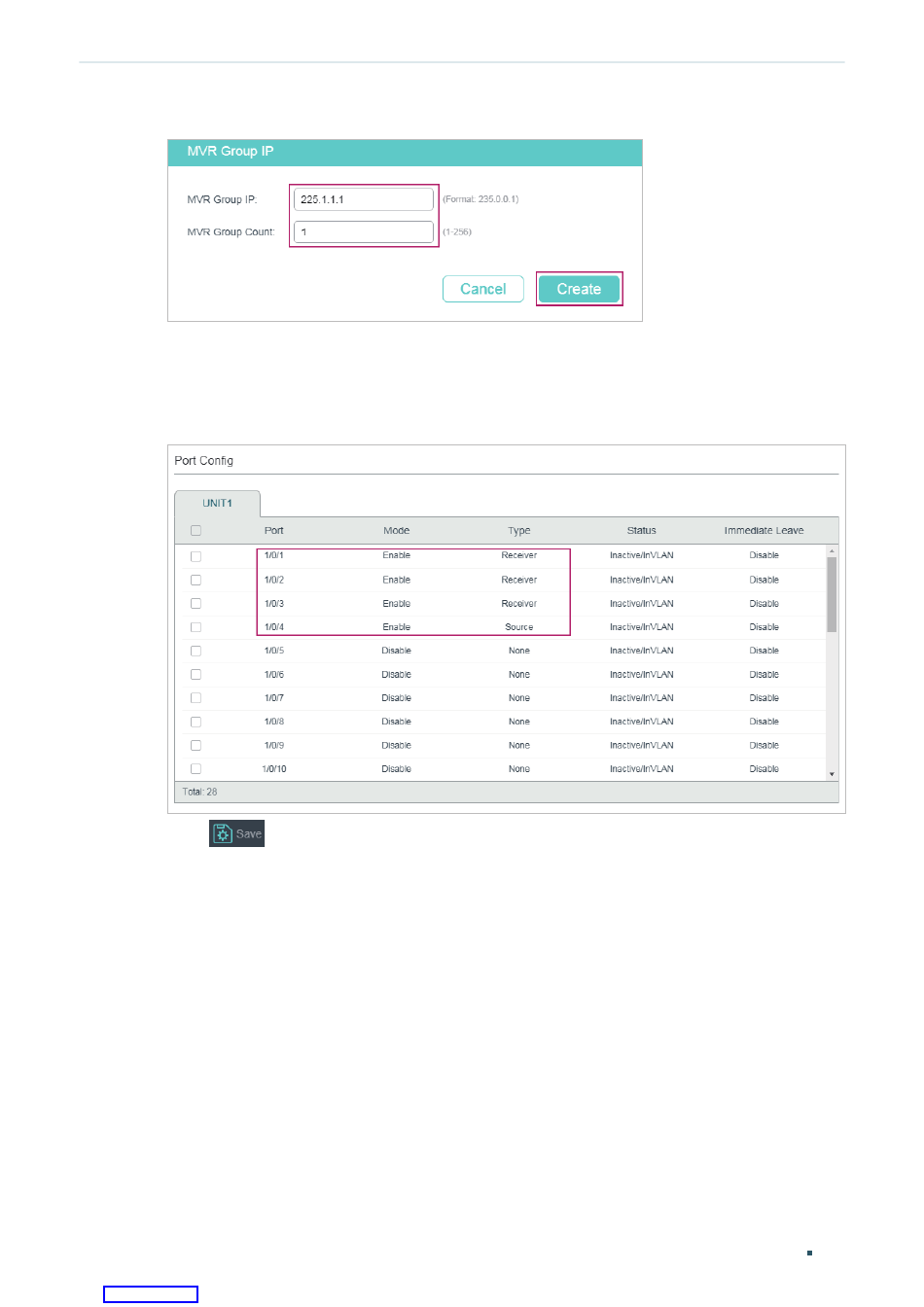

Figure 7-12 Add Multicast Group to MVR
5) Choose the menu L2 FEATURES > Multicast > MVR > Port Config to load the following
page. Enable MVR for port 1/0/1-4. Configure port 1/0/1-3 as Receiver ports and port
1/0/4 as Source port.
Figure 7-13 Configure MVR for the Ports
6) Click

7.2.5 Using the CLI

1) Create VLAN 10, VLAN 20, VLAN 30 and VLAN 40.
Switch#configure
Switch(config)#vlan 10,20,30,40
Switch(config-vlan)#exit
2) Add port 1/0/1-3 to VLAN 10, VLAN 20 and VLAN 30 as untagged ports respectively,
and configure the PVID of port 1/0/1 as 10, port 1/0/2 as 20, port 1/0/3 as 30. Add port
1/0/4 to VLAN 40 as tagged port and configure the PVID as of port 1/0/4 as 40.
Switch(config)#interface fastEthernet 1/0/1
Switch(config-if)#switchport general allowed vlan 10 untagged
