Configuring Spanning Tree

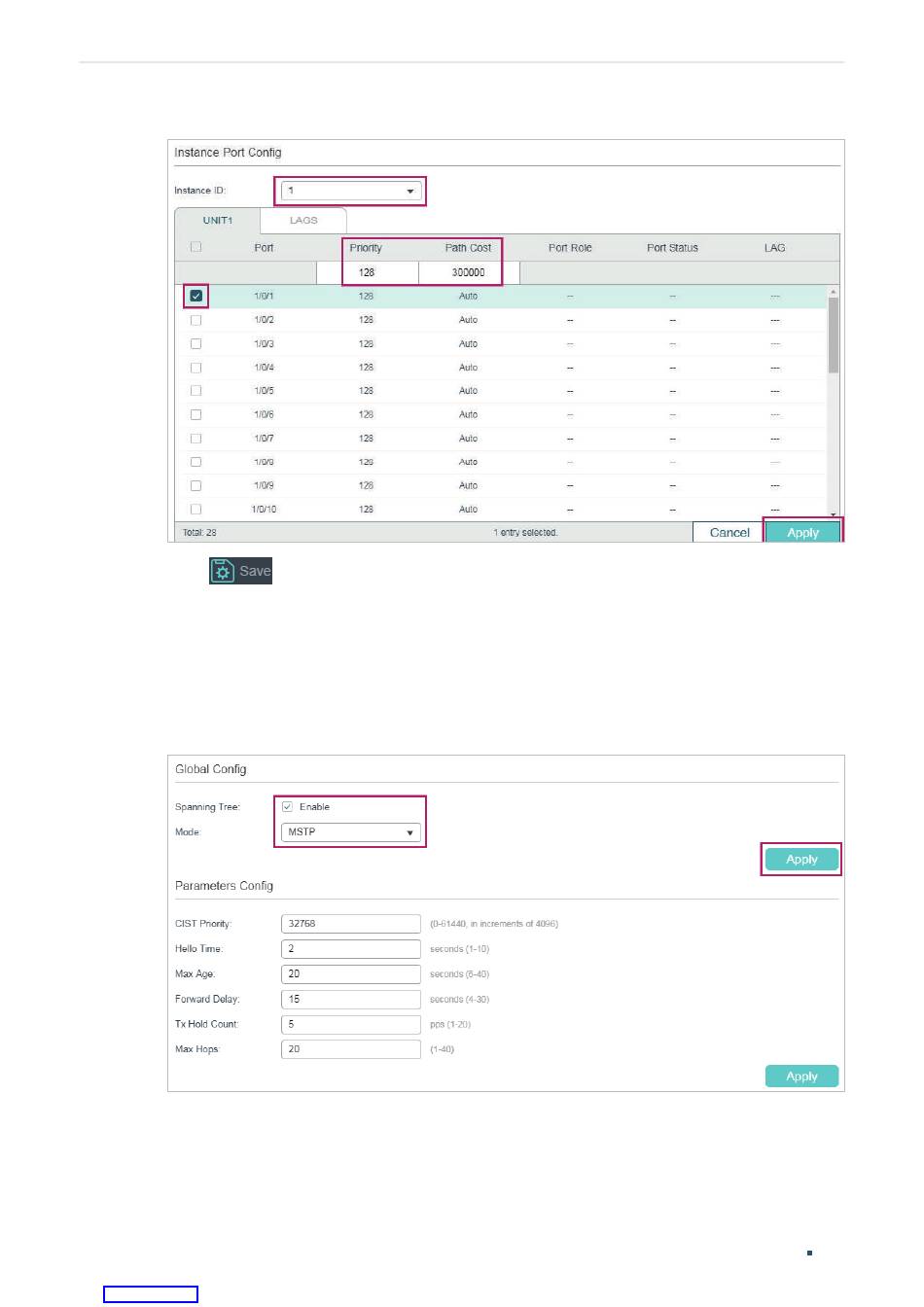

Figure 5-7 Configure the Path Cost of Port 1/0/1 In Instance 1
6) Click
■ Configurations for Switch B
1) Choose the menu L2 FEATURES > Spanning Tree > STP Config > STP Config to load
the following page. Enable MSTP function globally, here we leave the values of the other
global parameters as default settings. Click Apply.
Figure 5-8 Configure the Global MSTP Parameters of the Switch
2) Choose the menu L2 FEATURES > Spanning Tree > STP Config > Port Config to load
the following page. Enable the spanning tree function on port 1/0/1 and port 1/0/2. Here
we leave the values of the other parameters as default settings. Click Apply.
Downloaded from ManualsNet.com
to save the settings.
search engine
Configuration Example for MSTP
User Guide 346
