Configuring Spanning Tree
3

MSTP Configurations

To complete the MSTP configuration, follow these steps:
1) Configure parameters on ports in CIST.
2) Configure the MSTP region.
3) Configure the MSTP globally.
4) Verify the MSTP configurations.
Configuration Guidelines
■ Before configuring the spanning tree, it's necessary to make clear the role that each
switch plays in a spanning tree.
■ To avoid any possible network flapping caused by MSTP parameter changes, it
is recommended to enable MSTP function globally after configuring the relevant
parameter.
3.1

Using the GUI

3.1.1 Configuring Parameters on Ports in CIST

Choose the menu L2 FEATURES > Spanning Tree > Port Config to load the following
page.

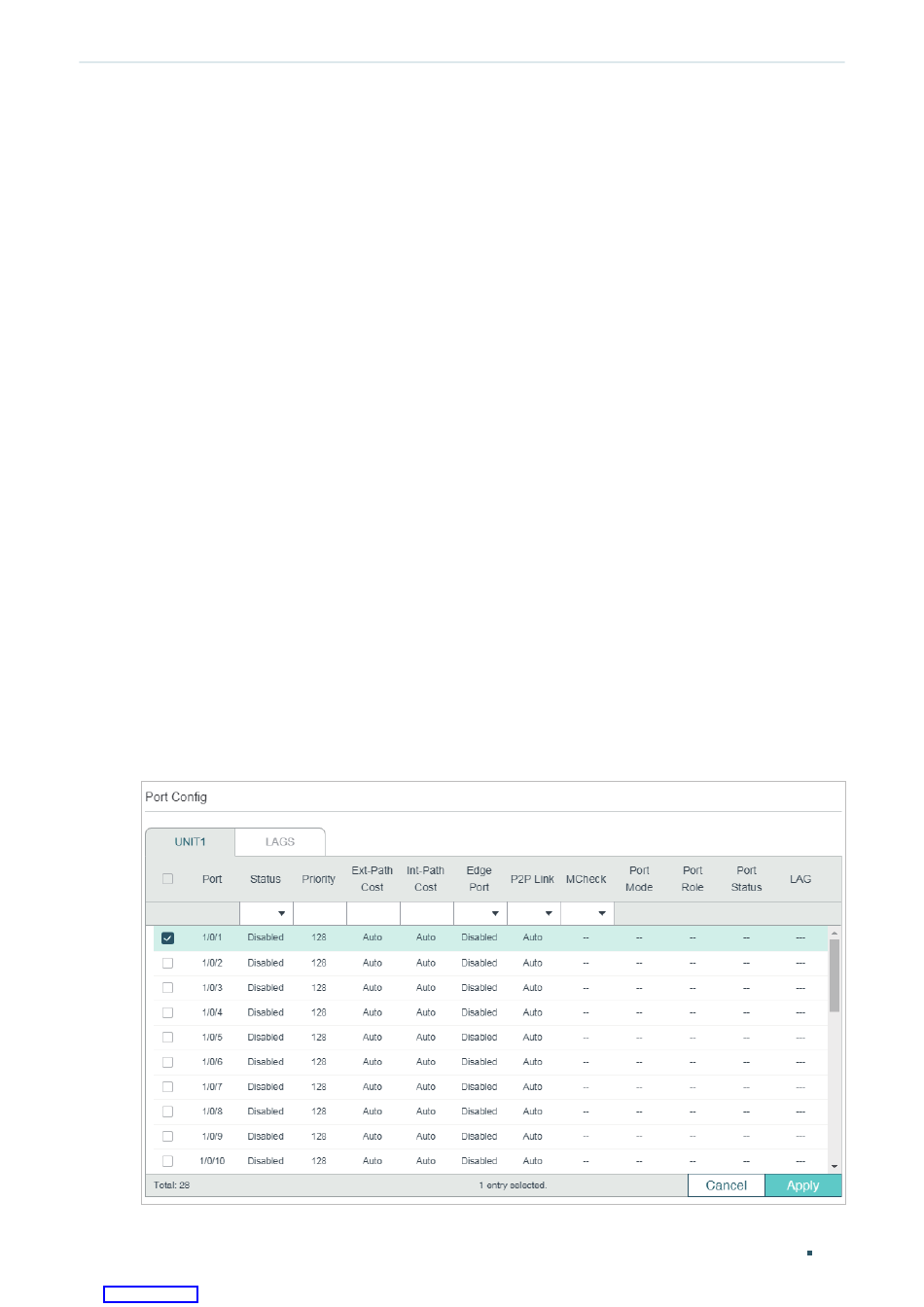

Figure 3-1 Configuring the Parameters of the Ports
