Configuring Spanning Tree
2) Choose the menu L2 FEATURES > Spanning Tree > STP Config > Port Config to load
the following page. Enable the spanning tree function on port 1/0/1 and port 1/0/2. Here
we leave the values of the other parameters as default settings. Click Apply.

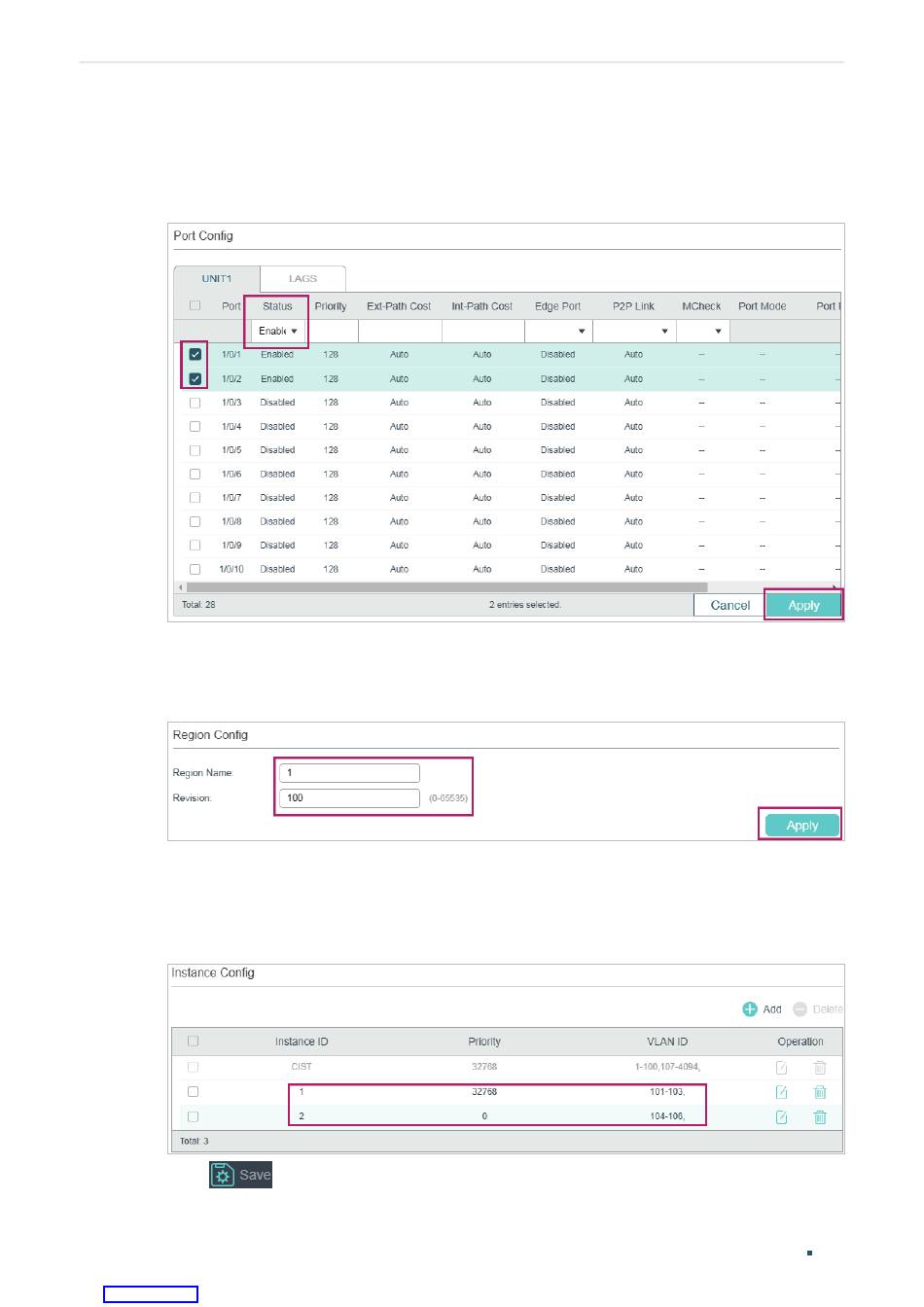

Figure 5-14 Enable Spanning Tree Function on Ports
3) Choose the menu Spanning Tree > MSTP Instance > Region Config to load the
following page. Set the region name as 1 and the revision level as 100. Click Apply.
Figure 5-15 Configuring the Region
4) Choose the menu L2 FEATURES > Spanning Tree > MSTP Instance > Instance Config.
Click Add, map VLAN101-VLAN103 to instance 1 and set the priority as 32768; map
VLAN104-VLAN106 to instance 2 and set the priority as 0. Click Create.
Figure 5-16 Configuring the VLAN-Instance Mapping
5) Click
Downloaded from ManualsNet.com
to save the settings.
search engine
Configuration Example for MSTP
