Summary of Contents for TP-Link TL-SG2218

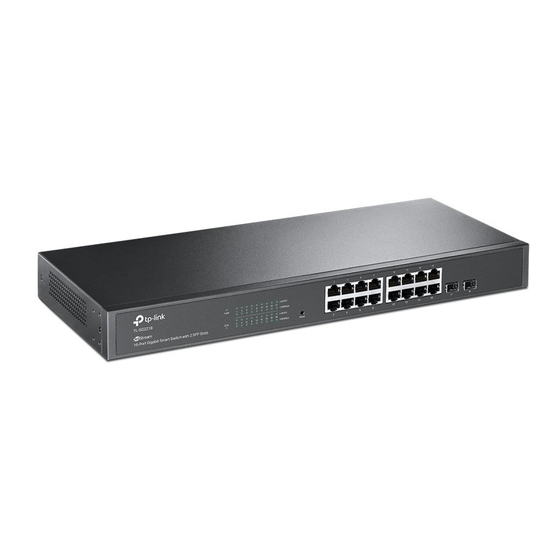

- Page 1 Business Networking Solution Installation Guide Jetstream Smart Switch...
- Page 2 Remind to take notice. The note contains the helpful information for a better use of the product. Related Document The User Guide and CLI Reference Guide of the product are provided on Download Center. To obtain the latest product information, visit the official website: https://www.tp-link.com.
-
Page 3: Table Of Contents
Contents Chapter 1 Introduction ——————————— 01 Product Overview ............01 Appearance ...............01 Chapter 2 Installation ——————————— 05 Package Contents ............05 Safety Precautions ............05 Installation Tools ..............07 Product Installation ............07 Chapter 3 Connection ——————————— 09 Ethernet Port ..............09 SFP Slot ................09 Verify Installation .............09 Power On ................10 Initialization ................10 Chapter 4 Configuration ——————————... -
Page 4: Introduction
QoS and IGMP snooping/filtering optimize voice and video application. Link aggregation increases aggregated bandwidth, optimizing the transport of business critical data. SNMP, RMON, WEB and CLI Login bring abundant management policies. TP-Link JetStream Smart Switch integrates multiple functions with excellent performance, and is friendly to manage, which can fully meet the need of the users demanding higher networking performance. - Page 5 Reset 10/100/1000 Mbps SFP Slot Switch Button RJ45 Port LEDs For TL-SG2218 Indication On: The switch is powered on. Off: The switch is powered off or power supply is abnormal. Flashing: Power supply is abnormal. Flashing: The switch works properly.
- Page 6 JetStream Smart Switch For TL-SG2210MP/TL-SG2218P/TL-SG2428P/TL-SL2428P/TL-SG728P Indication On: The switch is powered on. Off: The switch is powered off or power supply is abnormal. Flashing: Power supply is abnormal. Flashing: The switch works properly. On or Off: The switch works improperly. Green: All the fans work properly.
- Page 7 PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed lightning protection measures, go to https://www.tp-link.com/support, search the model number of your switch and go to the product Support web page, refer to the Lightning Protection Guide from the Related Documents: https://www.tp-link.com/us/configuration-guides/lightning_protection_guide/.
-
Page 8: Chapter 2 Installation
JetStream Smart Switch Chapter 2 Installation Package Contents Make sure that the package contains the following items. If any of the listed items is damaged or missing, please contact your distributor. One Power Cord One Switch Two mounting brackets, eight Installation Guide screws and four rubber feet *Images are for demonstration only... - Page 9 JetStream Smart Switch Keep the equipment room at an appropriate level of temperature and humidity. Too much or too little humidity may lead to bad insulation, leakage of electricity, mechanical property changes, and corrosion. High temperatures may accelerate aging of the insulation materials, significantly shortening the service life of the device.
-
Page 10: Installation Tools
Use the signal SPD (Surge Protective Device) when wiring outdoor. ■ Note: For detailed lightning protection measures, go to https://www.tp-link.com/support, search the model number of your switch and go to the product Support web page, refer to the Lightning Protection Guide from the Related Documents: https://www.tp-link.com/us/configuration-guides/lightning_protection_guide/. - Page 11 JetStream Smart Switch Figure 2-1 Desktop Installation Feet Bottom of the Device Notch Rack Installation ■ To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below: 1. Check the efficiency of the grounding system and the stability of the rack. 2.
-
Page 12: Chapter 3 Connection
JetStream Smart Switch Chapter 3 Connection Ethernet Port Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shows. Figure 3-1 Connecting the RJ45 Port RJ45 Port RJ45 Cable SFP Slot The following figure demonstrates the connection of SFP module to an SFP slot. Figure 3-2 Inserting the SFP Module SFP Slot... -
Page 13: Power On
JetStream Smart Switch Power On Plug the negative connector of the provided power cord into the power socket of the device and plug the positive connector into a power outlet as the following figure shows. Figure 3-3 Connecting to Power Supply Note: The figure is to illustrate the application and principle. -
Page 14: Chapter 4 Configuration
Note: TL-SG2428P, TL-SL2428P, TL-SG2210MP, TL-SG2218P and TL-SG2218 suppor t both Standalone Mode and Controller Mode. When the switch is changed from Standalone Mode to Controller Mode, you should reconfigure the switch. TL-SG728P only supports Standalone Mode. -
Page 15: Controller Mode
JetStream Smart Switch Controller Mode Controller Mode applies to the large scale network with mass devices. All devices can be centrally configured and monitored via Omada Hardware Controller or Omada Sof t ware Controller. Note: Before the following configurations, make sure the switch can access the internet. When using Omada Software/Hardware Controller, make sure the switch and the controller are in the same subnet. - Page 16 Make sure that Cloud Access is enabled on your controller and your controller has been bound with your TP-Link ID. On the Omada Controller’s web page, go to Settings > Cloud Access to enable Cloud Access and bind your TP-Link ID. If you have set it up in the quick setup, skip this step.
-
Page 17: Appendix A Troubleshooting
JetStream Smart Switch Appendix A Troubleshooting Q1. What could I do if I forgot the username and password of the switch? Press the Reset button for at least 5 seconds to reset the system. The system will be reset to the factory default settings, and the default login user name and password are both admin. -
Page 18: Appendix B Specifications
TL-SG2210MP: PWR, SYS, PoE MAX, FAN, Speed or PoE, SFP1, SFP2, PoE, Speed LEDs TL-SG2218P: PWR, SYS, PoE MAX, FAN, PoE, Speed TL-SG2218: PWR, SYS, 1000Mbps, Link/Act TL-SG2428P/TL-SG728P: PWR, SYS, FAN, PoE MAX, Speed, PoE, 100Base- TX/1000BASE-X 0 °C to 50 °C (32 °F to 122 °F) (For TL-SG2210MP/TL-SG2218P/TL-SG2428P/TL-... - Page 19 The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/ UK declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016.
- Page 20 To ask questions, find answers, and communicate with TP-Link users or engineers, please visit https://community.tp-link.com to join TP-Link Community. For technical support, the user guide and other information, please visit https://www.tp-link.com/support, or simply scan the QR code. © 2023 TP-Link 7106510303 REV4.8.0...
