Installation Guide

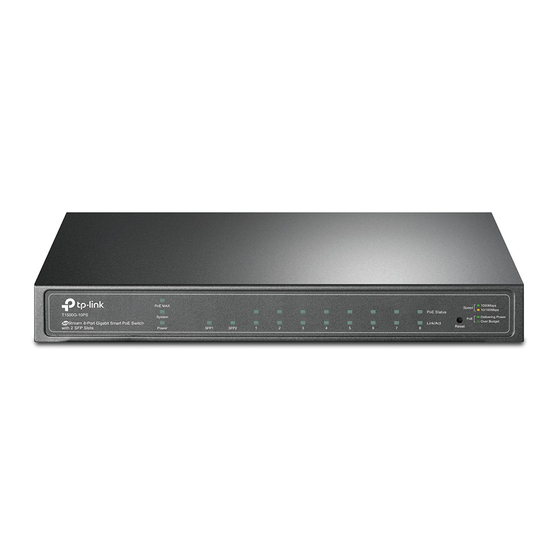

JetStream 8-Port Gigabit Smart PoE Switch with 2 SFP Slots
T1500G-10PS (TL-SG2210P)

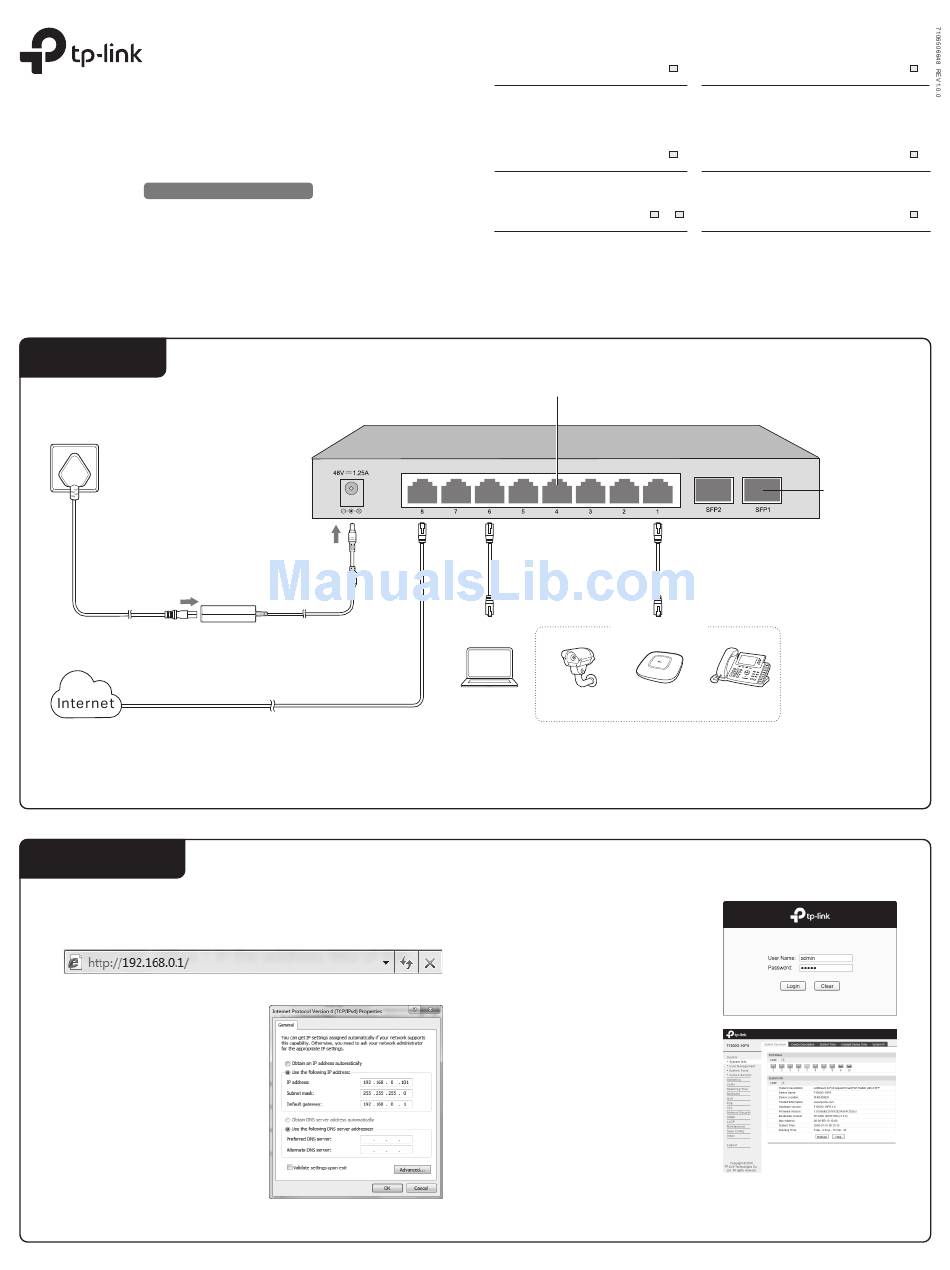

Connection
3
AC Power Cord
2
DC Power Adapter
Note:
1. PoE ports can also connect to non-PoE devices, but only transmit data.
2. Maximum PoE power is 15.4W for each PoE port and 53W for all PoE ports.
Configuration
1. To access the GUI of the switch, open a browser and type the default
management address http://192.168.0.1 in the address field of the
browser, then press the Enter key.
Note:
To log in to the switch, the IP address
of your PC should be set in the same
subnet as that of the switch. The IP
address is 192.168.0.x ("x" is any
number from 2 to 254). Subnet Mask
is 255.255.255.0. For details, please
refer to Appendix B in the User Guide
on the resource CD.
1
PC
LED Explanation
PoE MAX
PoE MAX
On:
46W≤Total power supply<53W
Flashing:
Total power supply keeps≥
46W more than 2 minutes
Off:
Total power supply<46W
Power
Power
On:
Power on
Off:
Power off
SPF1/SFP2
SPF1
SPF2
On(Green):
Connected to a 1000Mbps
device
On(Yellow):
Connected to a 100Mbps
device
Flashing:
Transmitting/receiving data
Ethernet Ports (1-8)
PoE Devices
IP Camera
AP
2. Enter admin for both the User Name
and Password in the lower case
letters. Then click the Login button
or press the Enter key.
3. After a successful login, the main
page will appear as follows, and you
can click the menu on the left side
to configure the corresponding
functions.
Note:
For more details about how to configure the switch, see the User Guide on
the resource CD.
Link/Act (port 1-8)
On(Green):
Connected to a 1000Mbps device
On(Yellow):
Connected to a 10/100Mbps
device
Flashing:
Transmitting/receiving data
System
Flashing:
System running normally
On/Off:
System running abnormally
PoE Status (port 1-8)
On:
Providing PoE power
Flashing:
Current-overload/Short-circuit/
Connected to a Non-standard PD/Power
exceeded the user-defined value
Off:
Not providing PoE Power
SFP Slots
IP Phone
Link/Act
System
PoE Status
